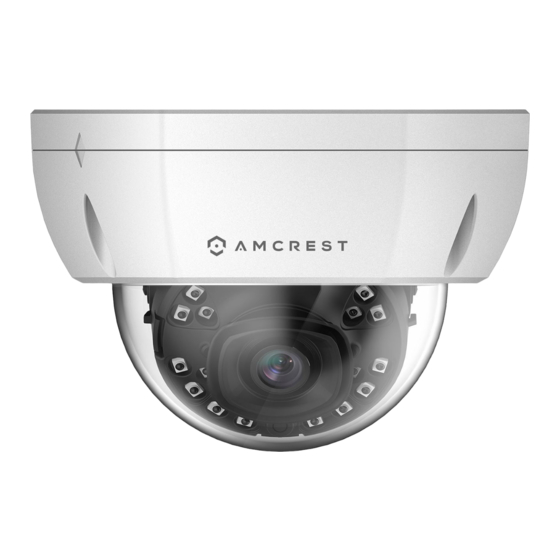

Amcrest IP8M-2493EW / IP8M-2493EB
8MP UltraHD Vandal Dome POE Camera
User Manual
Version 1.0.4
th
Revised December 20
, 2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IP8M-2493EW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Amcrest IP8M-2493EW

Summary of Contents for Amcrest IP8M-2493EW

  • Page 1 Amcrest IP8M-2493EW / IP8M-2493EB 8MP UltraHD Vandal Dome POE Camera User Manual Version 1.0.4 Revised December 20 , 2018...

  • Page 2: Table Of Contents

    4.2 How to Setup the Camera ............................9 4.3 App Setup ................................10 4.4 Desktop Access Setup ............................. 15 4.5 Amcrest Cloud Desktop Setup ..........................16 4.6 Web Access Setup (AmcrestView.com) ........................16 4.7 Remote Web Access Setup ............................. 17 5 Operation and Interface ...............................

  • Page 3: Welcome

    Email Amcrest Customer Support support@amcrest.com Important Security Warning To keep your Amcrest camera secure and prevent unauthorized access, please make sure to follow the steps below: • Always make sure that your camera has the latest firmware as listed on www.amcrest.com/firmware...

  • Page 4: Features And Specifications

    1.1 Overview Amcrest provides an excellent digital surveillance product that can be useful to a wide variety of users. The camera connects to any router and uses an internet connection to allow the user to access all of its functionality from many internet connected devices.

  • Page 5: Device Overview

    • Cloud Storage Functionality This camera can record video and audio streams to the Amcrest Cloud service to enable long-term storage for recordings. Amcrest Cloud also allows the user to easily find and download recorded video for playback from any internet connected PC or Mac computer.

  • Page 6: Connection & Installation

    To access the reset button and to adjust the camera angle, use a Torx/Hex wrench to open the camera assembly by removing the 3 screws. For reference, a Torx/Hex screwdriver tip looks like this: 3 Connection & Installation This section provides information about the connection and installation of your camera. 3.1 Connection Guide The camera initially should be connected via the following method: Once connected to a PC or mobile device you will be able to configure the device to your network.

  • Page 7: Microsd Card Installation Guide

    Note: Due to specific hardware limitations within your camera it is important to note that these devices will not be able to automatically pan/tilt or pivot in either the app or via the web UI on a computer. For this reason, it is imperative to make sure to mount the cameras properly and position them as efficiently as you can to the areas you wish to monitor.

  • Page 8: Basic Wiring Overview

    Note: You will need to access the camera’s motherboard to insert the microSD card. 1. Remove the lens cover for the camera with the supplied wrench tool to access the motherboard. 2. Locate the provided microSD card slot on the motherboard and slide the clasp back to open. 3.

  • Page 9: Camera Access Setup

    If you are setting up your camera for the first time, or you are setting up your camera for mobile viewing, please follow the instructions as outlined on section 4.3. Using the Amcrest Cloud app or Amcrest View app on your smartphone or tablet, you can view your camera live from anywhere, and access features such as taking snapshots, creating recordings, and more.

  • Page 10: App Setup

    1. Download and open the Amcrest Cloud app from the App Store or Play Store. Note: Connect your mobile device to the same network that your camera is on. 2. Register for an Amcrest Cloud account. To register click on Sign Up and fill out the form to complete registration.
  • Page 11 3. Tap on Add Camera 4. Give your camera a name (Ex. Garage, Living Room, Kitchen, etc.) and tap Next to continue. 6. If you are adding a new camera that does not have a 5. Scan the QR code on the back/side/bottom of set password the app will automatically detect that a the camera or manually enter the camera’s serial...
  • Page 12 Make sure your camera is plugged into a power source and your Ethernet cable is connected from the camera to your router. • Make sure your camera and mobile device are on the same network during setup. Download and open the Amcrest View Pro app from the App Store or Play Store.
  • Page 13 2. Open the app and tap on the + symbol in the 3. Tap on Add Device to add a new device to your middle of the screen to begin adding your PoE app. device. 4. Tap on PoE Camera Next, select a connection type.
  • Page 14 Enter a password between 8 and 32 characters and Amcrest View Pro app. For more information about Amcrest View Pro and its functionalities visit confirm the password. Press OK to continue. amcrest.com/support For more information about Amcrest View Pro and its functionalities visit amcrest.com/support...

  • Page 15: Desktop Access Setup

    Note: Make sure the camera and the PC are on the same network before proceeding. Use one of the following web browsers: Safari, Internet Explorer, or Google Chrome extension. To easily connect to the camera’s interface, install and run the Amcrest IP Config tool.You can download the IP Config software from www.amcrest.com...

  • Page 16: Amcrest Cloud Desktop Setup

    Amcrest cameras can sync with Amcrest Cloud; a service that stores recorded video streams to enable long-term storage. Amcrest Cloud also allows the user to easily find and download recorded video for playback from any internet connected PC or Mac computer.

  • Page 17: Remote Web Access Setup

    Click the Connections menu item on the left hand menu and ensure that the HTTP port has changed. Click the DDNS menu item on the left hand menu, pick Amcrest DDNS from the drop down box, click the checkbox next to Server Type, and then click the Save button on the bottom right.
  • Page 18 4.7.2 Port Forwarding Remote Web Access Setup Port Forwarding is an alternative method to setting up remote access for Amcrest cameras. This method should only be used if the UPnP/DDNS Remote Access method did not work. Below is a step-by-step walkthrough that details how to setup the camera for Remote Web Access using Port Forwarding: Login to your camera, open the main menu then go to Setup ->...

  • Page 19: Operation And Interface

    For example, if the DDNS domain name is http://abc123456789.AmcrestDDNS.com and your HTTP Port is 33333, the URL would be http://abc123456789.AmcrestDDNS.com:33333 23. Enter in login details into the username and password fields and click login. If the process above is not working, please contact Amcrest Support via one of the following options: Visit http://amcrest.com/contacts...
  • Page 20 Button Function Name Function Description Optical/Digital Zoom Click this button to activate the zone selection function. This allows the user to use the mouse to select a zone to zoom in on. Snapshot Click this button to take a screenshot of the live feed. The picture is saved at the path specified in Setup ->...

  • Page 21: Playback

    Width/Height Ratio This button allows the user to change the width/height ratio for the live feed. The options are Original and Adaptive. Original uses the aspect ratio of the stream’s set resolution, and adaptive fits the feed to the aspect ratio of the monitor display the feed is being viewed on.
  • Page 22 This allows the user to select files for download. Select the files by clicking the checkbox next to each file, and then click to download the files to the PC. 5.3. Cloud Storage The Cloud Storage tab allows the user quick access to the Amcrest Cloud website.

  • Page 23: Setup

    At this website (amcrestcloud.com) users can register for new accounts as well as view or modify existing accounts. For more information on Amcrest Cloud visit: amcrest.com/support 5.4 Setup The Setup tab allows the user to change different camera settings. Below is a screenshot of the setup tab:...
  • Page 24 5.4.1. Camera This menu section allows the user to change different camera settings for video, audio, and to manage image profiles. 5.4.1.1 Configuration This menu allows the user to configure image profiles for normal, day, and night usage. Below is a screenshot that shows the Configuration tab in the Configuration menu item: Below is an explanation for each of the fields on the Configuration tab in the Configuration menu item: 5.4.1.1.1.
  • Page 25 video, distortion may occur if the white balance is not accurate. Please note the video may not be clear if the value is too low. The recommended value ranges from 40 to 60. • Sharpness: This slider is used to adjust the sharpness of the video. The value ranges from 0 to 100. The larger the value is, the clearer the edges are and vice versa.
  • Page 26 ▪ Gain Priority - This setting will maximize the gain for the ideal exposure. Low Noise Basically turns up the ISO to the best setting without sacrificing exposure timing. ▪ Shutter Priority - This setting will maximize the fastest shutter speed and will sacrifice the gain in return. ▪...
  • Page 27 5.4.1.1.4. WB This dropdown box allows the user to select the white balance for the video feed. The different options are Auto, Sunny, Night, Outdoor, and Customized. Selecting customized opens a menu that allows the user to set specific red or blue values.
  • Page 28 • Color - always represents picture in color, does not use IR or black and white mode. Performs poorly in dimly lit areas unless you are using the Starlight series cameras. • Auto - Uses D&N Sensitivity setting to change between color mode and infrared and black and white mode. •...
  • Page 29 • Profile: This dropdown box allows the user to select which profile to modify. The 3 options are Day, Night, and Normal. • Mode: This dropdown box allows the user to select whether to turn the indication light on or off. To reset to default settings, click the Reset Defaults button.
  • Page 30 Full Time means that the system sticks to one profile the entire time it is running. Schedule allows the user to dictate which times of the day are designated for the day profile and the night profile. To reset to default settings, click the Reset Defaults button. To refresh the page, click the Refresh button. To save the settings, click the Save button.
  • Page 31 • Watermark Character: This field allows the user to set the watermark’s text. The default string is Digital CCTV. The maximum length is 85 characters. This string can only include numbers, characters, and underscores. Sub Stream is a lower quality stream that allows the feed to take up less resources and bandwidth when streaming. The Main Stream and the Sub Stream have the same fields.
  • Page 32 The menu on the left allows the user to select which overlay to modify. Privacy Masking, Channel Title, Time, and Text Overlay can all be modified in this menu. For Privacy Masking, the radio button enables or disables the feature. To set a privacy mask, click one of the boxes in the live view window, and position or resize it as needed.
  • Page 33 Below is an explanation for each of the fields on the Path tab in the Video menu item: • The Live Snapshot field allows the user to select where to save live snapshots to. Click the Browse button to select a different destination folder.
  • Page 34 Below is an explanation for each of the fields on the Audio menu: Enable: This checkbox allows the user to enable audio recording. Encode Mode: This dropdown box allows the user to select what audio format the audio should be recorded in. Sampling Frequency: This dropdown box allows the user to select a sampling frequency for the audio.
  • Page 35 5.4.2.1 TCP/IP The TCP/IP menu item has two tabs: TCP/IP and P2P. 5.4.2.1.1 TCP/IP TCP/IP stands for Transmission Control Protocol/Internet Protocol and it is the language/protocol that allows communication between internet connected devices, whether on a local network, or a on the Internet at large. This screen allows for TCP/IP settings to be modified for the camera to establish a connection to the network.
  • Page 36 The P2P settings screen is where users can use a QR code to connect their smartphone or tablet to the camera. This feature needs to be enabled for use with the Amcrest View app, Amcrest Cloud, or AmcrestView.com. Below is a...
  • Page 37 • QR Code: This image is a Quick Response (QR) code. By scanning this image using the Amcrest View app, this camera can establish a connection with the app. To reset to default settings, click the Reset Defaults button. To refresh the page, click the Refresh button. To save the settings, click the Save button.
  • Page 38 For purposes of this guide, AmcrestDDNS will be used. AmcrestDDNS is a free DDNS service provided by Amcrest, and it must be renewed every year. A renewal reminder email will be sent to the email entered in the username field below.
  • Page 39 5.4.2.4 IP Filter This screen allows for the filtering of IP addresses, either blocking them, or granting them access to the camera. This feature helps make the camera more secure by limiting remote access only to approved users. Below is a screenshot of the IP Filter screen: Below is an explanation of fields on the IP Filter settings screen: •...
  • Page 40 Below is an explanation of fields on the SMTP (Email) settings screen: • SMTP Server: SMTP stands for Simple Mail Transfer Protocol. This field allows the user to enter the SMTP server used by the email service. • Port: This field allows the user to enter the port that corresponds to the selected SMTP server. •...
  • Page 41 Interval: This field allows the user to define, in seconds, how long the system should wait between sending emails. This prevents multiple emails from being sent out. • Keep Alive: This checkbox allows the user to enable a function to periodically check in with the SMTP server to ensure it can connect correctly.
  • Page 42 The fifth column shows the External Port used by that service to establish communication from the router to the internet. To edit this, click the pencil button in the modify column for that line item. The sixth column shows the status of the protocol. If the protocol was mapped successfully, this field will say “Mapping Succeeded”.
  • Page 43 Below is an explanation of the fields in the Multicast settings screen: • Enable: This checkbox allows the user to enable Multicast functionality. • Multicast Address: This field allows the user to enter a multicast address. • Port: This field allows the user to enter a multicast port. To reset to default settings, click the Reset Defaults button.
  • Page 44 Before you create certificate or download certificate, from main window->Setup->Network >Connection, set the HTTPS port values and then check the box to enable HTTPS For more information on how to setup HTTPS in the web user interface visit https://www.youtube.com/watch?v=gkjlaf-Iuso 5.4.3 Event This menu section allows the user to change different settings for triggering events.
  • Page 45 Below is an explanation of the fields on the Motion Detect tab: Enable: This checkbox enables motion detection for the camera. Schedule: Clicking this button opens a weekly schedule that can be used to set times.
  • Page 46 Click and drag to set motion detection for certain days of the week. Also, periods of motion detection can be set for each day and enabled using the period settings on the bottom half of the screen. There are a total of 6 periods that can be set.
  • Page 47 • Record: This checkbox allows the user to enable the camera to record video when a motion detection alarm is triggered. • Record Delay: This field specifies in seconds how long the delay between alarm activation and recording should be. •...
  • Page 48 o Click and drag to set video tampering for certain days of the week. Also, periods of video tampering can be set for each day and enabled using the period settings on the bottom half of the screen. There are a total of 6 periods that can be set.
  • Page 49 ● Enable: This checkbox enables an audio detection alarm for the camera. Enable Intensity Change: This checkbox enables intensity change for the camera audio. o Sensitivity is the amount of change required to increase the audio detected by a percentage. The lower the sensitivity, the more audio variance is required to trigger an alarm. ●...
  • Page 50 o Click and drag to set audio tampering for certain days of the week. Also, periods of audio detection can be set for each day and enabled using the period settings on the bottom half of the screen. There are a total of 6 periods that can be set.
  • Page 51 Below is a description of each field in this menu: • Enable: Allows the user to enable the relay activation function • Relay-In: Allows the user to set specific relayed alarms to the camera. • Schedule: Clicking this button opens a weekly schedule that can be used to set times.
  • Page 52 Click and drag to set motion detection for certain days of the week. Also, periods of motion detection can be set for each day and enabled using the period settings on the bottom half of the screen. There are a total of 6 periods that can be set.
  • Page 53 Below is an explanation of the fields on the SD Card settings tab: • Event Type: This dropdown box allows the user to select which SD card abnormality to set event triggers for. The 3 options are No SD Card, SD Card Error, and Capacity Warning. •...
  • Page 54 Below is an explanation of the fields on the Illegal Access settings tab: • Enable: This checkbox enables the Illegal Access abnormality trigger for the camera. • Login Failure: This field allows the user to specify how many failed login attempts must be attempted to trigger an Illegal Access abnormality event.
  • Page 55 Below is an explanation of the fields on the Record Schedule settings tab: Record Type: These checkboxes allow the user to select which recording type they want to configure on the schedule. There are 3 types of recordings: General: General recording means that the camera captures all footage for the specified time period. General recording is represented by the color green.
  • Page 56 Below is an explanation of the fields on the Snapshot Schedule settings tab: • Record Type: These checkboxes allow the user to select which snapshot type they want to configure on the schedule. There are 3 types of snapshots: General: General means that the camera will take snapshots during the specified time period. General recording is represented by the color green.
  • Page 57 Below is an explanation of the fields on the Holiday Schedule settings tab: • Record Type: These checkboxes allow the user to select which recording type they want to configure on the schedule. There are 2 types of recordings: Record: This checkbox is referring to video recording. Snapshot: This checkbox is referring to snapshot recording.
  • Page 58 • Record Type: These columns designate which recording type should be recorded to which event type. Check the box at the intersection of the record type and event type to designate where that recording should be sent to. To reset to default settings, click the Reset Defaults button. To refresh the page, click the Refresh button. To save the settings, click the Save button.
  • Page 59 Below is an explanation of the fields on the FTP settings tab: • Enable: This checkbox allows the user to enable FTP uploading for the camera’s recorded media. • Server Address: This field allows the user to designate a DDNS address for the FTP server. •...
  • Page 60 Save button. 5.4.4.4. Cloud Storage This menu redirects the user to the Amcrest Cloud web site. At this website (amcrestcloud.com) users can register for new accounts as well as view or modify existing accounts. For more information on Amcrest Cloud visit: amcrestcloud.com...
  • Page 61 Below is an explanation of the fields on the General settings tab: • Device Name: This field allows the user to change the device’s name. • Language: This dropdown box allows the user to change the language used in the camera. •...
  • Page 62 Below is an explanation of the fields on the Date & Time settings tab: • Date Format: This dropdown box allows the user to change the date format used in the camera. • Time Format: This dropdown box allows the user to change the time format used in the camera. •...
  • Page 63 • User Name: This column shows the usernames of the different accounts on the camera. • Group Name: This column shows the group of the different accounts on the camera. • Description: This column shows a description of the account. •...
  • Page 64 This menu allows the user to upgrade the camera’s firmware. Below is a screenshot of the Upgrade screen: To upgrade the firmware for your camera, follow the steps provided below: • Go to amcrest.com/firmware-subscribe • Search for the model number of your camera and download the latest firmware file. •...
  • Page 65 Note: When upgrading the camera’s firmware, do not disconnect the internet or power from the camera. 5.4.6 Information This menu section allows the user to view information about the camera for reference purposes. 5.4.6.1 Version This screen allows the user to see various information about the camera’s software versions, as well as other information.
  • Page 66 To view logs for a specific time period, modify the start time and end time fields, choose the type of event (system, setting, data, event, record, manage users, clear log), and click search. To backup the log, click the Backup button. To clear the log, click the Clear button. 5.4.6.2.1.

  • Page 67: Alarm

    5.4.6.3 Online Users This screen allows the user to see which users are online. Below is a screenshot of the Online Users screen: Click Refresh to refresh this table. 5.5 Alarm This screen is where the alarm log is kept. Below is a screenshot of the alarm screen: The table on the right shows the alarm log and all the alarm instances that have occurred.

  • Page 68: Faqs/Troubleshooting

    6. FAQs/Troubleshooting 1. The camera does not boot up properly. Below are a few possible reasons why this may be occurring: • The power input is not correct voltage. • The power cable connection is not secured correctly. • The firmware was upgraded incorrectly. 2.

  • Page 69: Glossary Of Terms

    Below are a few possible reasons why this may be occurring: • The network speed is not enough to transfer video data via web access. • The client PC may have limited resources. • Multicast mode may be causing this issue. •...
  • Page 70 • S/N – S/N stands for serial number. The S/N is unique to each camera and can be used to connect to different Amcrest apps and services to provide different methods of access to the camera.

  • Page 71: Fcc Statement

    FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The user’s manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes, or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

  • Page 72: Appendix A: Toxic Or Hazardous Materials Or Elements

    Appendix A: Toxic or Hazardous Materials or Elements Toxic or Hazardous Materials or Elements Component Name Cr VI PBDE Sheet ○ ○ ○ ○ ○ ○ Metal(Case) Plastic Parts ○ ○ ○ ○ ○ ○ （Panel） Circuit Board ○ ○ ○...
  • Page 73 To contact Amcrest support, please do one of the following: Visit http://amcrest.com/contacts and use the email form Call Amcrest Support using one of the following numbers Toll Free US: (888) 212-7538 International Callers (Outside of US): +1-713-893-8956 USA: 713-893-8956 Canada: 437-888-0177...
