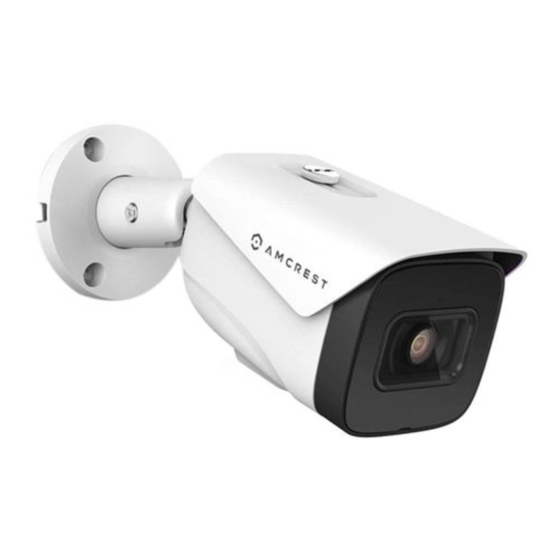

Amcrest IP8M-2696EW-AI / IP8M-2696EB-AI
8MP POE 4K AI Bullet Camera
User Manual
Version 1.0.0
st
Revised October 1
, 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IP8M-2696EW-AI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Amcrest IP8M-2696EW-AI

  • Page 1 Amcrest IP8M-2696EW-AI / IP8M-2696EB-AI 8MP POE 4K AI Bullet Camera User Manual Version 1.0.0 Revised October 1 , 2020...
  • Page 2: Table Of Contents

    Destination.........................57 System ..........................61 Information ........................65 Alarm ..........................67 Logout ..........................67 Remote Web Access Setup ....................68 Amcrest Cloud Desktop Setup ....................70 Web Access Setup (AmcrestView.com) ................70 FAQs/Troubleshooting .......................70 Glossary of Terms .......................72 FCC Statement ........................73 IC Warning Statement ......................74 Appendix A: Toxic or Hazardous Materials or Elements ............74...
  • Page 3: Welcome

    To contact Amcrest support, please do one of the following: Visit http://amcrest.com/contacts Important Security Warning To keep your Amcrest camera secure and prevent unauthorized access, please make sure to follow the steps below: • Always make sure that your camera has the latest firmware as listed on www.amcrest.com/firmware •...
  • Page 4: Features And Specifications

    Overview Amcrest provides an excellent digital surveillance product that can be useful to a wide variety of users. This camera connects uses an internet connection to allow the user to access all its features. It is easy to use and can be viewed on a computer via the built-in web user interface or on your smartphone using the Amcrest View Pro app.
  • Page 5: Installation Guide

    IMPORTANT: Due to specific hardware limitations within your camera it is important to note that these devices will not be able to automatically pan/tilt or pivot in either the app or via the web UI on a computer. For this reason, it is imperative to make sure to mount the cameras properly and position them as efficiently as you can to the areas you wish to monitor.
  • Page 6: Microsd Card Installation

    8. Adjust the device to the desired position. 9. Using a Philip’s head screwdriver, (not included) tighten the adjusting screw near the base of the camera to lock the camera in position. 9. Using a Philip’s head screwdriver, (not included) tighten the adjusting screw near the base of the camera to lock the camera in position.
  • Page 7: Camera Access Setup

    If you are setting up your camera for the first time, or you are setting up your camera for mobile viewing. Using the Amcrest Cloud app or Amcrest View app on your smartphone or tablet, you can view your camera live from anywhere, and access features such as taking snapshots, creating recordings, and more.
  • Page 8: App Setup

    1. Download and open the Amcrest Cloud app from the App Store or Play Store. Note: Connect your mobile device to the same network that your camera is on. 2. Register for an Amcrest Cloud account. To register click on Sign Up and fill out the form to complete registration.
  • Page 9 3. Tap on Add Camera 4. Give your camera a name (Ex. Garage, Living Room, Kitchen, etc.) and tap Next to continue. 6. If you are adding a new camera that does not have 5. Scan the QR code on the back/side/bottom of a set password the app will automatically detect that the camera or manually enter the camera’s serial a new camera is being added.
  • Page 10 Download and install the Amcrest View Pro app for the App Store or Google Play Store. Open the app on your mobile device and allow the app to load.
  • Page 11 Note: IP/Domain/DDNS can be used to establish a DDNS connection. For more information on how to setup a DDNS connection, visit amcrest.com/support 7. Create a name for the device and enter a username 8. Update the default password for the device and and password.
  • Page 12: Desktop Access Setup

    To access your camera from your computer you will need to first locate the camera’s IP address. To locate the camera’s IP address is it highly recommended to download our free Amcrest IP Config Tool software. The Amcrest IP Config Tool can be downloaded at the following web page: amcerest.com/downloads...
  • Page 13: Operation And Interface

    If this is the first-time logging into your device, you will be prompted to modify the password for your device. To modify the password, enter the new password you would like to use in the New Password field and confirm. The password used should be between 8 and 32 characters long with a combination of letters and numbers.
  • Page 14: Playback

    Section 1: These options allow the user quick access to the live view screen, playback, as well as to Amcrest Cloud. Section 2: This section allows the user to switch between Main Stream and Sub Stream. Section 3: This is the live view feed from the camera.
  • Page 15: Setup

    Manual events. The “All” option will select all recording types in the interface. Cloud Storage The Cloud Storage tab allows the user quick access to the Amcrest Cloud website. At this website (amcrestcloud.com) users can register for new accounts as well as view or modify existing accounts.
  • Page 16: Camera

    There are 3 main sections to note in the Setup tab: 1. Menu Bar: Allows the user to switch between Configuration and Profile Management options. 2. Menu Items: Each menu option opens a different menu which allows the user to change between specific settings configurations.
  • Page 17 Below is an explanation for each of the fields on the Configuration tab in the Configuration menu item: Picture Profile: This dropdown box allows the user to select which profile to modify. The 3 options are Day, Night, and General. Brightness: This slider is used to adjust playback and recorded video window brightness.
  • Page 18 Shutter Priority: This setting will maximize the fastest shutter speed and will sacrifice the gain in return. Manual - This setting lets you select your shutter speed and have the gain adjust automatically. Selecting customized range will let you both the shutter speed an adjust the gain manually. Exposure Comp: Use this slider to adjust the exposure compensation.
  • Page 19 Regional Custom: Allows the user to select an area (region) on the live view screen in which white balance will be most applicable. To reset to default settings, click the Reset Defaults button. To refresh the screen, click on Refresh. To save the settings, click the Save button.
  • Page 20 Below is an explanation for each of the fields on the Profile Management tab: Profile Management: This set of radio buttons allow the user to set what basis the profile management settings run on. There are 4 options: General, Full Time, Schedule, and Day/Night. General: The system can automatically alternate between night and day based on the profiles for each.
