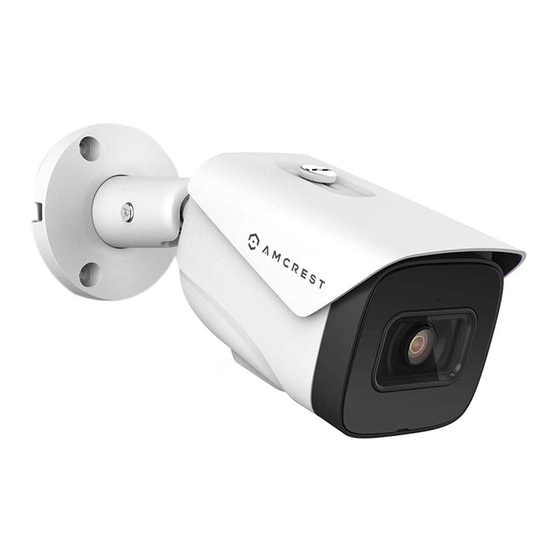

Amcrest IP8M-2696EW-AI / IP8M-2696EB-AI
8MP POE 4K AI Bullet Camera
User Manual
Version 1.0.0
st
Revised October 1
, 2020
