DIMM Sockets (DIMM1 ~ DIMM4)

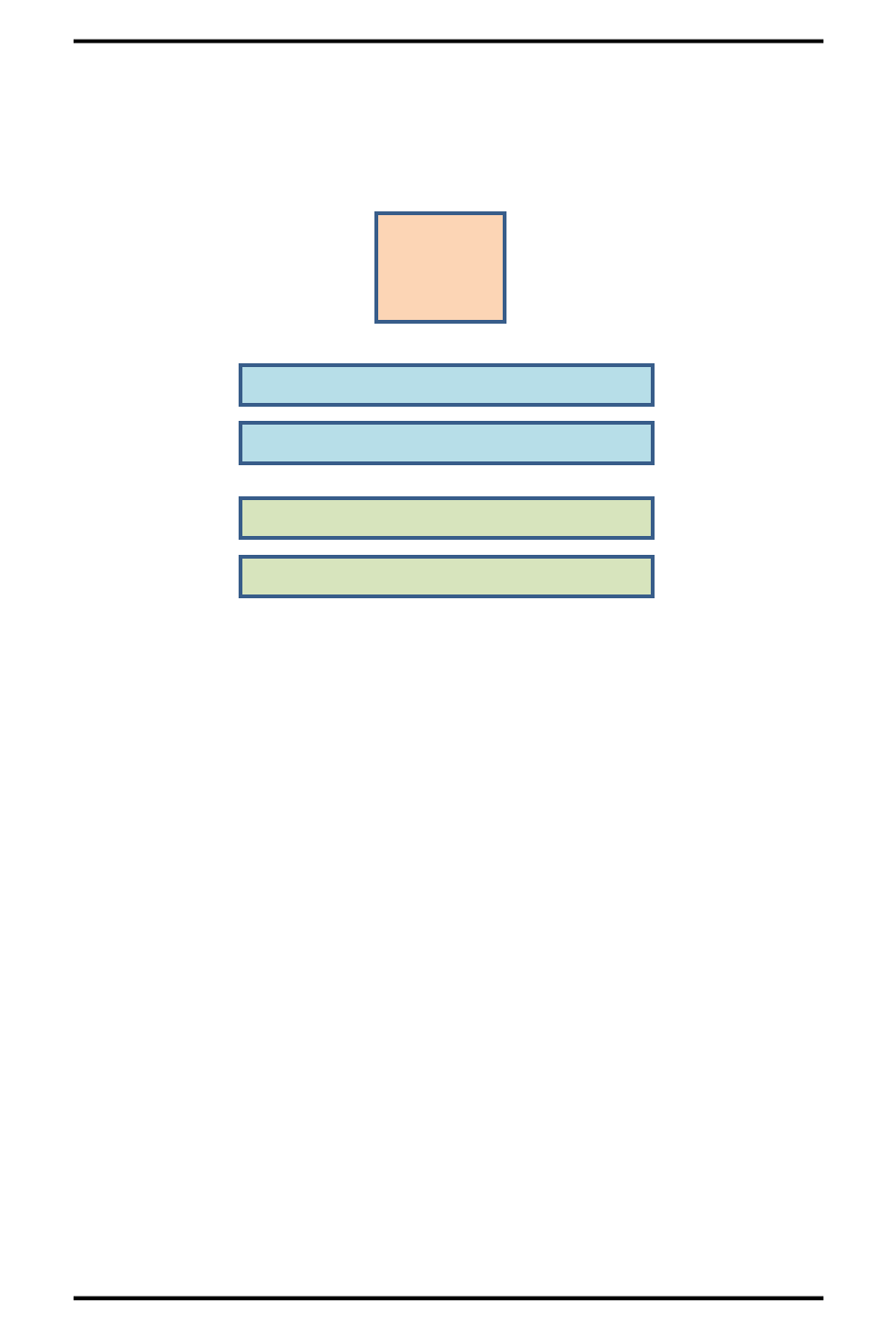

There are four DDR4 DIMM sockets. They are grouped into two memory channels,
channel A and channel B. DIMM sockets are arranged in the order as the following
diagram. IMB524 has only DIMM sockets 1 and 3.
CPU
Channel A / DIMM1
Channel A / DIMM2
Channel B / DIMM3
Channel B/ DIMM4
Board and Pin Assignments 27
