Summary of Contents for Fiilex Q1000DC

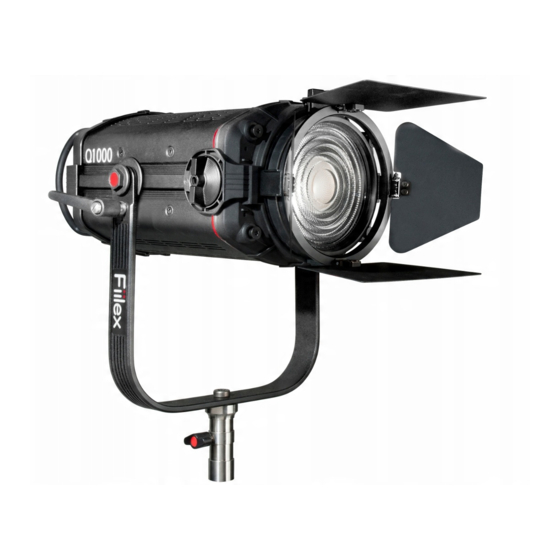

- Page 1 Q1000DC Fiilex LED Light Quick Start Guide...
-
Page 2: Table Of Contents
Table of Contents What Is In The Box Parts Diagram Basic Operation Rear Panel Interface Operation Accessories Overview Specifications For Your Safety... -
Page 3: What Is In The Box
What Is In The Box Q1000 Light 4 Leaf Barndoor 5-Inch Fresnel Lens Cable Tie Clamp Mount External Power Adapter 19.5 ft. AC Cable... -
Page 4: Parts Diagram
Parts Diagram Vent Holes Top Latch Size 3 Accessory Holder Magnetic Mount Light Source Focusing Knob Junior Pin Receiver Stand Locking Pin Yoke Tilt Lock Lever Handles DMX Address Knob LCD Display Yoke Bolt CCT Tuning Knob HUE Tuning Knob DMX Output (XLR Female 5-Pin) USB Port (Mini USB) -
Page 5: Basic Operation
DMX line through to the next lamphead. • USB Interface The Q1000 is equipped with a Mini USB port for updating the Q1000's firmware. Please register your product at www.fiilex.com to be informed when firmware updates are available. -
Page 6: Rear Panel Interface Operation
Rear Panel Interface Operation FUNCTION KNOB RANGE 2 00K~6500K Set color temperature Set intensity 100%-0% ± .25 Magenta / Green Set HUE value Set DMX address 0 ~ 512 Flashing underscore HOW TO ASSIGN DMX ADDRESS: 1. Double click the DMX Address Knob (12) to activate the DMX Address Section of the LCD Display. -
Page 7: Accessories Overview
Accessories Overview Slide the Clamp Mount into the back of Power Adaptor until you hear a click. Tighten the clamp mount to secure the lock. To remove, loosen the lock LOCK knob and push it to the opposite side, then slide out the Clamp Mount. - Page 8 Size 3 Accessory Holder (3). Two magnets are located on the outer diameter of the Light Source (5). Fiilex Magnetic Accessories will mount onto the Q1000 when the 5-inch Fresnel Lens has been removed. Not all accessories are designed to handle the intense output of the Q1000.
-
Page 9: Specifications
Specifications Size (without Barndoor) 350mm x 325mm x 400mm (With Yoke) Weight (Includes Yoke) 12.8 lbs / 5.8kg Weight (Power Adaptor) 4.8 lbs / 2.2kg Dense Matrix LED Thermal Design Advanced Vapor Cooling CCT Range 2800-6500K Continuous Tuning >93 (3000-5600k) Power Consumption AC Power 340 Max / DC Power 305 Max Power Connection... - Page 10 Any product, unit, or part returned to Fiilex must be packaged in a suitable manner to ensure the protection of such product, unit, or part. The package must be clearly and prominently marked with a Return Merchandise Authorization Number (RMA #) to indicate that the package contains returned products, units, or parts.
