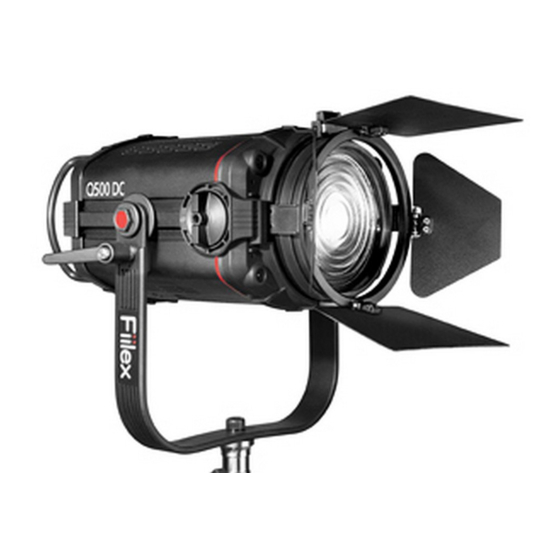

- Page 1 Q500DC Fiilex LED Light Quick Start Guide...
-
Page 2: Table Of Contents
Table of Contents What Is In The Box Parts Diagram Basic Operation Rear Panel Interface Operation Accessories Overview Specifications For Your Safety... -
Page 3: What Is In The Box
What Is In The Box • Q500 Light • 4 Leaf Barndoor • 5-Inch Fresnel Lens • Cable Tie • External Power Adapter... -
Page 4: Parts Diagram
Parts Diagram Vent Holes Top Latch Size 3 Accessory Holder Magnetic Mount Light Source Focusing Knob Junior Pin Receiver Stand Locking Pin Yoke Tilt Lock Lever Handles DMX Address Knob LCD Display Yoke Bolt CCT Tuning Knob HUE Tuning Knob DMX Output (XLR Female 5-Pin) USB Port (Mini USB) -
Page 5: Basic Operation
DMX line through to the next lamphead. • USB Interface The Q500 is equipped with a mini USB port for updating the Q500's firmware. Please register your product at www.fiilex.com to be informed when firmware updates are available. -
Page 6: Rear Panel Interface Operation
Rear Panel Interface Operation FUNCTION KNOB RANGE 2 00K~6500K Set color temperature Set intensity 100%-5% ± .25 Magenta / Green Set HUE value Set DMX address 0 ~ 512 Flashing underscore HOW TO ASSIGN DMX ADDRESS: 1. Double click the DMX Address Knob (12) to activate the DMX Address Section of the LCD Display. -
Page 7: Accessories Overview
Size 3 Accessory Holder (3). MAGNETIC MOUNT (4) Two magnets are located on the outer diameter of the Light Source (5). Fiilex Magnetic Accessories will mount onto the Q500 when the 5-inch Fresnel Lens has been removed. Not all accessories are designed to handle the intense output of the Q500. -
Page 8: Specifications
Specifications Size (without Barndoor) 305mm X 325mm x 380mm (With yoke) Weight (Includes Yoke) 15.8 lbs / 7.2 kg Dense Matrix LED Thermal Design Advanced Vapor Cooling CCT Range 2800-6500K Continuous Tuning >93 (3000-5600k) Power Consumption AC Power 185W Max DC Power 170W Max Power Connection Detachable PowerCon Cable... - Page 9 Any product, unit, or part returned to Fiilex must be packaged in a suitable manner to ensure the protection of such product, unit, or part. The package must be clearly and prominently marked with a Return Merchandise Authorization Number (RMA #) to indicate that the package contains returned products, units, or parts.
- Page 10 Fiilex.com 1689 Regatta Blvd., Richmond, CA 94804 (510)-620-5155 | fiilex@fiilex.com Information and Specifications in this document are subject to change without notice. DiCon Lighting, Inc. assumes no responsibility or liability for any error or inaccuracies that may appear in this manual. Unlawful reproduction or distribution in any manner without the written permission of DiCon Lighting, is strictly prohibited.
