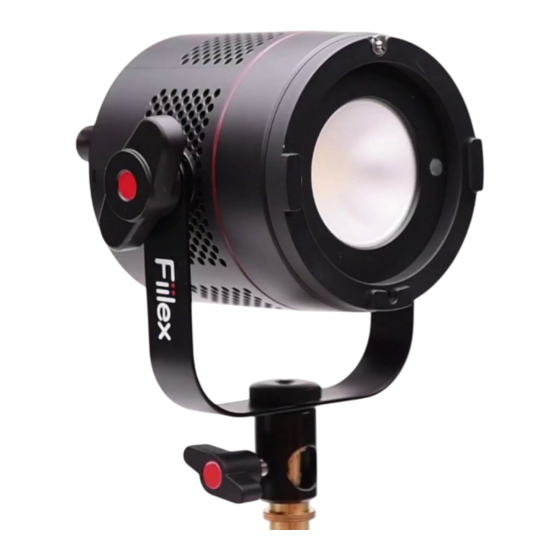

- Page 1 P360 Gen II Series Portable LED Light User Manual...
-
Page 2: Table Of Contents
Table of Contents What’s in the Box Light Components Setup and Basic Operation Optional Accessories Specifications For Your Safety... -
Page 3: What's In The Box
What’s in the Box • P360 Classic / Pro / Pro Plus • 4 Leaf Barndoor Set • Power Adapter... -
Page 4: Light Components
Light Components 4 Leaf Barndoor Barndoor Brackets Accessory Lock Side Vents Yoke Knobs Rear Vents Light Intensity / DMX Address Knob (DMX: P360 Pro / P360 Pro Plus Only) Light Control Output Jack (P360 Pro / P360 Pro Plus Only) DC Power Input Jack On / Off Button CCT / Hue Tuning Knob... -
Page 5: Setup And Basic Operation
Setup and Basic Operation Initial Setup Light Settings 1. Mount Light Stand Adapter (O) to 5/8” Stud on light stand. Turn CCT Tuning Knob (K) to adjust color temperature (2800-6500K). 2. Slide Barndoors into Barndoor Brackets (B) until Accessory Lock (C) clicks. Turn Intensity Knob (G) to adjust light intensity (0-100%). -
Page 6: Optional Accessories
Optional Accessories Power Adapter Holder DMX Controller Fresnel Lens Dome Diffuser XLR Unit Link Adapter RJ45 Unit Link Adapter D-tap Cable Softbox with RJ45 Coupler For additional accessories go to www.fiilex.com... -
Page 7: Specifications
Specifications Size (without Barndoor) 4” x 4.7” / 102mm x 119mm Weight (Includes Yoke) 1.6 lb / 0.74 kg Dense Matrix LED Thermal Design Advanced Cooling System CCT Range 2800-6500K Continuous Tuning Hue Range (Pro Plus only) -0.25 to +0.25 >93 Power Consumption 90W Max. -
Page 8: For Your Safety
Fiilex.com 1689 Regatta Blvd. Richmond, CA 94804 (510)620-5155 . Fiilex@Fiilex.com Information and Specifications in this document are subject to change without notice. DiCon Lighting, Inc. assumes no responsibility or liability for any error or inaccuracies that may appear in this manual. Unlawful reproduction or distribution in any manner without the written permission of DiCon Lighting, is strictly prohibited. - Page 9 Fiilex.com Ver.A1...
