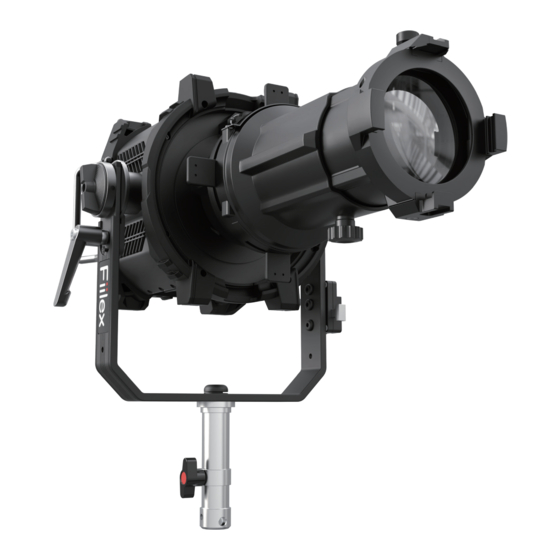

Fiilex G6 COLOR User Manual

175w cinematic led ellipsoidal light

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

USER MANUAL

Model No: FLXG6CLR

English Version

175W Cinematic LED Ellipsoidal Light

Rev.01 - 07/09/2024

Table of Contents

Need help?

Do you have a question about the G6 COLOR and is the answer not in the manual?

Questions and answers

Summary of Contents for Fiilex G6 COLOR

Page 1 USER MANUAL Model No: FLXG6CLR English Version 175W Cinematic LED Ellipsoidal Light Rev.01 - 07/09/2024...
Page 2 ﬁrmware updates. G6 Webpage The Fiilex Logo, Fiilex names, and all other trademarks in this document pertaining to Fiilex services or Fiilex products are trademarks of DiCon FiberOptics, Inc., its aﬃliates, and subsidiaries. Fiilex is a registered trademark. All rights reserved. FiberOptics 1689 Regatta Blvd. Richmond, CA 94804 USA.
Page 3 PACKAGE CONTENTS INTRODUCTION INDEX SAFETY INFORMATION WARRANTY 1 - PACKAGING PACKAGE CONTENTS OPTIONAL ACCESSORIES 2 - SPECIFICATIONS 3 - TECHNICAL DRAWING INFORMATION 4 - PHOTOMETRIC DATA 5 - BEAM PROFILE 6 - INSTALLATION MOUNTING 7 - CONNECTION TO AC POWER 8 - START UP CONNECT AND DISCONNECT POWER 9 - PRODUCT OVERVIEW...
Page 4 15 - ACCESSORIES ADJUSTMENTS ADDITIONAL ACCESSORIES 16 - MAINTENANCE MAINTENANCE AND CLEANING VISUAL CHECK OF PRODUCT HOUSING 17 - TROUBLESHOOTING www.ﬁilex.com 1689 Regatta Blvd. Richmond, CA 94804 | (510) 620-5155 | ﬁilex@ﬁilex.com...
Page 5 • Do not reapply power until repairs have been completed. • Refer any service operation not described in this manual to the Fiilex Customer Service team. Installation • Make sure that all visible parts of the product are in good condition before its use or installation.
Page 6 • Warning! Disconnect the ﬁxture from AC power and allow it to cool for at least 10 minutes before handling. • Only technicians who are authorized by Fiilex or Authorized service partners are permitted to open the ﬁxture. • Users may carry out external cleaning, following the warnings and instructions provided, but any service operation not described in this manual must be referred to a qualiﬁed service technician.
Page 7 SAFETY INFORMATION Disposal • This product is supplied in compliance with European Directive 2012/19/EU – Waste Electrical and Electronic Equipment (WEEE). To preserve the environment please dispose/ recycle this product at the end of its life according to the local regulation. The products to which this manual refers comply with •...
Page 8 Unless otherwise stated, your product is covered by a one-year parts and labor limited warranty. Fiilex guarantees, to the original buyer, that this product is to be free of defects in both workmanship and material for a period of one year from the date of shipment. This warranty extends to all products which have proved defective through normal use but excludes products that have been disassembled, modiﬁed, or misused by the buyer or any other person.
Page 9 1 - PACKAGING Package contents • 1x G6 COLOR w/ LumenRadio Head & Yoke • 1x FLXG6CLR-PSU-185V • 1x FLXG6CLR-PSU-ACJ6-TRUE1 Optional accessories The most updated accessories list, descriptions, and information about the product can be found at the following link: https://ﬁilex.com/products/G6_Color.php...
Page 10 3 - TECHNICAL DRAWING INFORMATION Dimming Modes / Curve 17.8" 11.1” (45.2 cm) (28.3 cm) 7.7” 16.4" (19.6 cm) (41.7 cm) 8.0” ±110° (20.4 cm) Tilt 15.7” (39.8 cm) FLXG6CLR - Weight Fixture: 11 lbs / 5.0kg (With lens tube) Power adapter: 3.3 lbs / 1.5kg 4 - PHOTOMETRIC DATA 2.0 m...
Page 11 5 - BEAM PROFILE Beam Proﬁle of G6 COLOR 3200K-19º 3200K-36º 5600K-19º 5600K-36º 5000 4500 4000 3500 3000 2500 2000 1500 1000 Angle (Degrees) www.ﬁilex.com 1689 Regatta Blvd. Richmond, CA 94804 | (510) 620-5155 | ﬁilex@ﬁilex.com...
Page 12 Warning! When clamping the ﬁxture to a truss or other structure at any angle, use clamps of half coupler type. Do not use any type of clamp that does not completely encircle the structure when fastened. Attach Clamp *Fiilex does not include a clamp with lighting products. 11.1” (28.3 cm) 7.7”...
Page 13 7 - CONNECTION TO AC POWER Warning! To protect from electric shock, the ﬁxture must be grounded. The product is equipped with auto-switching power supply that automatically adjusts to any 50-60Hz AC power source from 100-240 Volts. If you need to install a power plug on the power cable to allow connection to power outlets, install a grounding-type plug, following the plug manufacturer’s instructions.
Page 14 9 - PRODUCT OVERVIEW Parts diagram 1. Handles 10. Shutter 19. DMX Input (XLR-Male 5-pin) 2. Lens Tube Extended Release Pin 11. Barrel 20. Antenna 3. Tilt Lock Lever 12. LEKO 21. Navigation Pad 4. Yoke 13. OLED Display 22. ON/OFF Switch 5.
Page 15 10 - CONTROL PANEL The product has a display and buttons to access the control panel functions. Display and buttons layout 1. OLED Panel : Used to view all menu functions 2. Knobs : Adjustments (Parameter adjusted depends on DMX operating mode) 3.
Page 16 10 - CONTROL PANEL Knob Function Knob CCT/HUE CCT/HUE GN/SAT GN/SAT Turn Press Turn Press Turn Press Press Press CCT/HUE Quick Adjust GN/SAT Quick Adjust Up/Down Left/Right Actions Conﬁrm Adjust Adjust Adjust Move Move Knob behavior for all modes Input DMX Modes CCTxy ICTHS...
Page 17 11 - DMX CONNECTION Connection of the DMX signal The product has XLR-5 sockets for DMX input and output. The default pin-out on both sockets is shown below: DMX - INPUT DMX - OUTPUT Pin1 : GND - Shield XLR-5 plug XLR-5 socket Pin2 : - Signal Pin3 : + Signal...
Page 18 11 - DMX CONNECTION DMX termination The termination is prepared by soldering a 120 Ohm 1/4 W resistor between pins 2 and 3 of the male XLR-5 connector, as shown in ﬁgure. X control circuit is not isolated. • Cumulative leakage current on the DMX control circuit is less than 3.5 mA. DMX addressing In order to start controlling the product via DMX, the ﬁrst step is to select a DMX address, also known as the start channel.
Page 19 12 - MENU STRUCTURE Menu * Double click center button to return to the upper level. * Enter the current mode function of the Dashboard by pressing the center button. * Please refer to the Dashboard section for detail ﬂow of each function. Continued navigating right to see the entire menu.
Page 20 12 - MENU STRUCTURE Menu * Double click center button to return to the upper level. * Enter the current mode function of the Dashboard by pressing the center button. * Please refer to the Dashboard section for detail ﬂow of each function. “WHITE POINT”...
Page 21 In CCTxy and ICTxy modes, the "CCT" and "Green Adjust" parameters allow slight adjustment of the color temperature and tint for the selected “CIEx” and “CIEy” coordinates. To produce an ouput true to the CIEx and CIEy coordinates, set “CCT”=6500K and “Green Adjust”=0.00 www.fiilex.com 1689 Regatta Blvd. Richmond, CA 94804 | (510) 620-5155 | fiilex@fiilex.com...
Page 22 Mode 69 ( 6 ) EZ 3200K Mode 61 ( 1 ) Mode 74 ( 2 ) EZ 5600K Mode 62 ( 1 ) Mode 75 ( 2 ) www.fiilex.com 1689 Regatta Blvd. Richmond, CA 94804 | (510) 620-5155 | fiilex@fiilex.com...
Page 23 DMX Modes ALL Modes Mode 8-bit ( DMX Footprint ) 16-bit ( DMX Footprint ) Page ALL MODES Mode 76 ( 12 ) Mode 77 ( 20 ) www.fiilex.com 1689 Regatta Blvd. Richmond, CA 94804 | (510) 620-5155 | fiilex@fiilex.com...
Page 24 Use current setting in fixture Dimming Setting 10 – 99 Sharp dimming 100 – 255 Smooth dimming 0 – 9 Strobe off Strobe Frequency 10 – 255 1Hz - 25Hz Reserved www.fiilex.com 1689 Regatta Blvd. Richmond, CA 94804 | (510) 620-5155 | fiilex@fiilex.com...
Page 25 Use current setting in fixture Dimming Setting 10 – 99 Sharp dimming 100 – 255 Smooth dimming 0 – 9 Strobe off Strobe Frequency 10 – 255 1Hz - 25Hz Reserved www.fiilex.com 1689 Regatta Blvd. Richmond, CA 94804 | (510) 620-5155 | fiilex@fiilex.com...
Page 26 Use current setting in fixture Dimming Setting 10 – 99 Sharp dimming 100 – 255 Smooth dimming 0 – 9 Strobe off Strobe Frequency 10 – 255 1Hz - 25Hz Reserved www.fiilex.com 1689 Regatta Blvd. Richmond, CA 94804 | (510) 620-5155 | fiilex@fiilex.com...
Page 27 Use current setting in fixture Dimming Setting 10 – 99 Sharp dimming 100 – 255 Smooth dimming 0 – 9 Strobe off Strobe Frequency 10 – 255 1Hz - 25Hz Reserved www.fiilex.com 1689 Regatta Blvd. Richmond, CA 94804 | (510) 620-5155 | fiilex@fiilex.com...
Page 28 Use current setting in fixture Dimming Setting 10 – 99 Sharp dimming 100 – 255 Smooth dimming 0 – 9 Strobe off Strobe Frequency 10 – 255 1Hz - 25Hz Reserved www.fiilex.com 1689 Regatta Blvd. Richmond, CA 94804 | (510) 620-5155 | fiilex@fiilex.com...
Page 29 Use current setting in fixture Dimming Setting 10 – 99 Sharp dimming 100 – 255 Smooth dimming 0 – 9 Strobe off Strobe Frequency 10 – 255 1Hz - 25Hz www.fiilex.com 1689 Regatta Blvd. Richmond, CA 94804 | (510) 620-5155 | fiilex@fiilex.com...
Page 30 Use current setting in fixture Dimming Setting 10 – 99 Sharp dimming 100 – 255 Smooth dimming 0 – 9 Strobe off Strobe Frequency 10 – 255 1Hz - 25Hz Reserved www.fiilex.com 1689 Regatta Blvd. Richmond, CA 94804 | (510) 620-5155 | fiilex@fiilex.com...
Page 31 Use current setting in fixture Dimming Setting 10 – 99 Sharp dimming 100 – 255 Smooth dimming 0 – 9 Strobe off Strobe Frequency 10 – 255 1Hz - 25Hz Reserved www.fiilex.com 1689 Regatta Blvd. Richmond, CA 94804 | (510) 620-5155 | fiilex@fiilex.com...
Page 32 Use current setting in fixture Dimming Setting 10 – 99 Sharp dimming 100 – 255 Smooth dimming 0 – 9 Strobe off Strobe Frequency 10 – 255 1Hz - 25Hz www.fiilex.com 1689 Regatta Blvd. Richmond, CA 94804 | (510) 620-5155 | fiilex@fiilex.com...
Page 33 Use current setting in fixture Dimming Setting 10 – 99 Sharp dimming 100 – 255 Smooth dimming 0 – 9 Strobe off Strobe Frequency 10 – 255 1Hz - 25Hz www.fiilex.com 1689 Regatta Blvd. Richmond, CA 94804 | (510) 620-5155 | fiilex@fiilex.com...
Page 34 Use current setting in fixture Dimming Setting 10 – 99 Sharp dimming 100 – 255 Smooth dimming 0 – 9 Strobe off Strobe Frequency 10 – 255 1Hz - 25Hz www.fiilex.com 1689 Regatta Blvd. Richmond, CA 94804 | (510) 620-5155 | fiilex@fiilex.com...
Page 35 Use current setting in fixture Dimming Setting 10 – 99 Sharp dimming 100 – 255 Smooth dimming 0 – 9 Strobe off Strobe Frequency 10 – 255 1Hz - 25Hz www.fiilex.com 1689 Regatta Blvd. Richmond, CA 94804 | (510) 620-5155 | fiilex@fiilex.com...
Page 36 0% – 100% Intensity Blue 0 – 255 0 – 65, 535 0% – 100% 9-10 Intensity White 0 – 255 0 – 65, 535 0% – 100% www.fiilex.com 1689 Regatta Blvd. Richmond, CA 94804 | (510) 620-5155 | fiilex@fiilex.com...
Page 37 0% – 100% 13-14 Intensity Blue 0 – 255 0 – 65, 535 0% – 100% 15-16 Intensity White 0 – 255 0 – 65, 535 0% – 100% www.fiilex.com 1689 Regatta Blvd. Richmond, CA 94804 | (510) 620-5155 | fiilex@fiilex.com...
Page 38 Full magenta ~ Full green (-1.0 ~ +1.0) 0 – 255 0 – 65, 535 0° – 360° 9-10 Saturation 0 – 255 0 – 65, 535 0% – 100% www.fiilex.com 1689 Regatta Blvd. Richmond, CA 94804 | (510) 620-5155 | fiilex@fiilex.com...
Page 39 0 – 65, 535 0% – 100% Intensity Green 0 – 255 0 – 65, 535 0% – 100% Intensity Blue 0 – 255 0 – 65, 535 0% – 100% www.fiilex.com 1689 Regatta Blvd. Richmond, CA 94804 | (510) 620-5155 | fiilex@fiilex.com...
Page 40 Mode 62 (8-bit) / Mode 75 (16-bit) : EZ 5600K 8-bit 16-bit Function 8-bit/16-bit Value Range Master Intensity 0 – 255 0 – 65, 535 0% – 100% www.fiilex.com 1689 Regatta Blvd. Richmond, CA 94804 | (510) 620-5155 | fiilex@fiilex.com...
Page 41 Use current setting in fixture Dimming Setting 10 – 99 Sharp dimming 100 – 255 Smooth dimming 0 – 9 Strobe off Strobe Frequency 10 – 255 1Hz - 25Hz www.fiilex.com 1689 Regatta Blvd. Richmond, CA 94804 | (510) 620-5155 | fiilex@fiilex.com...
Page 42 0 – 255 0 – 65,535 0.0 – 0.8 Saturation 0 – 255 0 – 65,535 0% – 100% 12-13 0 – 255 0 – 65,535 0.0 – 0.8 Reserved www.fiilex.com 1689 Regatta Blvd. Richmond, CA 94804 | (510) 620-5155 | fiilex@fiilex.com...
Page 43 Strobe 80 – 89 Television 90 – 99 Circular 100 – 109 Vertical 110 – 119 Horizontal 120 – 129 Diagonal 130 – 255 Reserved for future use www.fiilex.com 1689 Regatta Blvd. Richmond, CA 94804 | (510) 620-5155 | fiilex@fiilex.com...
Page 44 0% – 100% Reserved CIExy 8-bit 16-bit Function 8-bit/16-bit Value Range 0 – 255 0 – 65,535 0.0 – 0.8 0 – 255 0 – 65,535 0.0 – 0.8 www.fiilex.com 1689 Regatta Blvd. Richmond, CA 94804 | (510) 620-5155 | fiilex@fiilex.com...
Page 45 40 – 49 Fastest 40 – 49 Fastest 0 – 9 Slowest 10 – 19 Slower 10-11 Speed 20 – 29 Medium 30 – 39 Faster 40 – 49 Fastest www.fiilex.com 1689 Regatta Blvd. Richmond, CA 94804 | (510) 620-5155 | fiilex@fiilex.com...
Page 46: Table Of Contents
RDM Identification DMX Personality Identification Network Management Status Collection RDM Information Product Information DMX512 Setup Dimmer Settings RDM E1.37 version (not supported yet) Power/Lamp Settings Control Manufacturer Command www.fiilex.com 1689 Regatta Blvd. Richmond, CA 94804 | (510) 620-5155 | fiilex@fiilex.com...
Page 47: Rdm Identification
Q3 COLOR-LR FLXRPU FLXMOTOK40 MOTOK40 FLXQ6CLR Q6 COLOR FLXG6CLR G6 COLOR FLXMOTOQ3CLR MOTOQ3 FLXK10CLR K10 COLOR UID Example 243501 00 0 2 Serial Number Device Model ID Manufacturer ID www.fiilex.com 1689 Regatta Blvd. Richmond, CA 94804 | (510) 620-5155 | fiilex@fiilex.com...
Page 48: Dmx Personality Identification
Personality Description 18 0x12 19: PXL4 CIExy 8-Bit (Footprint 15) K10/Matrix/QUAD Only Personality Description 19 0x13 Personality Description 20 0x14 20: PXL4 CCTHSI 16-Bit (Footprint 52) K10/Matrix/QUAD Only www.fiilex.com 1689 Regatta Blvd. Richmond, CA 94804 | (510) 620-5155 | fiilex@fiilex.com...
Page 49 Personality Description 54 0x36 54: EZ CCTRGBW 8-Bit (Footprint 8) Personality Description 55 0x37 55: EZ CIExy 8-Bit (Footprint 3) Personality Description 56 0x38 56: EZ RGB 8-Bit (Footprint 3) www.fiilex.com 1689 Regatta Blvd. Richmond, CA 94804 | (510) 620-5155 | fiilex@fiilex.com...
Page 50 Personality Description 74 0x4A 74: EZ 3200K 16-Bit (Footprint 2) Personality Description 75 0x4B 75: EZ 5600K 16-Bit (Footprint 2) Personality Description 76 0x4C 76: ALL_MODES 8-Bit (Footprint 12) www.fiilex.com 1689 Regatta Blvd. Richmond, CA 94804 | (510) 620-5155 | fiilex@fiilex.com...
Page 51 Personality Description 95 0x5F 95: PXL4 EZ RGB 16-Bit (Footprint 24) K10/Matrix/QUAD Only Personality Description 96~99 Reserved Personality Description 100 0x64 100: PXL16 CCTHSI 8-Bit (Footprint 99) QUAD Only www.fiilex.com 1689 Regatta Blvd. Richmond, CA 94804 | (510) 620-5155 | fiilex@fiilex.com...
Page 52 118: PXL16 EZ CCT 16-Bit (Footprint 96) QUAD Only Personality Description 119 0x77 119: PXL16 EZ HSI 16-Bit (Footprint 96) QUAD Only Personality Description 120 0x78 120: PXL16 EZ RGBW 16-Bit (Footprint 160) QUAD Only www.fiilex.com 1689 Regatta Blvd. Richmond, CA 94804 | (510) 620-5155 | fiilex@fiilex.com...
Page 53: Network Management
Description SUPPORTED PARAMETERS 0x0050 Support required only if supporting parameters beyond the minimum re- quired set. PARAMETER DESCRIPTION 0x0051 Retrieves a list of all manufacturer commands (>= 0x8000). www.fiilex.com 1689 Regatta Blvd. Richmond, CA 94804 | (510) 620-5155 | fiilex@fiilex.com...
Page 54: Product Information
Retrieve or set a dimmer curve. CURVE 0x0343 1 : Linear 2 : Gamma This parameter is used to get a descriptive ASCII text label for a given CURVE DESCRIPTION 0x0344 curve. www.fiilex.com 1689 Regatta Blvd. Richmond, CA 94804 | (510) 620-5155 | fiilex@fiilex.com...
Page 55: Power/Lamp Settings
Applies to HSI, RGBW and RGB modes GET/SET FIILEX_FAN 0x8002 0:Silent, 1:Auto, 2:Full speed, 3:OFF FIILEX_ERROR 0x8003 GET Fiilex error code FIILEX_CIEXY 0x8004 Format: (X, Y) Range: X: 0~0.8 Y: 0~0.8 www.fiilex.com 1689 Regatta Blvd. Richmond, CA 94804 | (510) 620-5155 | fiilex@fiilex.com...
Page 56 15 - ACCESSORIES ADJUSTMENTS Turn the pin (1) and the lens tube will release, pull the lens tube outward allowed fully extended (2). NOTE: To decrease the lens tube, reverse the procedure.1 Addtional accessories www.ﬁilex.com 1689 Regatta Blvd. Richmond, CA 94804 | (510) 620-5155 | ﬁilex@ﬁilex.com...
Page 57 » Electrical, photometric and functional checks; eventual repairs. Warning! The use of alcohol or any other detergent could damage the lenses. • All other service operations on the product must be carried out by Fiilex, its approved service agents or trained and qualiﬁed personnel.
Page 58 16 - MAINTENANCE Visual check of product housing • The parts of the product cover/housing should be checked for signs of damage at least every two months. In addition, the front lens holder should be checked mechanically to ensure if it is ﬁrmly fastened to the ﬁxture.
Page 59 ﬁxture serviced by a qualiﬁed technician. Fresnel adjustment is too ﬁrm / • Mechanical hardware • Contact Fiilex Service or an authorized service partner. require cleaning, adjustment not ﬁrm enough or lubrication. • Fixture is too hot.
Page 60 www.ﬁilex.com www.ﬁilex.com 1689 Regatta Blvd. Richmond, CA 94804 | (510) 620-5155 | ﬁilex@ﬁilex.com...
