- Page 1 6-in 1-out DVI Switcher Operation Manual CDVI-61...

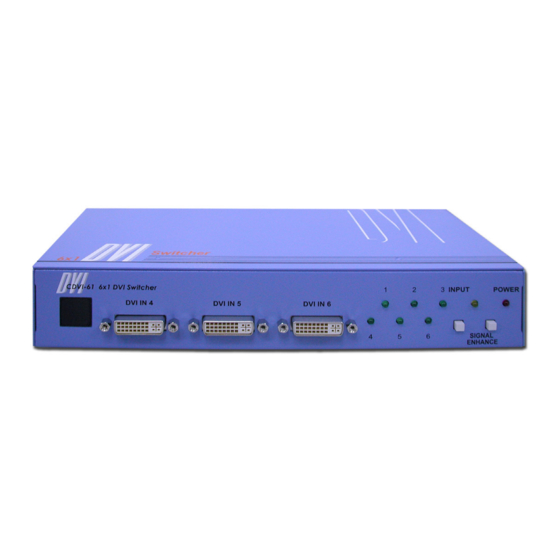

- Page 2 Introduction Cypress CDVI-61 is a high performance DVI switcher with remote control. It allows your various DVI sources to share one DVI display. Simply pressing one button to select your desired DVI source for display on the HDTV. Features * HDMI, HDCP 1.1 and DVI 1.0 compliant.
- Page 3 1. DVI output: Connect the DVI output to the DVI input of your display using DVI cable. 2.DVI inputs: Connect your various DVI sources to each of the DVI input of the unit using DVI cables. 3. Power: Plug the supplied 5VDC power supply into the unit. 4.
- Page 4 RS-232 command * The command is combined with a characters and digits. * This combination command code has to be separated by ASCII character SPACE * The command will be executed after ASCII character "CR" input * After ASCII character "CR" is entered, if the command is legal the unit will reply "OK" message * If the command is illegal, The unit will reply "NG"...
