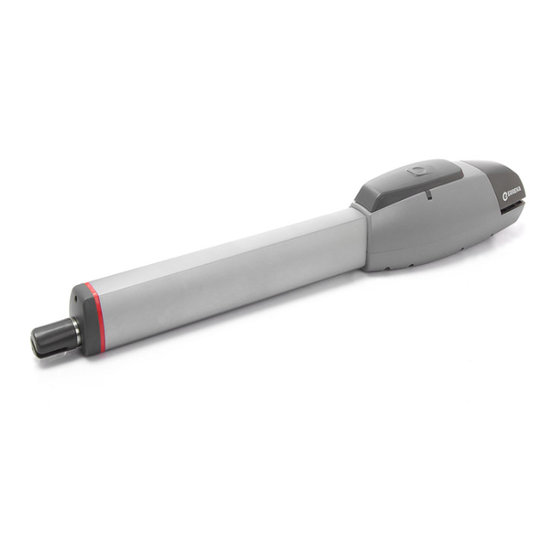

KAIROS
Guía rápida de instalación y programación
Esta guía rápida es un resumen del manual de instalación completo. Dicho manual contiene advertencias de
seguridad y otras explicaciones que deben ser tenidas en cuenta. Puede descargar el manual de instalación
AVISO
en el apartado "Descargas" de la web de Erreka:
http://www.erreka-automation.com
G
D
C
Cableado eléctrico
A.B: 24v DC Motor(2x1mm²)
C: Fotocélulas 2x0.5mm² (max 20m)
D: Cuadro De Maniobra (3x1.5mm²)
E: Pulsador 2x0.5mm²(max 25m)
KAIROS no es aplicable a una puerta insegura o carente de rigidez, ni resuelve los defectos debido a una incorrecta insta-
Compruebe los siguientes puntos antes proceder a la instalación:
1). Las bisagras están colocadas correctamente.
2). Asegúrese de que no existe fricción grave en los trayectos de la apertura o el cierre de las puertas.
3). El valor "C" es de 139mm.
4). "D" se puede medir desde la puerta fácilmente
5). "A" = "C" + "D"
6). El valor de "B" se puede calcular a partir del valor de "A" y el ángulo de apertura de las hojas.
Ej. Si "A"=160mm con el ángulo de apertura de 100 grados, entonces el valor "B" es de aproximadamente 190mm.
B
D
A
C

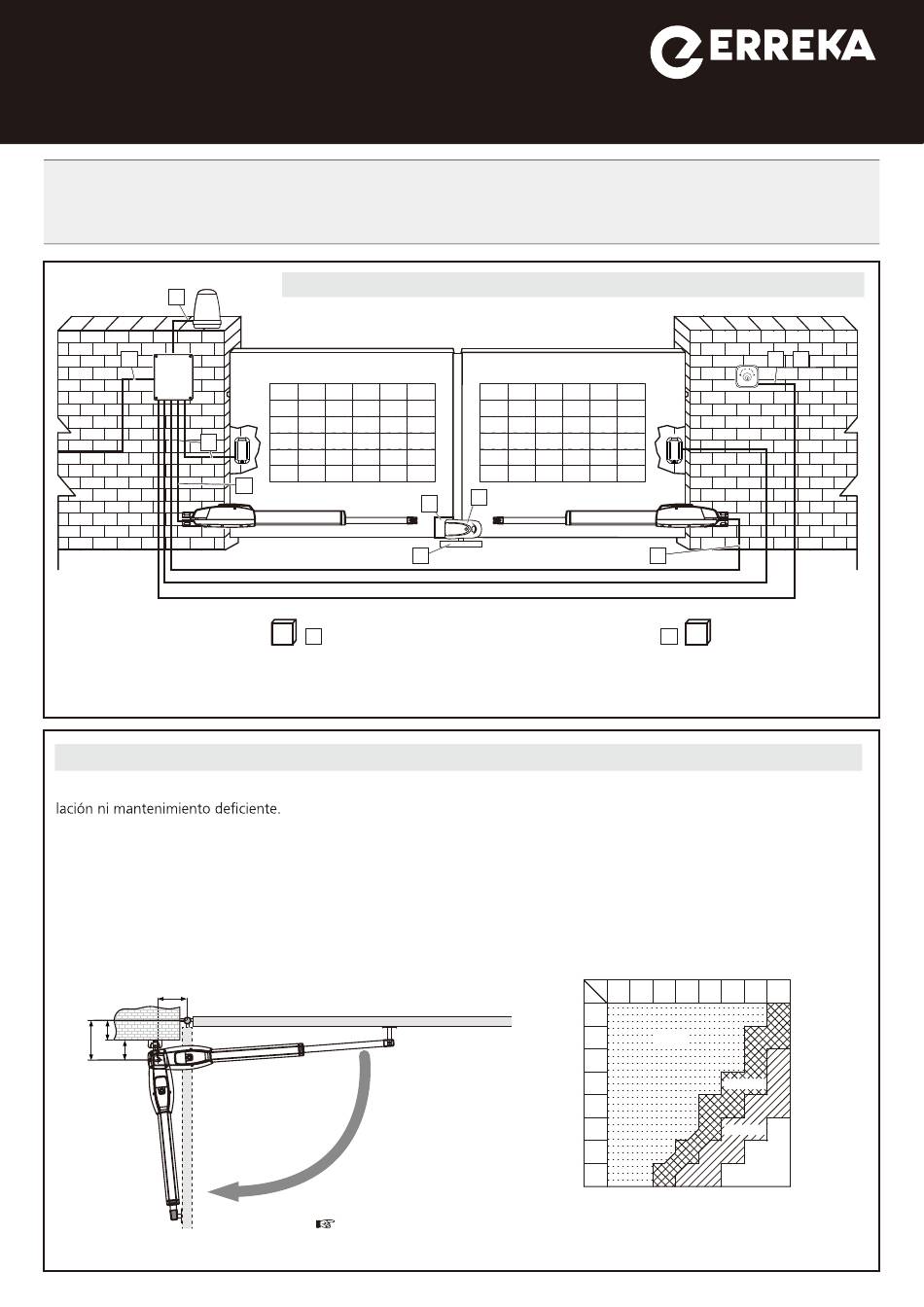

Elementos de la instalación completa
Elementos de la instalación completa
A
TA
F: Selector De Llave(2x0.5 mm²)
G: Lámpara De Señalización (2x0.5mm²)
H.I: Electro Cerradura (2x1mm²)
Cotas y posiciones de montaje
Por favor, asegúrese de que "B" y "A" tienen valores similares o iguales para que
las hojas puedan ser operadas sin problemas y para reducir la carga del motor.
H
TC
I
A
110
120
130
140
150
160
170
180
E
0
B
TA
TA: Tope puerta abierta
TC: Tope puerta cerrada
B
110
120 130 140 150 160
170 180
>120°
110°~120°
100°~110°
90°~100°
Apertura Interior
MSB-027/05
F
1 1
