MAXI

Quick installation and programming guide

This quick guide is a summary of the complete installation manual. The manual contains safety warnings and

other explanations which must be taken into account. The installation manual can be downloaded by going

WARNING

to the "Downloads" section of Erreka website:

http://www.erreka-automation.com

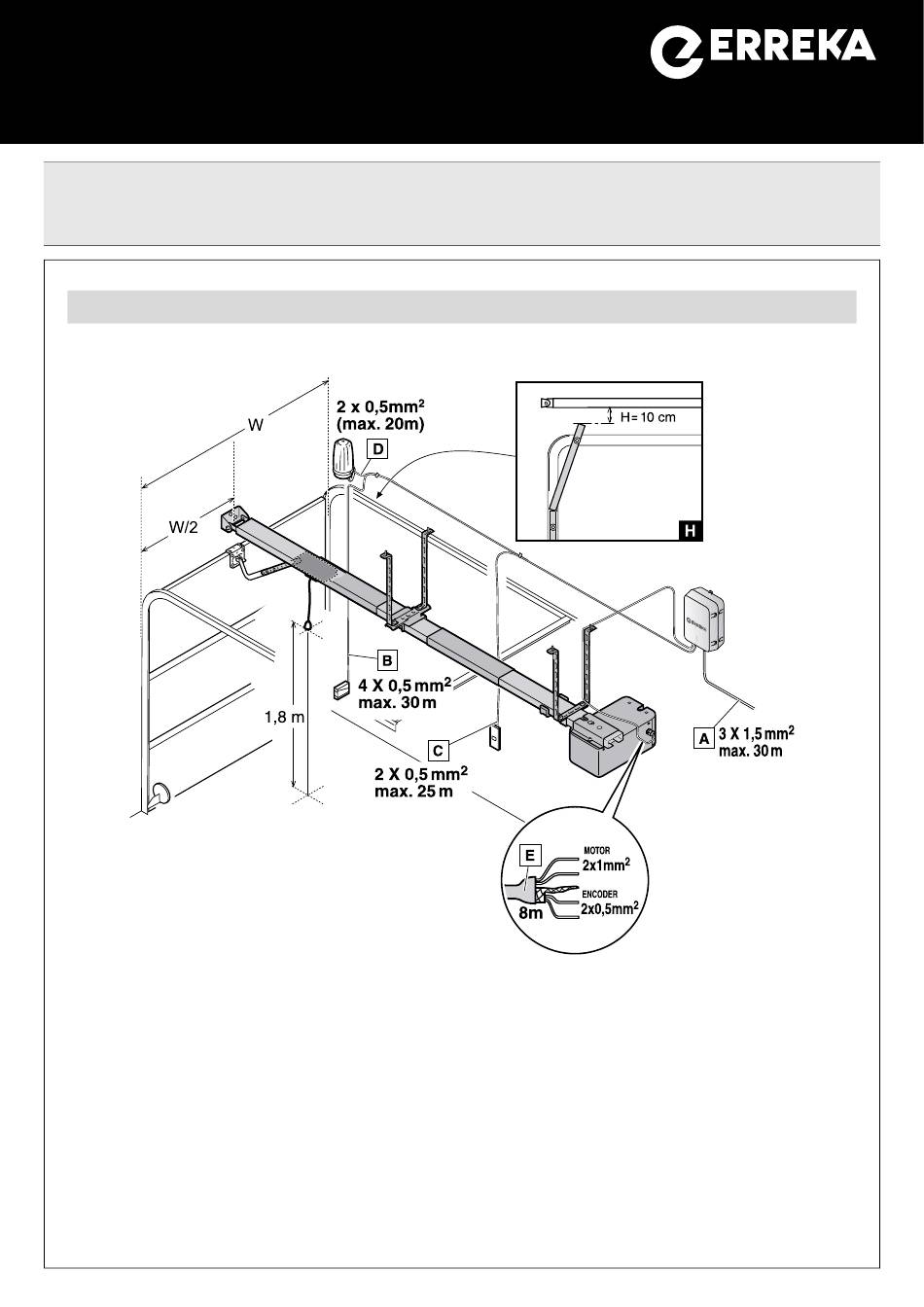

Electrical wiring

A: Main power supply

B: Closing photocells

C: Pushbutton / wall key

D: LUMI flashing light

E: Operator (motor / encoder)

Elements of the complete installation

Assembly levels

Level H: the track should remain 10 cm above the

highest point of the door (see detail H

Total length (operator + guide) / working stroke:

– track ref. AMX01: 3,380mm / 2,788mm

– track ref. AMX02: 4,480mm / 3,888mm

English

I277B

)

Need help?

Do you have a question about the MAXI and is the answer not in the manual?

Page 1 This quick guide is a summary of the complete installation manual. The manual contains safety warnings and other explanations which must be taken into account. The installation manual can be downloaded by going WARNING to the "Downloads" section of Erreka website: http://www.erreka-automation.com Elements of the complete installation...
Page 2 Unlocking and locking Unlocking Locking D277D D277C Unlocking for manual operation Motorised operation locking Pull the knob or cable (1) until the release lever (2) is Place the lever in horizontal position (3). Locking will take vertical. place when the operator starts up. Assembly 2 Position the overhead strips (3) and front support (4).
Page 3 3 Mount the track (1) + operator (2) on the supports (3) and (4). The track (1) must be horizontal. P277C 5 Tighten the nut as far as possible, 4 Position the anchoring (5) in the upper part of the door using the arms and then loosen it slightly until the (6) and (7), and couple it to the carriage (8).
Page 4 Disconnect the power supply before connecting or disconnecting any component.  The A.T., S and STOP devices must be voltage-free in order to prevent any damage to the control board. (max. 2300W) MAXI MXS120 P277Z A.T. Wall key or pushbutton Blue (motor) SG.C...
