LINCE
Guía rápida de instalación y programación
Esta guía rápida es un resumen del manual de instalación completo. Dicho manual contiene advertencias de seguridad
y otras explicaciones que deben ser tenidas en cuenta. Puede descargar la versión más actualizada de esta guía y
del manual de instalación en el apartado "Descargas" de la web de Erreka: http://www.erreka-automation.com
Las opciones y funciones descritas en la presente guía son aplicables a partir de la versión del firmware que se indica
AVISO
sobre el circuito. El firmware, como parte de un proceso de mejora continua, está sujeto a la incorporación de
nuevas funcionalidades o a su ampliación, y como consecuencia a la generación de nuevas versiones no
necesariamente compatibles con las anteriores. Por lo tanto, si la versión de su firmware es inferior a la indicada en
esta guía, es posible que algunas opciones y funciones no estén disponibles o sean diferentes.

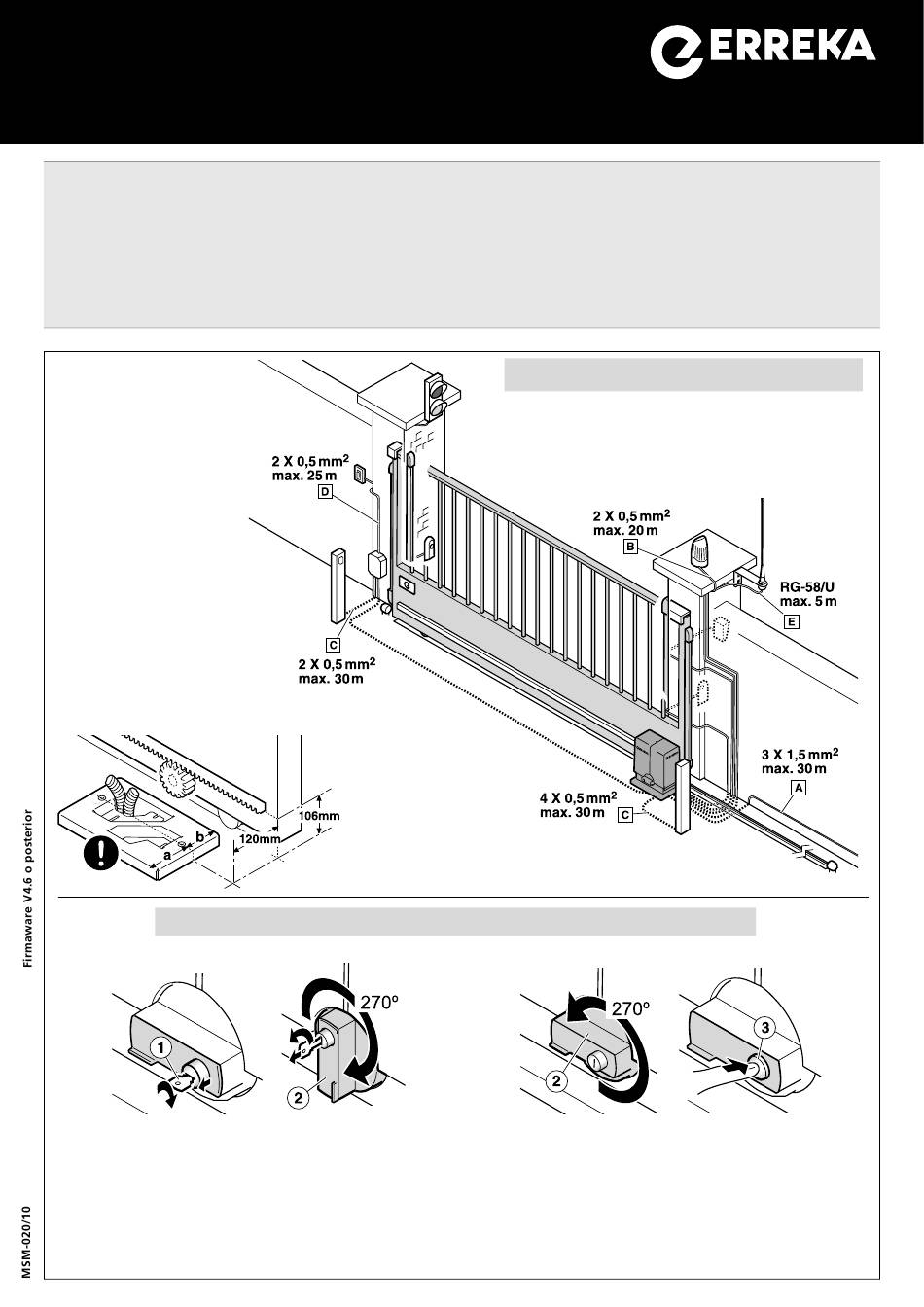

Cableado eléctrico
A: Alimentación general
B: Lámpara destellante
C: Fotocélulas (Tx / Rx)
D: Pulsador/ llave de pared
E: Antena
Cotas de montaje
Desbloqueo
Desbloqueo para accionamiento manual:
• Introduzca la llave (1) y gírela 90º sin forzarla, en
sentido horario: el bombillo saldrá unos milímetros.
• Gire la llave 90º en sentido anti-horario y extráigala.
• Gire la maneta (2) 270º en sentido horario, hasta el
tope.
O
ATENCIÓN: la placa base no
es simétrica (a > b)
C71A
Desbloqueo
D71A
• Gire la maneta (2) 270º en sentido anti-horario, hasta el
tope.
• Empuje el bombillo (3) hacia adentro y mueva a mano la
puerta para enclavarla en el mecanismo de accionamiento.
• Active un dispositivo de marcha, para que la puerta realice
el "reset".
Elementos de la instalación completa
Bloqueo
Bloqueo para accionamiento motorizado:
Español
E71A
D71B
1
