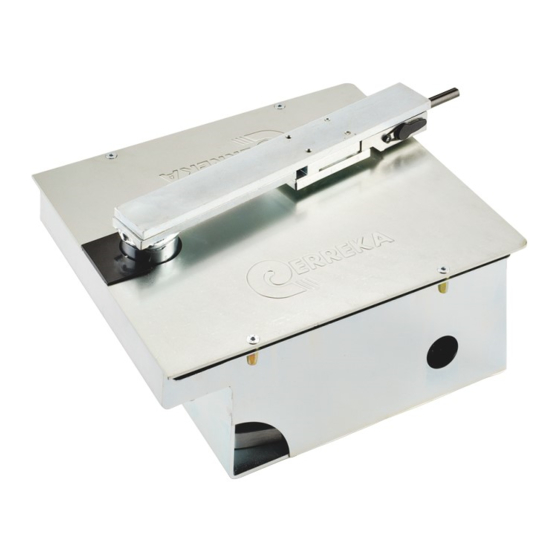

TOPO
Quick installation and programming guide
This quick guide is a summary of the complete installation manual. The manual contains safety warnings
IMPORTANT
and other explanations which must be taken into account. The installation manual can be downloaded by
NOTE
going to the "Downloads" section of Erreka website:
http://www.erreka.com/Automatismos/descargaDocumentos.aspx
TA

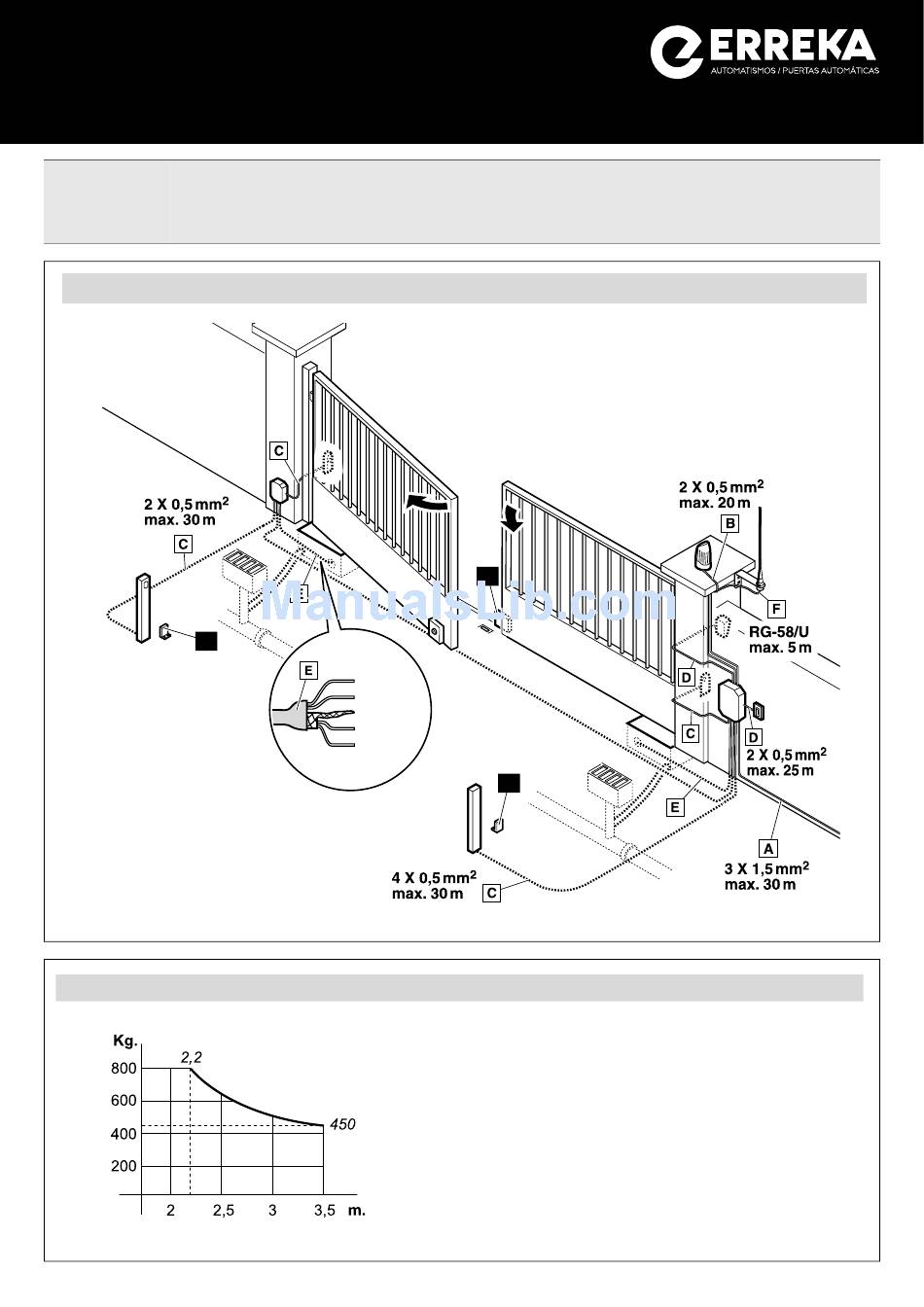

Electrical cabling
A: Main power supply
B: Flashing light
C: Photocells (Tx/Rx)
D: Pushbutton or key switch
E: Operator (motor / encoder)
F: Antenna
Elements of the complete installation
MOTOR
2
2x1mm
ENCODER
2
2x0,5mm
8m
Limits on use
G189A
The TC closing stopper must be installed in all
cases.
The TA opening external stopper is only necessary
with the 180º opening mechanism (chain).
TC
TA
We recommend using an electrolock for leaf
lengths of over 2.5m.
Values for orientation purposes. The shape
of the leaf and the presence of strong wind
may bring notable differences in the values
of the chart.
MSB-018/00
E189A
9
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Erreka TOPO
Summary of Contents for Erreka TOPO
- Page 1 This quick guide is a summary of the complete installation manual. The manual contains safety warnings IMPORTANT and other explanations which must be taken into account. The installation manual can be downloaded by NOTE going to the "Downloads" section of Erreka website: http://www.erreka.com/Automatismos/descargaDocumentos.aspx Elements of the complete installation ...
- Page 2 Unlocking Unlocking for manual operation: Motorised operation locking: D189A D189B A Insert the key in the lock (1) and turn it towards the A Turn the release lever (1) until it is located hinges of the gate. underneath the base (2). B Pull on the release lever (2), making it turn 90º.
- Page 3 Mounting the operator (opening mechanism up to 110º) 1 Install the operator (1) and the lever 2 Install the double arm (3) and the 3 Position the gate. (2). release arm (4). Tighten the nuts. Lubricate P189G P189E P189H 4 Position the rod (5) and bar (6). 5 Adjust the opening stopper (7).
- Page 4 • Programme C7 for operation with encoder (C701). closes until it reaches the stopper, assigning this • For the TOPO operator, programme C302. stopper with the position "gate closed" If it opens instead of closes during reset, change the turning direction (C101 or C102 for A1 and C201 or C202 for A2).
