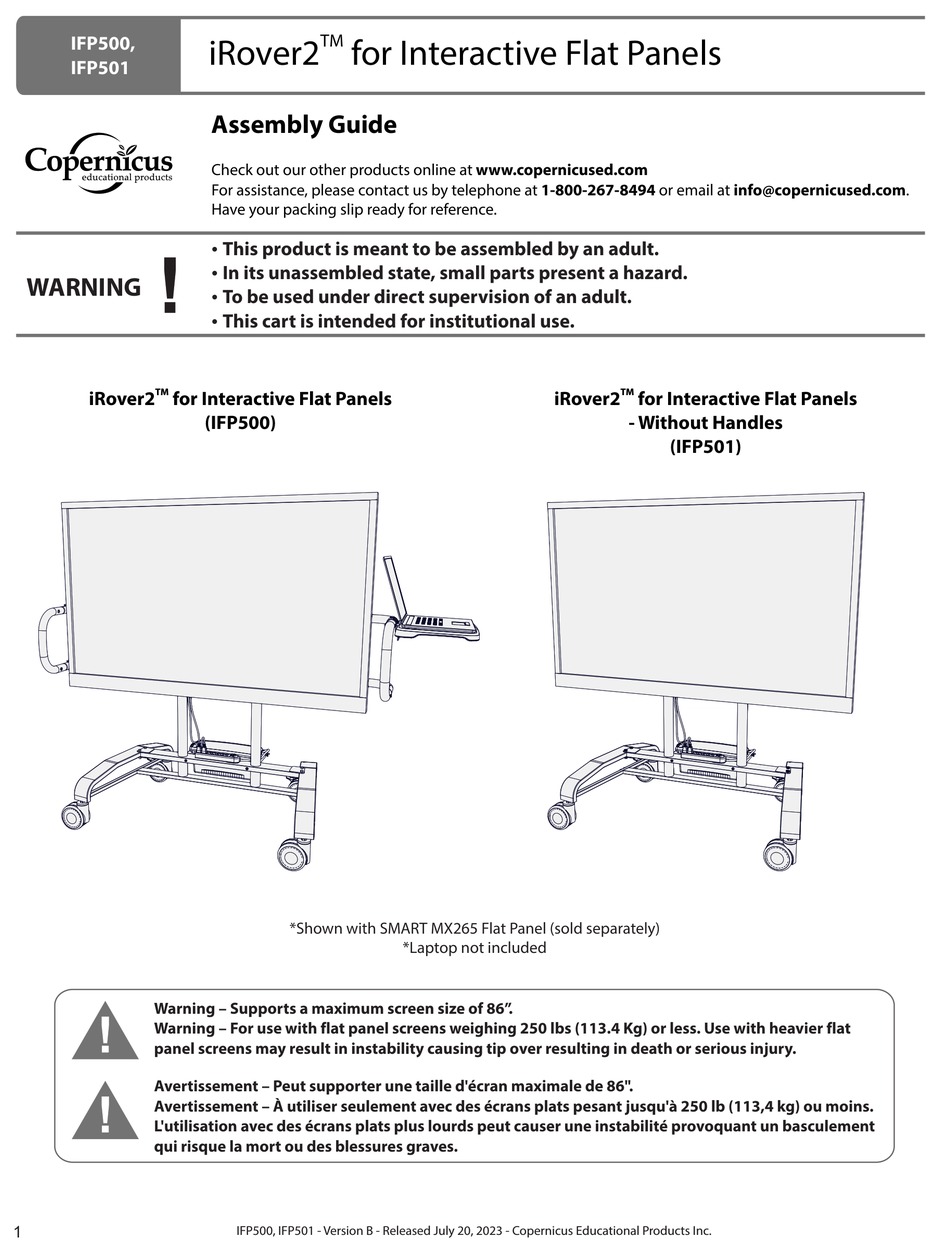

IFP500,
IFP501
WARNING
TM
iRover2 for Interactive Flat Panels
Warning – Supports a maximum screen size of 86".
Warning – For use with flat panel screens weighing 250 lbs (113.4 Kg) or less. Use with heavier flat
panel screens may result in instability causing tip over resulting in death or serious injury.
Avertissement – Peut supporter une taille d'écran maximale de 86".
Avertissement – À utiliser seulement avec des écrans plats pesant jusqu'à 250 lb (113,4 kg) ou moins.
L'utilisation avec des écrans plats plus lourds peut causer une instabilité provoquant un basculement
qui risque la mort ou des blessures graves.
1
TM
iRover2 for Interactive Flat Panels
Assembly Guide
Check out our other products online at www.copernicused.com
For assistance, please contact us by telephone at 1-800-267-8494 or email at info@copernicused.com.
Have your packing slip ready for reference.
This product is meant to be assembled by an adult.
Ÿ
In its unassembled state, small parts present a hazard.
Ÿ
To be used under direct supervision of an adult.
Ÿ
This cart is intended for institutional use.
Ÿ
(IFP500)

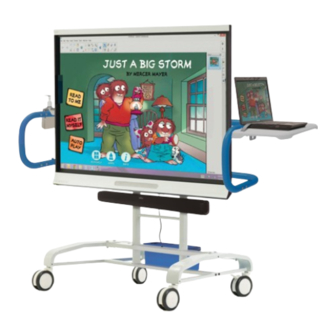

*Shown with SMART MX265 Flat Panel (sold separately)
IFP500, IFP501 - Version B - Released July 20, 2023 - Copernicus Educational Products Inc.
iRover2 for Interactive Flat Panels
*Laptop not included
TM
- Without Handles
(IFP501)

Advertisement

loading
Need help?

Need help?

Do you have a question about the iRover2 IFP500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Copernicus iRover2 IFP500

Summary of Contents for Copernicus iRover2 IFP500

  • Page 1 Avertissement – À utiliser seulement avec des écrans plats pesant jusqu'à 250 lb (113,4 kg) ou moins. L'utilisation avec des écrans plats plus lourds peut causer une instabilité provoquant un basculement qui risque la mort ou des blessures graves. IFP500, IFP501 - Version B - Released July 20, 2023 - Copernicus Educational Products Inc.
  • Page 2 Registering your warranty ensures we have all the information we need to make any future warranty claims quick and easy. Please visit www.copernicused.com/warranty and complete the form within 10 business days from product assembly. By registering your product, you will be entered into a draw to win Copernicus product. Make a Warranty Claim We offer a Lifetime Warranty on almost everything we make.
  • Page 3 Electrical Do not install or use the electrical components of this unit during a lightning storm. Shock IFP500, IFP501 - Version B - Released July 20, 2023 - Copernicus Educational Products Inc.
  • Page 4 Front (320832) (340861) (33175) Hardware inside this box 20 lbs Weight Limit M5 x 16mm Screw M5 Square Nut *Laptop Tray and hardware packaged together IFP500, IFP501 - Version B - Released July 20, 2023 - Copernicus Educational Products Inc.
  • Page 5 20 lbs Weight Limit 5 lbs Weight Limit Hardware inside this box M5 x 16mm Screw M5 Square Nut *Laptop Tray and hardware packaged together IFP500, IFP501 - Version B - Released July 20, 2023 - Copernicus Educational Products Inc.
  • Page 6 Allen Key 4mm M6 x 15mm Screw M6 Lock Washer (not to scale) (43272) (43215) (43273) (43281) M6 x 30mm Screw (with thread lock) (43231) IFP500, IFP501 - Version B - Released July 20, 2023 - Copernicus Educational Products Inc.
  • Page 7 M6 x 20mm VESA Screw M8 x 15mm VESA Screw M8 x 25mm VESA Screw (432151) (43222) (432764) (432765) M8 x 40mm 3/4” Spacer (432762) (4303141) IFP500, IFP501 - Version B - Released July 20, 2023 - Copernicus Educational Products Inc.

  • Page 8: Install Casters

    Tip: tilt your unit on its back for easier caster installation Install locking casters on back of unit and tighten using supplied Caster Wrench. (Back) (Front) IFP500, IFP501 - Version B - Released July 20, 2023 - Copernicus Educational Products Inc.
  • Page 9 You will need: (Not to Scale) Adjustable wrench (2x) Electric Lift Install Electric Lift Tip: Install top bolt first Note orientation of the Electric Lift Tighten bolts IFP500, IFP501 - Version B - Released July 20, 2023 - Copernicus Educational Products Inc.
  • Page 10 (showing back of unit) Install Bottom Shelf Actual Size: You will need: (Not to Scale) Screwdriver Phillips #2 or #3 Laptop Tray Rear Mount Install Rear Laptop Mount IFP500, IFP501 - Version B - Released July 20, 2023 - Copernicus Educational Products Inc.
  • Page 11 Flat Panel (4x) (4x) For TVs without a flat back (Ex. Promethean) use the provided 3/4” spacers and longer screws. Install spacers between mount and TV. IFP500, IFP501 - Version B - Released July 20, 2023 - Copernicus Educational Products Inc.
  • Page 12 Do not secure in these holes, they are used for attaching an optional soundbar mount Install screws in holes with threads, only 2 of 4 holes will have threads IFP500, IFP501 - Version B - Released July 20, 2023 - Copernicus Educational Products Inc.
  • Page 13 Secure Flat Panel To Cart Insert all 4 adapters into keyholes. Insert all 4 Safety Screws Lock all casters before attaching flat panel to cart IFP500, IFP501 - Version B - Released July 20, 2023 - Copernicus Educational Products Inc.
  • Page 14 Install Protective Handles (SKIP THIS STEP IF BUILDING IFP501) Position & Secure Handles Extensions Position handle close to your Choose handles position flat panel and secure (4x) Install Protective Handles Fronts IFP500, IFP501 - Version B - Released July 20, 2023 - Copernicus Educational Products Inc.
  • Page 15 Cable & Remote Connect and secure your electric lift cable Use remote hook to hang remote on cart Place power adapter in tub for storage IFP500, IFP501 - Version B - Released July 20, 2023 - Copernicus Educational Products Inc.

  • Page 16: Securing Your Device

    Actual Size: You will need: (Not to Scale) Laptop Tray 20 lbs Weight Limit Securing Your Device Lift up strap Slide in your device IFP500, IFP501 - Version B - Released July 20, 2023 - Copernicus Educational Products Inc.
  • Page 17 Attaching Laptop Tray To Cart In-use Position On Left or Right Handles In-use Position On On Top or Bottom Back of Cart Storage Position On Back of Cart IFP500, IFP501 - Version B - Released July 20, 2023 - Copernicus Educational Products Inc.

  • Page 18: Cable Routing

    Raise flat panel to max height before routing cables. This ensures they have enough length when adjusting cart height. Laptop tray can install on both sides IFP500, IFP501 - Version B - Released July 20, 2023 - Copernicus Educational Products Inc.

  • Page 19: Final Assembly Checks

    Check entire assembly for loose parts; tighten all casters, bolts, screws and nuts Tighten all casters using supplied Caster Wrench. Keep wrench with unit. Casters must be tightened every 6 months for proper maintenance. IFP500, IFP501 - Version B - Released July 20, 2023 - Copernicus Educational Products Inc.
  • Page 20 APPLY MOVING FORCE NEVER APPLY FORCE AT ONLY ADULTS SHOULD PUSH, DON’T PULL ON NARROW TOP - ALWAYS PUSH MOVE THIS UNIT DIMENSION NEAR MIDDLE IFP500, IFP501 - Version B - Released July 20, 2023 - Copernicus Educational Products Inc.
