Copernicus Royal Inspiration Station Assembly Manual
Hide thumbs Also See for Royal Inspiration Station:

Advertisement

Quick Links

STANDARD
WARNING
Chart Paper Support (1)
Whiteboard Supports (2)
Whiteboard (1)
Page Paw (2)
Ultra Safe
Premium Bookledge
(1)
Big Book Rack (4)
Front Frame (2)
Tub Rack (1)
Really Big Tub (1)
Please Recycle

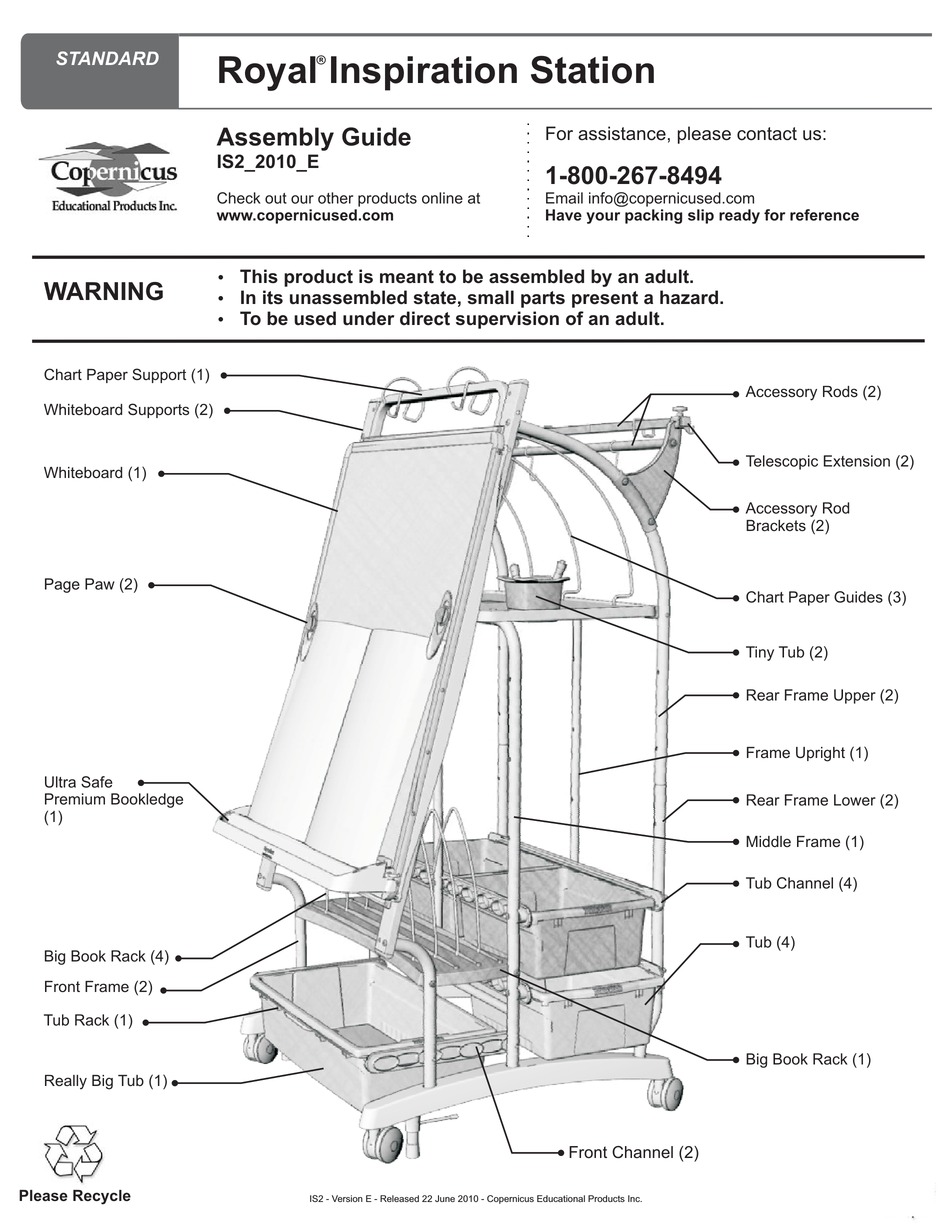

Royal Inspiration Station
R
Assembly Guide
IS2_2010_E
Check out our other products online at
www.copernicused.com
?
This product is meant to be assembled by an adult.
?
In its unassembled state, small parts present a hazard.
?
To be used under direct supervision of an adult.
IS2 - Version E - Released 22 June 2010 - Copernicus Educational Products Inc.
For assistance, please contact us:
1-800-267-8494
Email info@copernicused.com
Have your packing slip ready for reference
Front Channel (2)
Accessory Rods (2)
Telescopic Extension (2)
Accessory Rod
Brackets (2)
Chart Paper Guides (3)
Tiny Tub (2)
Rear Frame Upper (2)
Frame Upright (1)
Rear Frame Lower (2)
Middle Frame (1)
Tub Channel (4)
Tub (4)
Big Book Rack (1)

Advertisement

loading
Need help?

Need help?

Do you have a question about the Royal Inspiration Station and is the answer not in the manual?

Questions and answers

Summary of Contents for Copernicus Royal Inspiration Station

  • Page 1 Tub Channel (4) Tub (4) Big Book Rack (4) Front Frame (2) Tub Rack (1) Big Book Rack (1) Really Big Tub (1) Front Channel (2) Please Recycle IS2 - Version E - Released 22 June 2010 - Copernicus Educational Products Inc.
  • Page 2 Upper (31058) (23208) (33031) Rear Hanging Front Middle Frame Chart Paper Hook Channel Support 1 Left, 1 (33032) (31061) (33034) Right (23209 - Set) (23209R) (23209L) IS2 - Version E - Released 22 June 2010 - Copernicus Educational Products Inc.
  • Page 3 Driver for Cordless Drill Caster (Not to Scale) Bag of 4 (43280) (41003C) Optional use for faster assembly Individual Allen Key Bag of extra hardware (43281) IS2 - Version E - Released 22 June 2010 - Copernicus Educational Products Inc.
  • Page 4 Time Time Frame Warranty Warranty “ y idea of education is to unsettle the minds of the young and inflame their intellects.” - Robert Maynard Hutchins IS2 - Version E - Released 22 June 2010 - Copernicus Educational Products Inc.
  • Page 5 Press Casters firmly into the Base: Casters will click into place If necessary, place a wrench between the wheels & tap in with a rubber mallet IS2 - Version E - Released 22 June 2010 - Copernicus Educational Products Inc.
  • Page 6 Rear Frame Upper Frame Upright - 32” Stretcher - 27.5” Build Rear Frame Note the label on the Frame Upright, and ensure the part is installed correctly IS2 - Version E - Released 22 June 2010 - Copernicus Educational Products Inc.
  • Page 7 Support. Fasten bottom bolts first DO NOT OVER TIGHTEN! Left Whiteboard Right Support Whiteboard Support Fasten bottom bolts first Left Side Right Side Bottom mounting hole IS2 - Version E - Released 22 June 2010 - Copernicus Educational Products Inc.
  • Page 8 If not, retrace your steps to ensure that everything is correct and make sure that all fasteners are tight. Once all fasteners are tightened, unit should look like this. IS2 - Version E - Released 22 June 2010 - Copernicus Educational Products Inc.
  • Page 9 - Fasten using M6 30mm bolts, 6mm lock washers & acorn nuts - Tighten bolts Peel off plastic film on the Whiteboard before use Lock Brakes IS2 - Version E - Released 22 June 2010 - Copernicus Educational Products Inc.
  • Page 10 Hooks snap onto the frame easily Snap Slide bag free once the hook has been snapped onto the frame. Place bag here for protection IS2 - Version E - Released 22 June 2010 - Copernicus Educational Products Inc.
  • Page 11 Book Ledge. Actual Size: You will need: (Not to Scale) Big Book Rack x 1 Big Book Rack Divider x 4 Install Big Book Rack & Dividers IS2 - Version E - Released 22 June 2010 - Copernicus Educational Products Inc.
  • Page 12 Chart Paper Guide x 3 Install Chart Paper Guides Install the Chart Paper Guides into the holes in the Top Shelf Press Guides firmly into place Ensure Guides are secure IS2 - Version E - Released 22 June 2010 - Copernicus Educational Products Inc.
  • Page 13 Accessory Rod Bracket. Fasten. Fasten the ends of the Round Accessory Rod to the Accessory Brackets Fasten. Detail ‘A’ Ensure hole is turned upwards Note Hook orientation IS2 - Version E - Released 22 June 2010 - Copernicus Educational Products Inc.
  • Page 14 Align the Front Channels with the bottom holes on the Middle and Front Frame It may help to loosely install first, and tighten once both bolts are through the part. IS2 - Version E - Released 22 June 2010 - Copernicus Educational Products Inc.
  • Page 15 Standard Inspiration Station to this will make the other the Premium model if you two bolts easier to need more tubs. See our website for more information. IS2 - Version E - Released 22 June 2010 - Copernicus Educational Products Inc.
  • Page 16 You will need: (Not to Scale) Open Tub x 3 Divided Tub x 1 Tiny Tub x 2 Insert Tubs Angle tub into the Channel Slide IS2 - Version E - Released 22 June 2010 - Copernicus Educational Products Inc.
