Hardware Overview
Note: For more details on the Tsunami Super WAV Trigger (Qwiic) check out these resources from the
Robertsonics website:
Tsunami User Guide
Tsunami Product Page and FAQ
Robertsonics Tutorial Page
Board Dimensions
The dimensions for the Qwiic Tsunami are essentially the same as the original Tsunami. The overall board size is
2.95" x 2.925" (approx. 7.5cm x 7.4cm) and includes four 0.13" mounting holes, which are compatible with
standard 4-40 screws.
Power
WARNING: The input voltage on the Qwiic Tsunami is limited to 5 - 10V; while the original Tsunami had a
voltage range up to 15V. Users swapping or replacing boards should be aware of this change; exceeding the
input voltage range will damage the board permanently.
There is a status LED to help make sure that the Qwiic Tsunami is getting power. On the Qwiic Tsunami, users can
power the board through either the USB-C connector or the power breakout pins (
recommend users power the board through the USB-C connector.

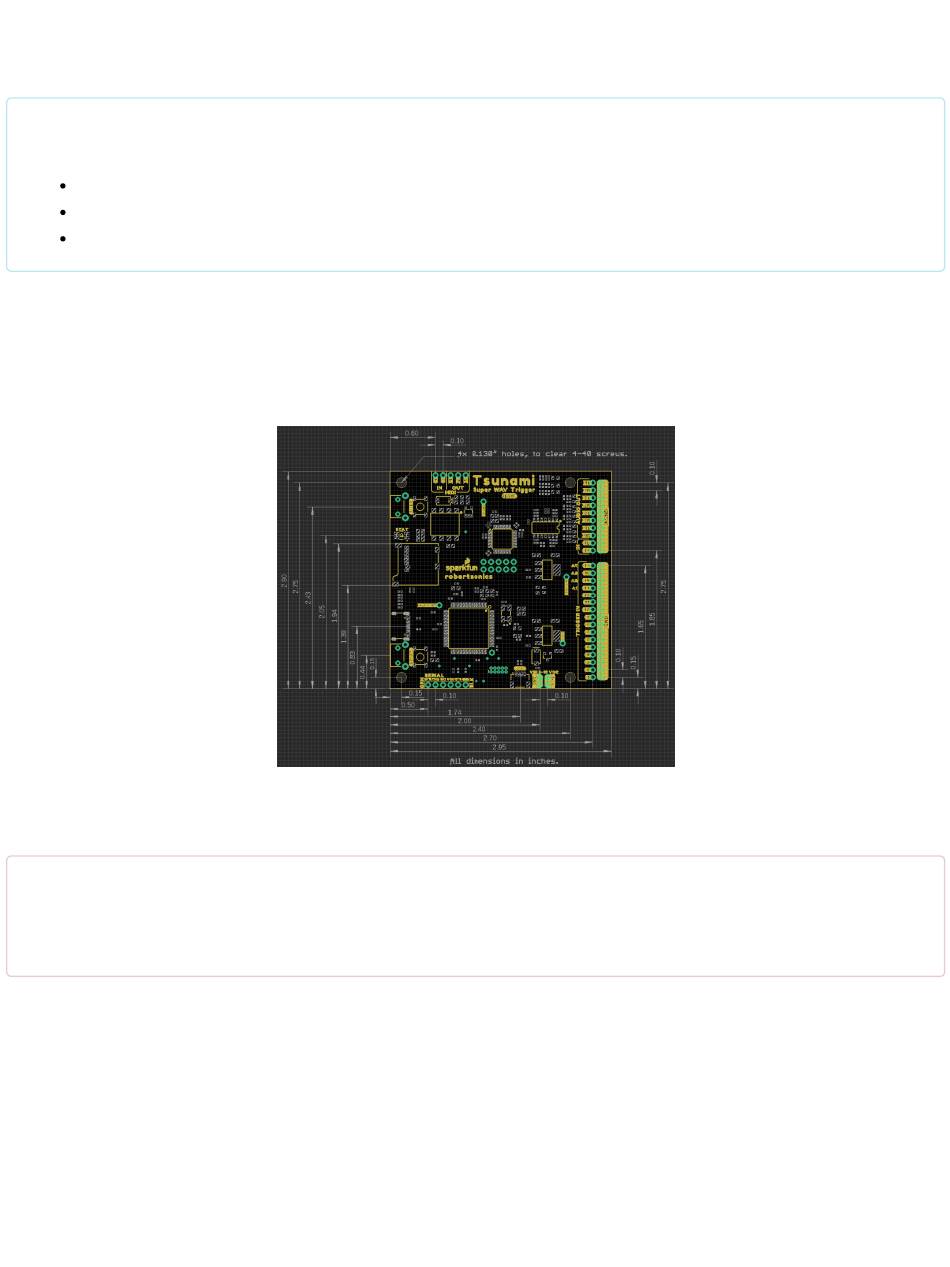

The dimensions for the Qwiic Tsunami. (Click to enlarge)
and
). We
VIN
GND
