Three Quick Tips About Using U.FL
Quick tips regarding how to connect, protect, and
disconnect U.FL connectors.
Hardware Overview
Input Power

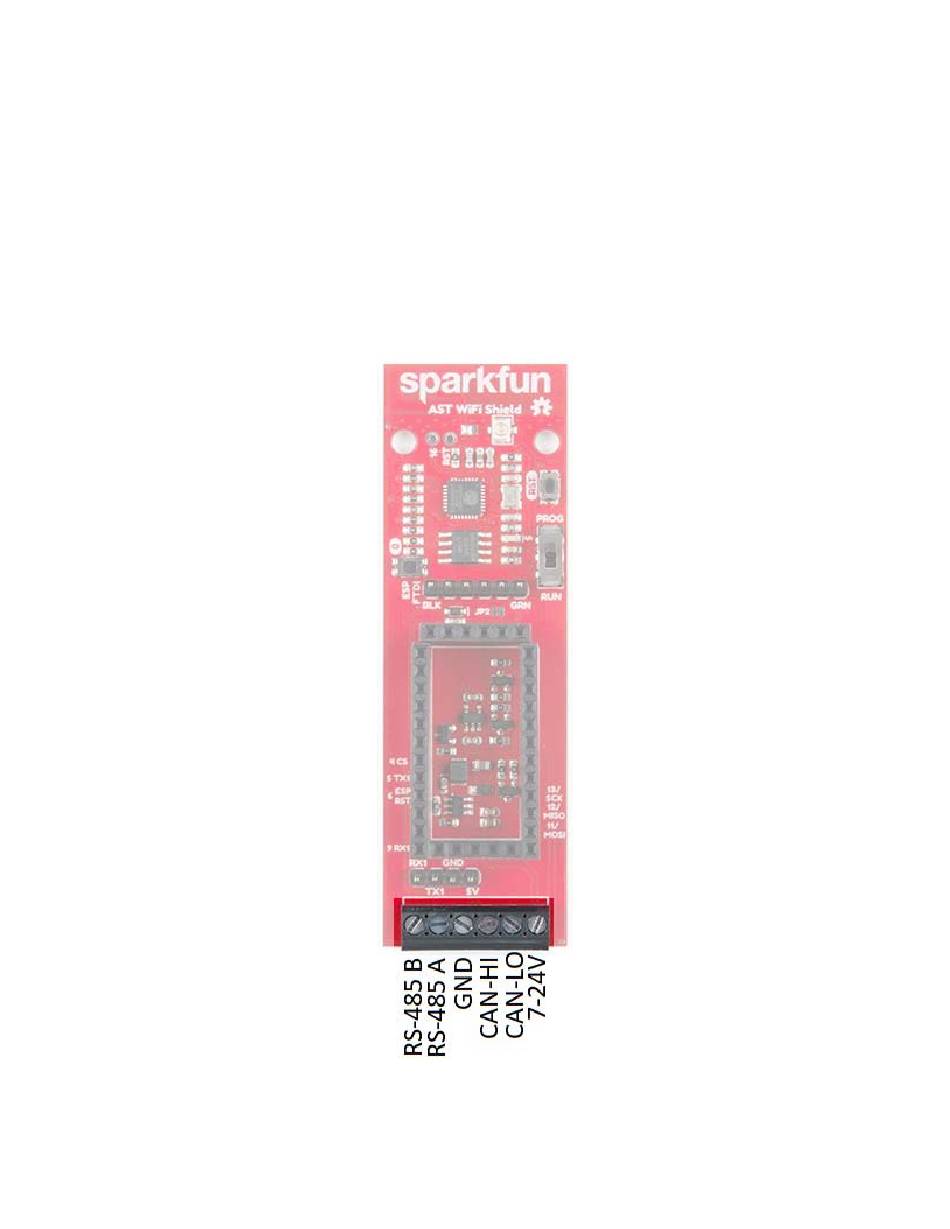

The AST-CAN485 WiFi Shield provides screw terminals for your power, RS-485 signals, and CAN bus
signals, presoldered to the board for fast and secure connections.
The input voltage range is 7-24VDC. The input voltage is regulated down to 5V to supply power the
CAN485 board, as well as 3.3V to power the ESP8266.
