Hardware Assembly - sparkfun WIG-13660 Manual

For the examples in the following section, users will need to prepare their card with the demonstration files we
provide.
1. Download the example files using the link below.
2. Unzip the folder and put the files on the root directory of the card.
3. Verify the files on the µSD card.

Hardware Assembly

Basic Operation
The basic operation of the Qwiic Tsunami only requires the use of the trigger pins to interact with the board. For
the example in the next section, users must insert their configured µSD card with
headphones to the Qwiic Tsunami.
Inserting the µSD Card
Inserting the µSD card, prepared from the previous section, is straight forward. The µSD card slot contains a
spring-loaded locking mechanism:
Insert the card and press in to lock the card into the slot.
Press in to unlock and remove the card from the slot.
Connecting the Headphone Jack
Note: If users experience problems with the audio output to their headphones, there are different headphone
connector standards that might be the issue. If that is the case, users only need to swap the connection from
pin on TRRS 3.5mm breakout board to the
SLEEVE
DEMO TSUNAMI FILES (.ZIP)

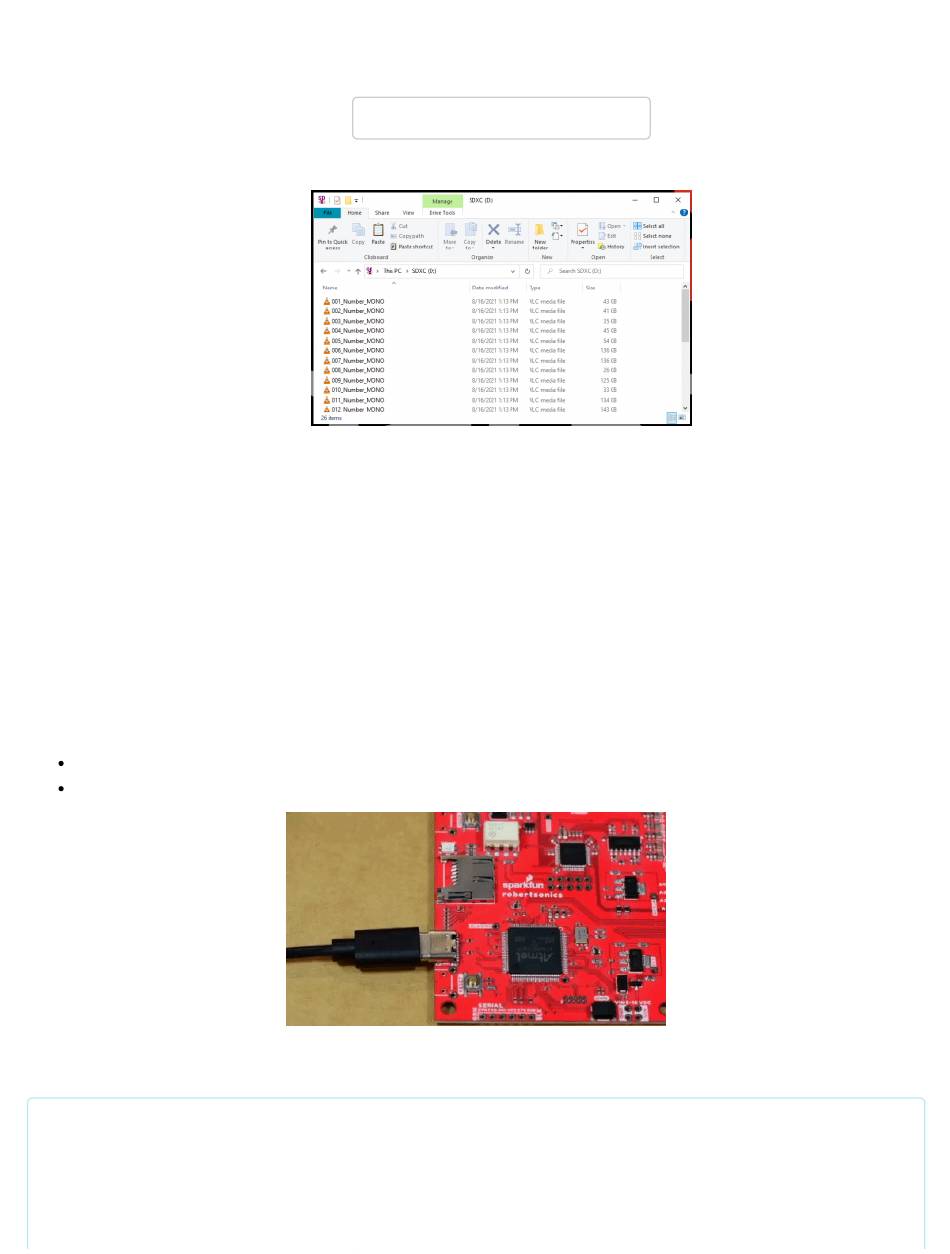

Files on the card
The inserting an µSD card into the Qwiic Tsunami.
RING2
*.wav
pin.
files and connect their
