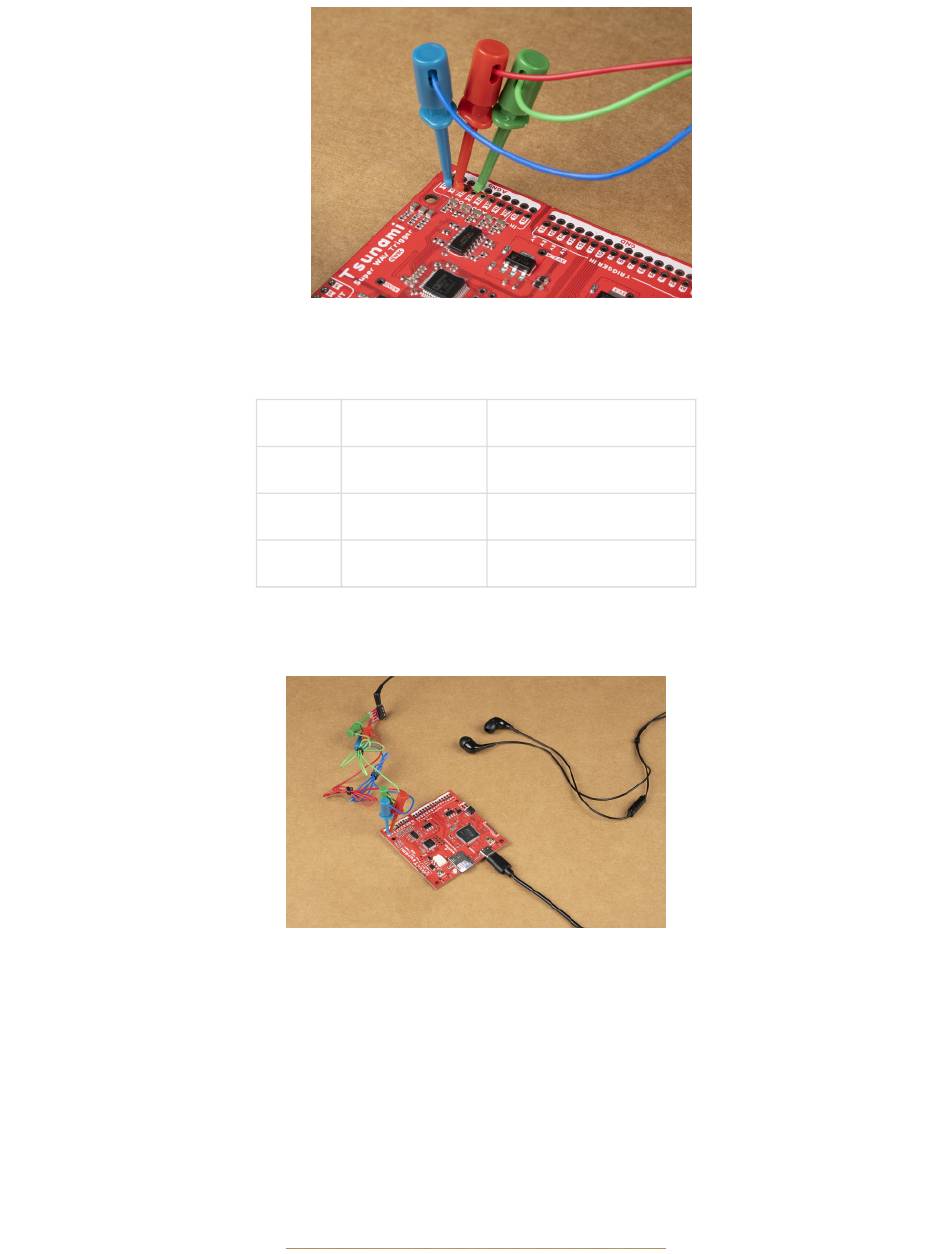

Attaching the IC hooks to the audio output channels of the Qwiic Tsunami. (Click to enlarge)
Below, is a table summarizing the cable connections between the Qwiic Tsunami's pins and the TRRS 3.5mm jack
breakout board's pins:
Finally, users will need to connect their headphones to the TRRS 3.5mm jack breakout board. The overall
hardware assembly should resemble the image below:
Completed assembly with headphones attached and the Qwiic Tsunami powered through a USB cable. (Click to
For a more permanent solution, users can solder the boards together with hook-up wire.
Assembly for Arduino (Qwiic) Example
The assembly for the example in the Arduino library section is similar to the previous assembly. Users only need to
connect their RedBoard Plus to the Qwiic Tsunami with a Qwiic cable. The RedBoard Plus should also be
connected to their computer with a USB cable.
Qwiic Tsunami
Cable 1
1L
Cable 2
1R
Cable 3
AGND
enlarge)
TRRS Breakout Board
TIP
RING1
SLEEVE
