MIDI Pins
Note: The MIDI pins are the only exception to the 3.3V logic-level input voltage, as the pins are opto-isolated.
Therefore, the pins can directly interface with the 5V logic levels of the MIDI standard.
The Qwiic Tsunami can be connected with MIDI controllers and instruments; users only need to solder the pins to
a 5-pin DIN connector. For more details, users can checkout the Tsunami User Guide and tutorial on the
Robertsonics website.
Buttons
There are two PTH breakouts for the two user buttons. These allow users to solder on their own right-angle
buttons for a panel mounted operation.
The serial control pins on the Qwiic Tsunami. (Click to enlarge)

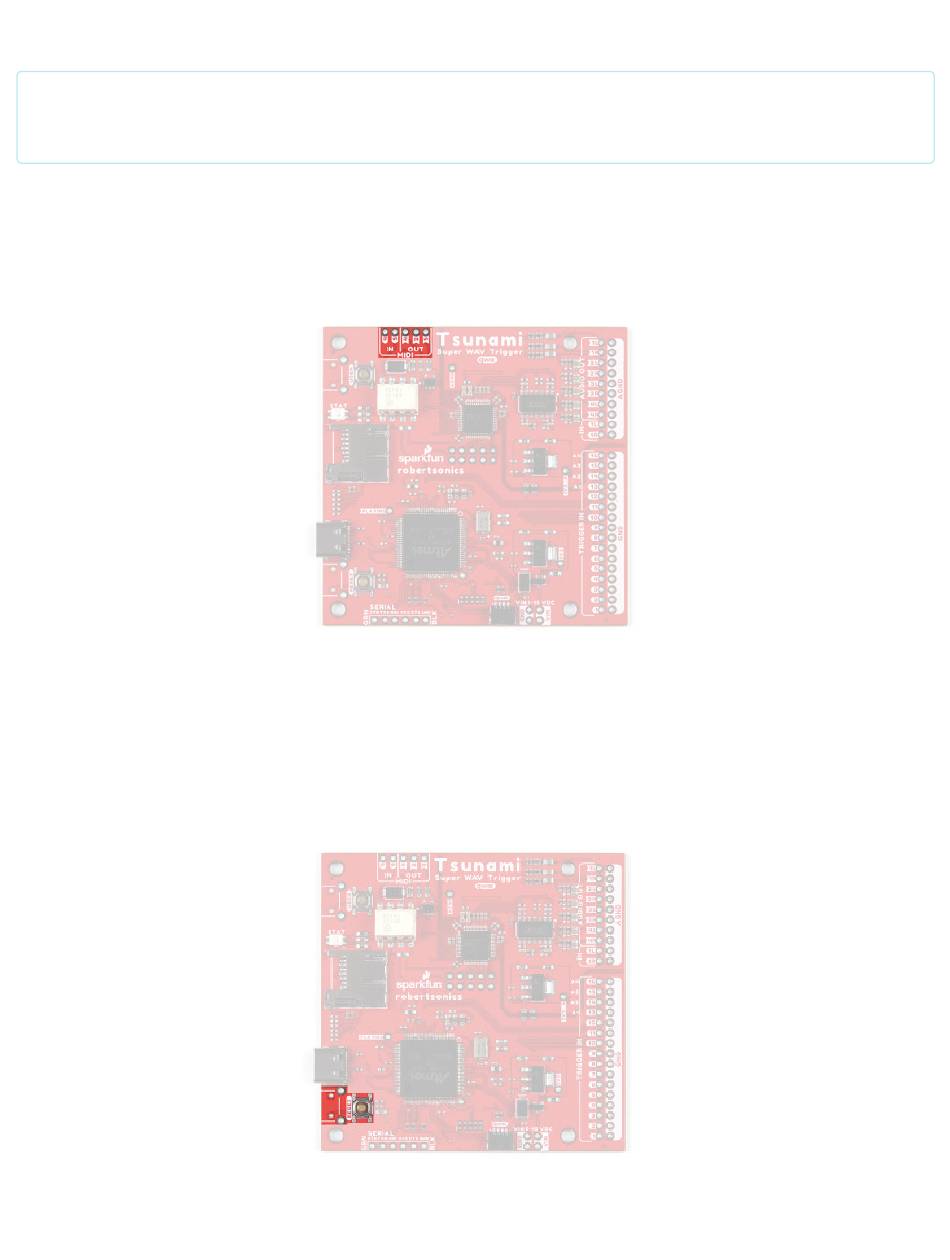

The MIDI interface pins on the Qwiic Tsunami. (Click to enlarge)
The reset breakout pins on the Qwiic Tsunami. (Click to enlarge)
