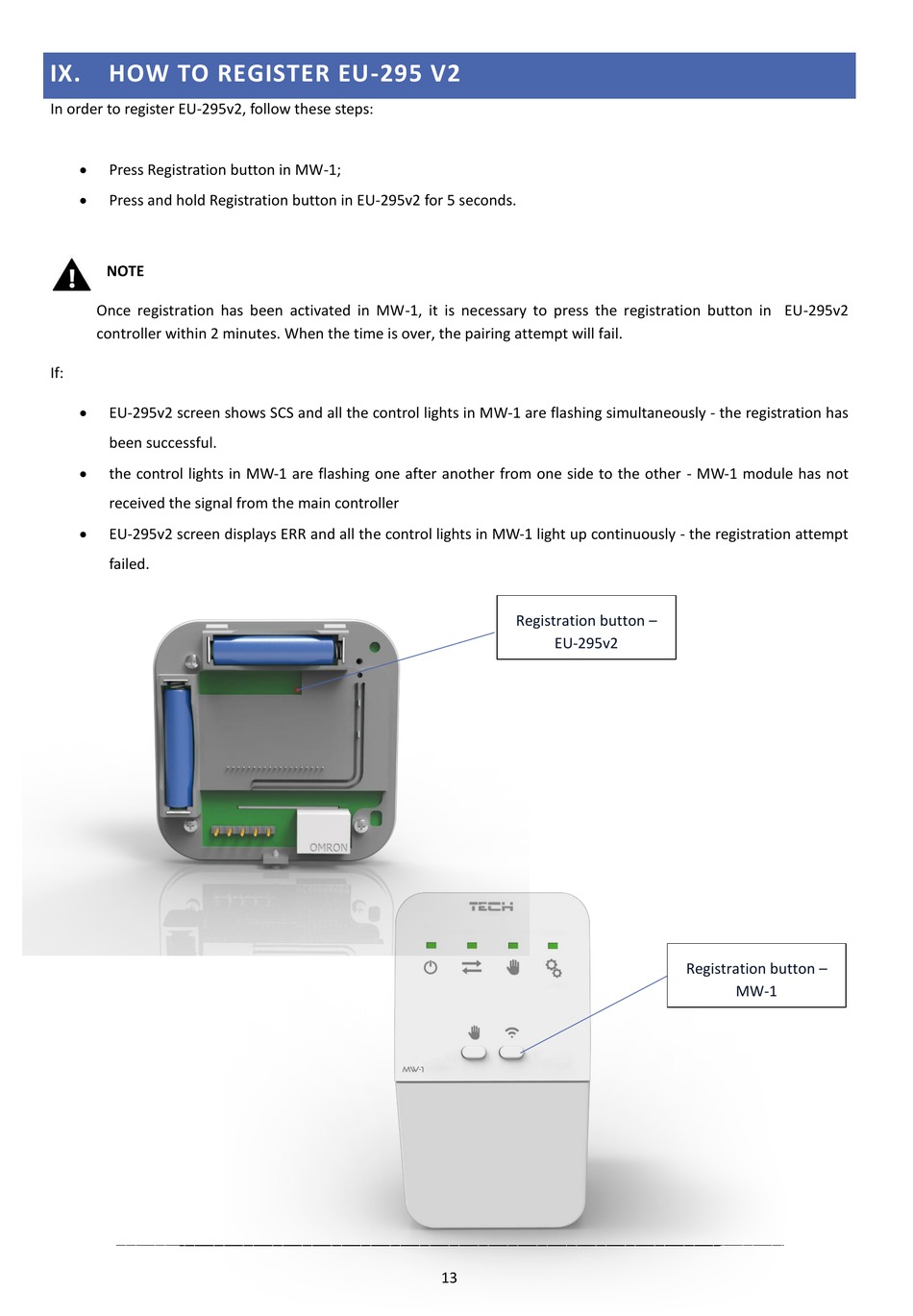

IX.

HOW TO REGISTER EU-295 V2

In order to register EU-295v2, follow these steps:

Press Registration button in MW-1;

Press and hold Registration button in EU-295v2 for 5 seconds.
NOTE
Once registration has been activated in MW-1, it is necessary to press the registration button in EU-295v2
controller within 2 minutes. When the time is over, the pairing attempt will fail.
If:

EU-295v2 screen shows SCS and all the control lights in MW-1 are flashing simultaneously - the registration has
been successful.

the control lights in MW-1 are flashing one after another from one side to the other - MW-1 module has not
received the signal from the main controller

EU-295v2 screen displays ERR and all the control lights in MW-1 light up continuously - the registration attempt
failed.
Registration button –
EU-295v2
13
Registration button –
MW-1
