Micropilot FMR56, FMR57 FOUNDATION Fieldbus
•  key and  key (ESC function - press keys simultaneously)
• In the menu, submenu: Pressing the key briefly:
• Exits the current menu level and takes you to the next higher level.
• If help text is open, closes the help text of the parameter.
• Pressing the key for 2 s returns you to the measured value display ("home position").
• In a text and numeric editor: Closes the text or numeric editor without applying changes.
•  key and  key (press keys simultaneously)
Reduces the contrast (brighter setting).
•  key and  key (press and hold keys simultaneously)
Increases the contrast (darker setting).
9.2

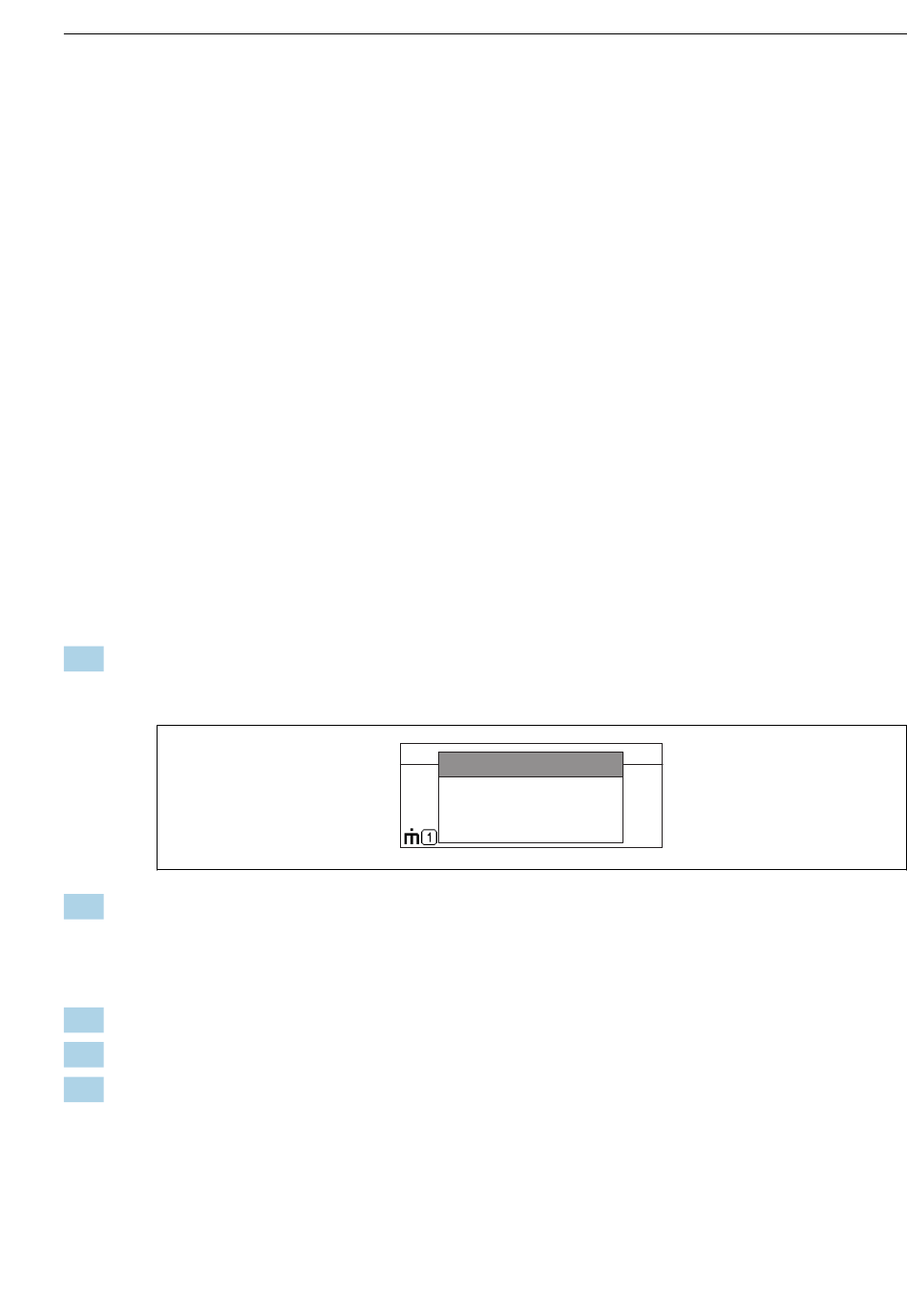

Opening the context menu

Using the context menu, the user can call up the following menus quickly and directly from
the operational display:
• Setup
• Conf. backup disp.
• Envelope curve
• Keylock on
Calling up and closing the context menu
The user is in the operational display.
1. Press  for 2 s.
 The context menu opens.
2. Press  +  simultaneously.
 The context menu is closed and the operational display appears.
Calling up the menu via the context menu
1. Open the context menu.
2. Press  to navigate to the desired menu.
3. Press  to confirm the selection.
 The selected menu opens.
Endress+Hauser
XXXXXXXXXX
Setup
Conf.backup disp
Env. curve
Keylock on
50
kg/h
Commissioning
A0037872
