Mounting
5.6.2 Horn antenna with mounting bracket (FMR56)

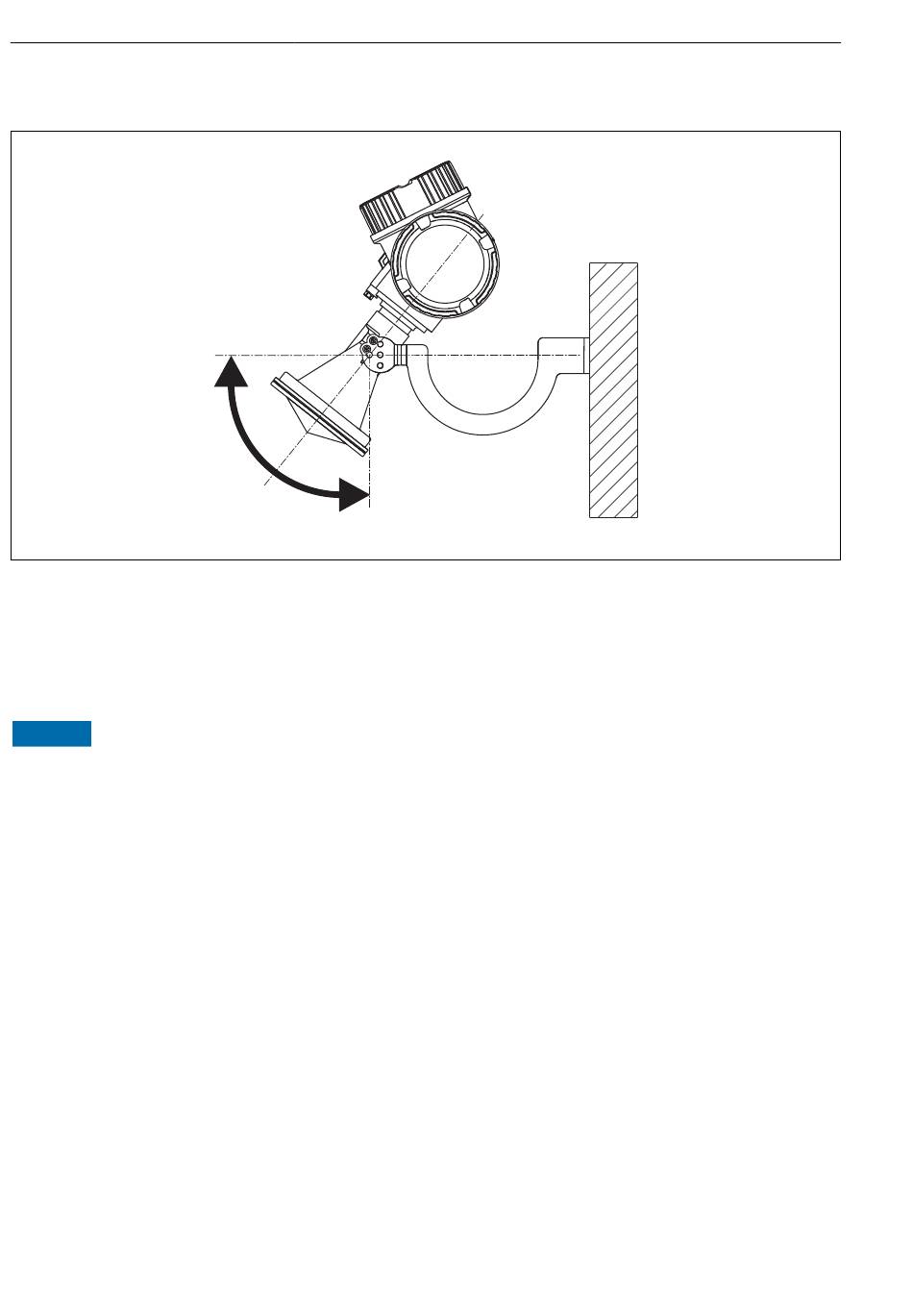

 3 Mounting the horn antenna with a mounting bracket
Using the mounting bracket, position the antenna so that it is perpendicular to the product
surface.
NOTICE
There is no conductive connection between the mounting bracket and transmitter
housing.
Risk of electrostatic charge.
‣
Integrate the mounting bracket in the local potential equalization system.
5.6.3 Horn antenna (FMR57)
Alignment
• Ideally, the horn antenna should be installed vertically. To avoid interference reflections or
for optimum alignment in the vessel, the Micropilot can be swiveled by 15° in all directions
with the optional alignment device.
• A marking is provided on the gland to aid the alignment. This marking must be aligned
towards the tank wall as much as possible.
