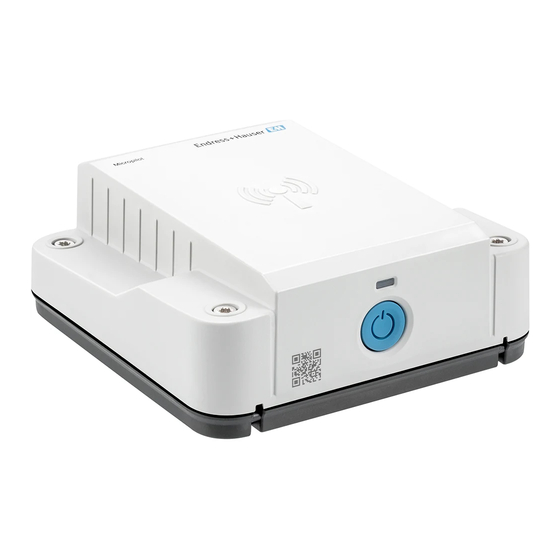

Endress+Hauser Micropilot FWR30 Operating Instructions Manual
Free space radar battery-operated radar sensor for remote monitoring of level
Hide thumbs
Also See for Micropilot FWR30:
- Operating instructions manual (28 pages) ,
- Operating instructions manual (28 pages)
Subscribe to Our Youtube Channel
Related Manuals for Endress+Hauser Micropilot FWR30
Summary of Contents for Endress+Hauser Micropilot FWR30
- Page 1 Products Solutions Services BA01991F/00/EN/01.19 71454862 2019-12-02 Operating Instructions Micropilot FWR30 Free space radar Battery-operated radar sensor for remote monitoring of levels...
- Page 2 • The manufacturer reserves the right to modify technical data without prior notice. Your Endress+Hauser Sales Center will supply you with current information and updates to these instructions. Endress+Hauser...
-
Page 3: Table Of Contents
Micropilot FWR30 Table of contents Table of contents About this document ....4 Maintenance ..... 18 Document function . -
Page 4: About This Document
About this document Micropilot FWR30 About this document Document function These Operating Instructions contain all the information that is required in various phases of the life cycle of the device: from product identification, incoming acceptance and storage, to mounting, connection, operation and commissioning through to troubleshooting, maintenance and disposal. -
Page 5: Documentation
Micropilot FWR30 About this document Additional information: Reference to documentation: Reference to page: Series of steps: Result of an individual step: 1.2.4 Symbols in graphics Item numbers: 1, 2, 3 ... Series of steps: Views: A, B, C, ... Documentation All available documents can be downloaded using: •... -
Page 6: Basic Safety Instructions
The manufacturer is not liable for damage caused by improper or non-designated use. Verification for borderline cases: ‣ For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of fluid-wetted materials, but does not accept any warranty or liability. -
Page 7: Product Safety
It meets general safety standards and legal requirements. It also complies with the EC directives listed in the device-specific EC Declaration of Conformity. Endress+Hauser confirms this by affixing the CE mark to the device. -
Page 8: Product Description
Product description Product design The Micropilot FWR30 is powered by an internal battery. The waterproof housing contains a sensor. The sensor records data (sensor measured values) from its environment. The device reports these data to the Netilion Cloud Service via a low-bandwidth cellular radio connection. -
Page 9: Incoming Acceptance And Product
Micropilot FWR30 Incoming acceptance and product identification Incoming acceptance and product identification Incoming acceptance DELIVERY NOTE A0041102 Product identification 4.2.1 Manufacturer address Endress+Hauser SE+Co. KG Hauptstraße 1 79689 Maulburg, Germany Address of the manufacturing plant: See nameplate. Storage and transport 4.3.1... -
Page 10: Installation
Installation Micropilot FWR30 Installation Mounting the measuring device 5.1.1 Mounting location Indoors or outdoors. Installation on vertical pipes A0040689 Installation with mounting bracket pipe/IBC. Installation on plastic IBC tanks with tubular cage or mesh frame Installation with "Mounting kit pipe / IBC". -
Page 11: Post-Installation Check
Micropilot FWR30 Installation also be attached using Velcro or adhesive tape. Both mounting kits include the same base plate, which makes other custom installations possible. No liability is accepted for custom installations. If the radar antenna is covered by metal objects, the measuring signal will be distorted. -
Page 12: Electrical Connection
Electrical connection Micropilot FWR30 Electrical connection Connecting the measuring device 6.1.1 Supply voltage • Replaceable battery, standard size, lithium (D), 3.6 V, 19 Ah Designation in accordance with IEC: ER34615 (primary battery lithium thionyl chloride); product recommendation: Tadiran SL-2880 • Battery life: > 3 years if 3 measurements are performed per day and at an ambient temperature of +25 °C (+77 °F) -
Page 13: Operation Options
Micropilot FWR30 Operation options Operation options Overview of operation options 7.1.1 Operation via activation switch on device The activation switch is locked while an activity is being performed and until the activity has been completed. LED light test • The LED light test is triggered by pressing briefly on the activation switch three times within 2 seconds. -
Page 14: Commissioning
Commissioning Micropilot FWR30 Commissioning Preparatory steps Before the measuring device is commissioned, the measuring device must be connected via Netilion Value. Scan the QR code to access Netilion Value. Netilion Value explains how to install a Netilion account and the Value Service. -
Page 15: Operation
Micropilot FWR30 Operation Operation Initiating measurement The interval for measurement and transmission is configured in Netilion Value. The device has a mode with extremely low power consumption. The device can be activated by the following events: • if the real-time clock reaches the next measuring interval (time-based) •... - Page 16 Operation Micropilot FWR30 9.4.4 Firmware update Manual update 1. Connect the FWR30 to the PC via the service interface (USB MSD). 2. Copy firmware file to the FWR30. 3. Disconnect USB connection. 4. The FWR30 checks the firmware file and updates the firmware.
-
Page 17: Diagnostics And Troubleshooting
Micropilot FWR30 Diagnostics and troubleshooting Diagnostics and troubleshooting 10.1 Diagnostic information via light emitting diodes If the LED flashes red at 10-second intervals, the battery level is low or critical. Endress+Hauser... -
Page 18: Maintenance
Maintenance Micropilot FWR30 Maintenance 11.1 Maintenance tasks 11.1.1 Replacing the battery A0040732 Release the 4 screws, replace the battery, tighten the screws with xx Nm. Battery type: standard size, lithium (D), 3.6 V, 19 Ah Designation in accordance with IEC: ER34615 (primary battery lithium thionyl chloride);... -
Page 19: Repair
WEEE as unsorted municipal waste. Such products may not be disposed of as unsorted municipal waste and can be returned to Endress+Hauser for disposal under the conditions stipulated in the General Terms and Conditions or as individually agreed by Endress+Hauser. -
Page 20: Accessories
Accessories Micropilot FWR30 Accessories 13.1 Device-specific accessories 13.1.1 Mounting kit pipe / IBC 42.7 (1.68) 142.2 (5.6) 258.9 (10.2) A0040971 13.1.2 Mounting bracket wall/ceiling 132 (5.2) 142.2 (5.6) 79 (3.11) 198.9 (7.83) A0040970 Endress+Hauser... -
Page 21: Technical Data
Micropilot FWR30 Technical data Technical data 14.1 Input 14.1.1 Measured variable Measured process variables • Level: 0 to 15 m (0 to 49 ft) • Ambient temperature: –20 to +60 °C (–4 to +140 °F) with an accuracy of ± 2 °C (4 °F) •... -
Page 22: Environment
Technical data Micropilot FWR30 14.3 Environment 14.3.1 Ambient temperature range –20 to +60 °C (–4 to +140 °F) 14.3.2 Storage temperature • Without battery: –20 to +60 °C (–4 to +140 °F) • With battery: 0 to +30 °C (+32 to +86 °F) The battery discharges very slowly within the specified temperature range. -
Page 23: Index
Micropilot FWR30 Index Index CE mark ........7 Declaration of conformity . - Page 24 *71454862* 71454862 www.addresses.endress.com...
