Micropilot FMR56, FMR57 FOUNDATION Fieldbus
Antenna
Parabolic antenna
200mm/8"
Parabolic antenna
250mm/10"
Examples for installation with small flange
If the flange is smaller than the parabolic reflector, the device can be mounted in one of the
following ways:
• Standard installation, the parabolic reflector must be dismantled in this case
• Installation with hinged flange

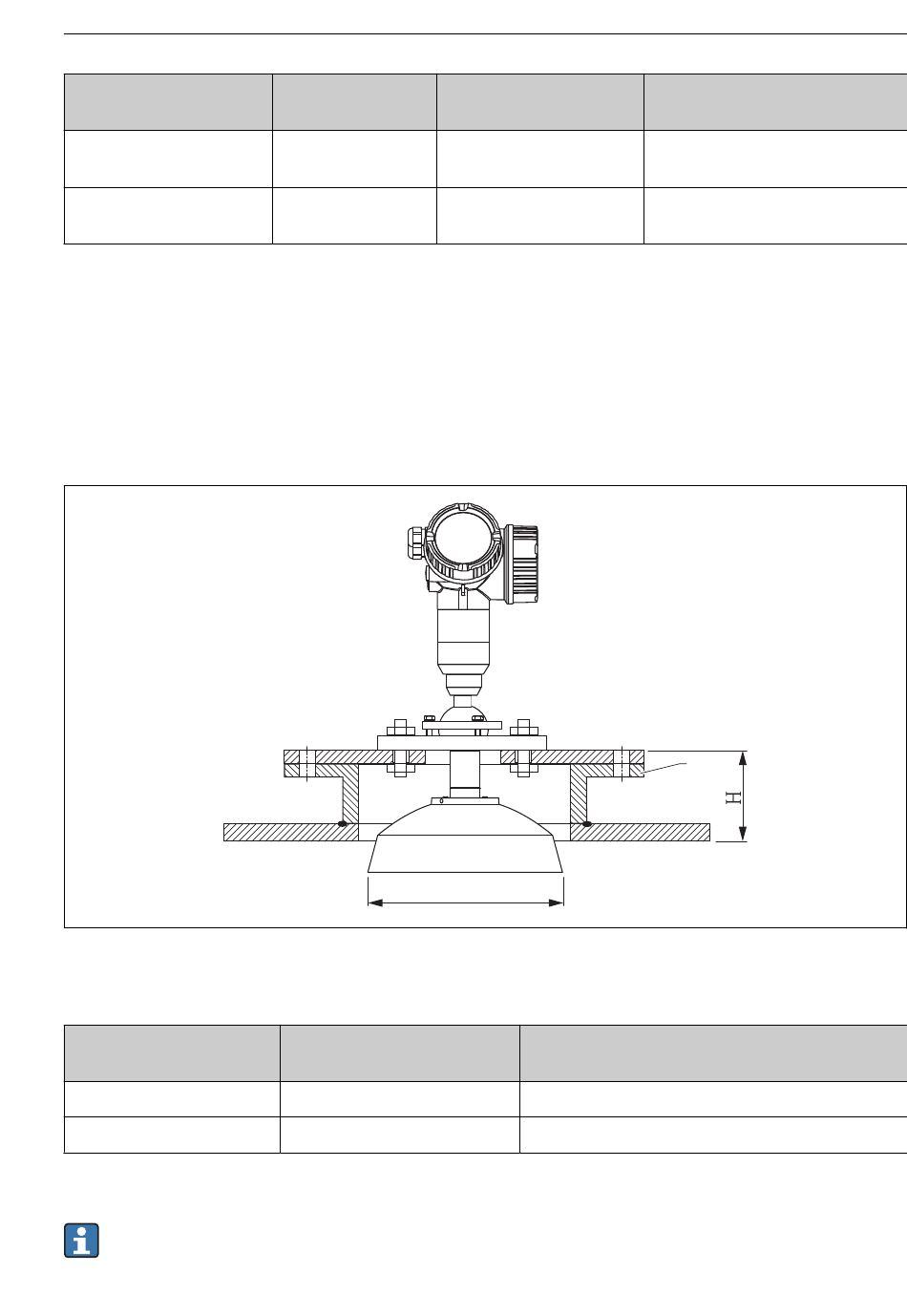

Standard installation
1 Nozzle
Antenna size
200 mm (8 in)
250 mm (10 in)
Installation with hinged flange
The length of the antenna must be taken into account in the case of hinged flanges.
Endress+Hauser
Antenna diameter D Nozzle height H for Case 1 Maximum nozzle height H
173 mm (6.81 in) < 50 mm (1.97 in)
236 mm (9.29 in) < 50 mm (1.97 in)
ØD
173 mm (6.81 in)
236 mm (9.29 in)
øD
H
(without antenna extension)
< 50 mm (1.96 in)
< 50 mm (1.96 in)
Case 2
500 mm (19.7 in)
500 mm (19.7 in)
1
Mounting
for
max
A0018874
