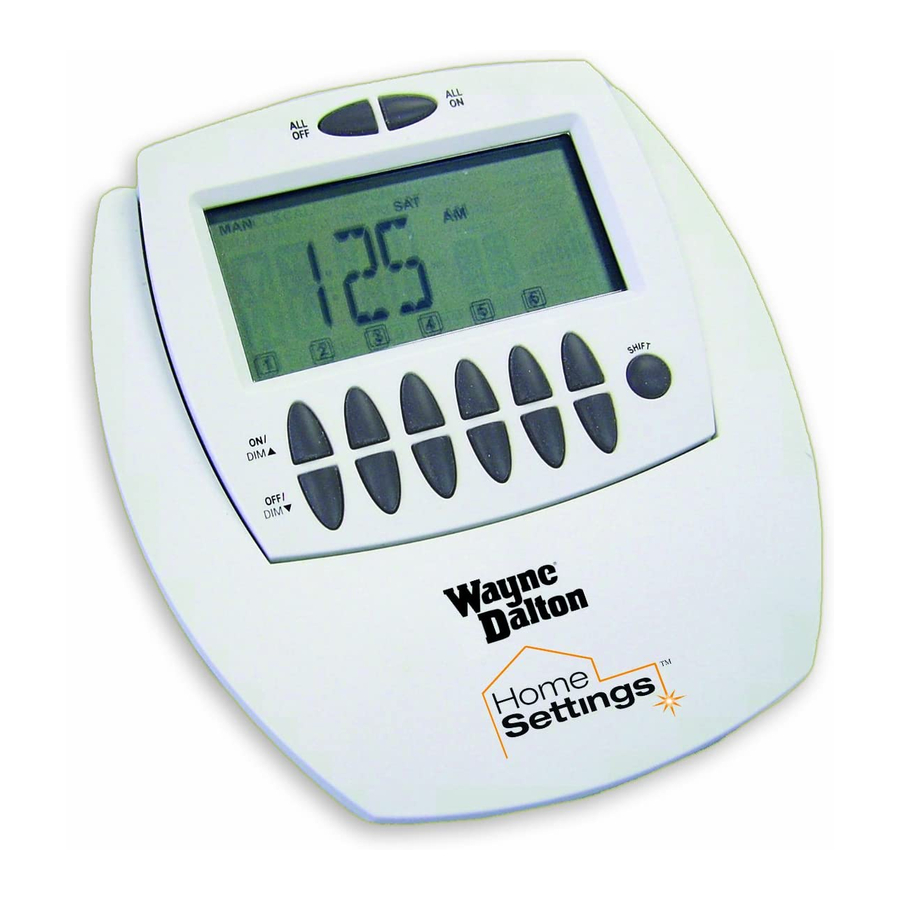

MODEL HA07 - MASTER CONTROLLER INSTRUCTIONS
Thank you for purchasing Intermatic's Home Settings
devices. With these products you can reliably and remotely
control lighting and appliances. The outstanding features of
the Home Settings program include:
Feedback that will allow you to see whether your
device has received the ON/OFF/DIM signal.
Ease of installation
Manual override
RF signal reliability – each Home Settings product
has a special repeater feature that virtually
guarantees that RF signals are received.
Page 1 of 35
158HA11645

Advertisement

Table of Contents
loading

Related Manuals for Intermatic HA07

Summary of Contents for Intermatic HA07

  • Page 1 Thank you for purchasing Intermatic’s Home Settings devices. With these products you can reliably and remotely control lighting and appliances. The outstanding features of the Home Settings program include: Feedback that will allow you to see whether your device has received the ON/OFF/DIM signal.
  • Page 2 12 Channels - each channel can control up to 16 devices to create scenes or timed events. The HA07 Master Remote Controller is a Z-Wave™ enabled Astronomic Feature – this option allows your time settings device and is fully compatible with any Home Settings network to match the daily changes in sunrise and/or sunset.

  • Page 3: Table Of Contents

    Table of Contents INCLUDE Modules to ALL ON/ALL OFF Feature……...…..EXCLUDE Modules to ALL ON/ALL OFF Feature…..………. Glossary of Terms………………………………………….……….. Programming the Controller………………………………………… Installing Batteries…………………………………………………… Automatic, Automatic Random, and Manual Mode……………… Module Installation and Set-up Recommendations……………… Additional Features………………………………………………….. Programming Instructions…………………………………………... Controller Replication…………………………………...……….

  • Page 4: Glossary Of Terms

    Channel – A channel will control up to 16 modules, allowing them to be programmed to turn on/off with the same time settings. HA07 has 12 channels. Device – Any item that is connected to a module (for example, lamps).
  • Page 5 The HA07 can accommodate up to 28 events. Scene – Lighting modules assigned to the various channels can Module – Any Intermatic Home Settings product that is be set at different levels, thus creating desired light levels controlled with a remote controller.

  • Page 6: Installing Batteries

    Battery Installation 1. Open the battery compartment door located on the back of the remote control by pressing down on the battery compartment tab and pulling the door outward. 2. Insert 4 size “AA” alkaline batteries (not included), placing the batteries as shown in the battery compartment.

  • Page 7: Module Installation And Set-Up Recommendations

    Module Installation and Set-Up Recommendations Module Installation and Set-Up Recommendations 1. Modules should be plugged-in or hardwired into the 4. Controllers must be brought within 6 ft. of modules location where they will be used. during set-up. This is because during set-up, the controller communicates with the modules using low 2.

  • Page 8: Programming Instructions

    2. (See Fig 3b) Press ENTER and the hour will flash. Press + Programming Instruction _______________Setting the CLOCK_________________ or - to set the hour. Press ENTER to accept the hour. 1. (See Fig 3a) Press MODE until CLK mode is shown. Fig 3a Fig 3b Page 8 of 35...

  • Page 9: Setting The Calendar

    Setting the CALENDAR 3. (See Fig 3c) The minutes will flash. Press + or - to set minutes. Press ENTER to accept the minutes. NOTE: The day of the week will be automatically calculated when the CALENDAR setting is completed. (See Fig 4a) Press MODE until the CAL mode is shown.
  • Page 10 Setting the CALENDAR (continued) Fig 4a – CAL mode Fig 4b – Set Month Fig 4c – Set Day Fig 4d – Set Ye Page 10 of 35...

  • Page 11: Setting Daylight Saving Time & Zone

    Setting Daylight Saving Time (dST) and Zone 1. (See Fig 5a) Press MODE until the SETUP mode is shown. 2. The controller is programmed to automatically adjust for daylight saving time (dST). If you want to keep this setting, press ENTER to go to ZONE. Skip to step 4. 3.
  • Page 12 Setting Daylight Saving Time (dST) and Zone (cont’d) Fig 5d – Zone Map Fig 5c – Press ENTER to accept zone setting. Page 12 of 35...

  • Page 13: Setting Astronomic Function

    Setting Astronomic Function NOTE: If you do not want to use the Astronomic function, you can bypass SETUP mode by pressing the MODE button until program (PGM) mode is displayed. (See Fig. 6) 1. The default SUNUP times for this zone will be flashing. Press ENTER to accept.

  • Page 14: Creating A Network

    Setting Astronomic Function (continued) Creating a Network NOTE: Creating a network refers to assigning modules to the master controller. All modules must be assigned to the master controller before any programming or remote control functions can be accomplished. NOTE: Devices should be plugged into modules before adding modules to the network.
  • Page 15 INCLUDE Modules to a Network (continued) 2. (See Fig 8b) Press and release the PROGRAM button on the module. If successful, the INCL icon will stop flashing and the word SUCCESSFUL will show for 2 seconds. If NOT SUCCESSFUL appears on the screen, it will be necessary to repeat this step until SUCCESSFUL appears.

  • Page 16: Associating Modules To Channels

    Associating Modules to Channels settings are FULL ON, FULL OFF or DIM LEVEL. Setting different light levels for different modules allows 1. (See Fig 9a) On the remote controller, simultaneously you to create “scenes” for each channel. press and hold the channel ON and OFF buttons of the NOTE: Only HA03 Lamp Module and HA06 In-Wall desired channel.
  • Page 17 Associating Modules to Channels (continued) Fig 9a – Press and hold the Fig 9b – Press and hold Fig 9c – Set the desired light level by pressing the PROGRAM button channel ON and OFF buttons. the INCLUDE button. on the module. Release the INCLUDE button on the Release buttons when “LEARN”...

  • Page 18: Exclude From Network

    EXCLUDE from the Network EXCLUDE from a Channel (See Fig 10a and 10b) Follow the same procedure as Creating (See Fig 11a – 11c) Follow the same procedure as Associating a Network (see page 14) except press the DELETE button Modules to Channels (see page 16) except press the DELETE instead of the INCLUDE button.

  • Page 19: Remote On/Off/Dim Operation

    EXCLUDE from a Channel (continued) Remote ON, OFF, DIM Operation ON - Press and release the ON button for the assigned channel. OFF - Press and release the OFF button for the assigned channel. DIM UP - press and hold the ON button.

  • Page 20: Adding Modules To All On/All Off Feature

    Adding Modules to ALL ON/ALL OFF Feature INCLUDE Modules to the ALL ON/ALL OFF feature: The HA07 Master Controller includes an ALL ON/ALL OFF 1. (See Fig 13a) Press and hold ALL ON and ALL OFF feature that allows all lighting modules in the network to be buttons at the same time (about 4 seconds) until the turned ON or OFF at the same time.
  • Page 21 INCLUDE Modules to the ALL ON/ALL OFF feature: Fig 13a – Press and hold the Fig 13b – Press and hold the ALL ON and ALL OFF buttons INCLUDE button until ALLSET appears. Fig 13c – Press the PROGRAM button Page 21 of 35...

  • Page 22: Exclude Modules To All On/All Off Feature

    EXCLUDE Modules from the ALL ON/ALL OFF Feature 1. (See Fig 13d) Follow the same steps as above, except in step 2, hold the DELETE button. Fig 13d Page 22 of 35...

  • Page 23: Programming The Controller

    Programming the Controller is selected, OR if you wish to use the Astronomic feature, press and release the + button until SUNUP or To set a programmed event, you will need to set a “day SNST appears on the screen. Press ENTER to accept group”...
  • Page 24 Programming the Controller (continued) Fig 14a -Press the MODE button Fig 14b - Press the + button Fig 14c – Select the hour Fig 14d – Select the minutes Page 24 of 35...
  • Page 25 Programming the Controller (continued) 6. (See Fig 14e on page 26) Set the lighting level by pressing and holding the ALL OFF or ALL ON buttons After setting the day group and execution time, you will need to until the bars indicate the approximate desired light choose which channels you want to control, and what you want level.
  • Page 26 ON to use SCENES (preset light settings and step to the next event Fig 14e – Press and hold ALL OFF or ALL ON to set the levels) desired light level CONGRATULATIONS! You have completed the programming of your HA07 Master Controller. Page 26 of 35...

  • Page 27: Automatic, Automatic Random, And Manual Mode

    OPERATING MODES AUTOMATIC, AUTOMATIC RANDOM, AND MANUAL MODE (See Fig 15) When you have completed your PROGRAM AUTOMATIC – the programs that you have set will settings, press MODE. automatically run, as you have set them. The display indicator will show “AUTO”. AUTOMATIC RANDOM - the program events that you have set will execute ±15 minutes from your programmed EVENT times.

  • Page 28: Additional Features

    Additional Features Replicating the Network and Channel Settings The HA07 Master Controller allows you to create two different (See Fig 16a & 16b) On your Primary Controller: types of copies of the primary remote controller: 1. Press and hold INCLUDE for 5 seconds. COPY will flash.
  • Page 29 (Note: If the secondary controller is Home Settings Model HA09 Handy Remote Controller, follow the same procedure as the HA07 Master Remote. Instead of seeing the word “COPY”, the 2 LEDs on the HA09 will flash simultaneously.) The controllers will automatically synchronize with each other and the word “SUCCESSFUL”...

  • Page 30: Replicating The Network Only

    3. The maximum number of Z-Wave devices per Secondary Controller. “Copy” on the Secondary Controller. HA07 Master Controller, including other will be shown in the LCD display. “RA” which stands for “Receive controllers, is 192 devices Release the INCLUDE button.

  • Page 31: Resetting The Controller

    Resetting the Controller Resetting CHANNELS only If needed, you can reset the NETWORK and CHANNEL SET- Follow the same procedure as Resetting the Network, except TINGS individually or both together. press Channel 2 ON/DIM and OFF/DIM buttons in step 2. The NOTE: When resetting a controller, for best results, each display will read, “CHAN CLEAR”.

  • Page 32: Troubleshooting

    Troubleshooting Solution: Problem: • The controller might be a Secondary Controller. Only a • Every time I try to INCLUDE or DELETE modules to my Primary Controller may be used to INCLUDE or network, I keep getting errors (red LED flashes) DELETE modules into or from a network.
  • Page 33 Troubleshooting Solution: Problem: • Check to be sure there is power supplied to the module. • I am trying to turn on a module associated to channel 1, • Check to be sure that the lightbulb is not bad. but it will not turn on. •...

  • Page 34: Federal Communications Commission Statement

    WARNING! interference that may cause undesired operation. Changes or modifications not expressly approved by Intermatic Inc. could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 35: Warranty Information

    If within six (6) years from the date of purchase, this product fails due to a defect IMPLIED WARRANTIES. ALL IMPLIED WARRANTIES, INCLUDING THE in material or workmanship, Intermatic Incorporated will repair or replace it, as its WARRANTY OF MERCHANTABILITY AND THE WARRANTY OF FITNESS sole option, free of charge.
