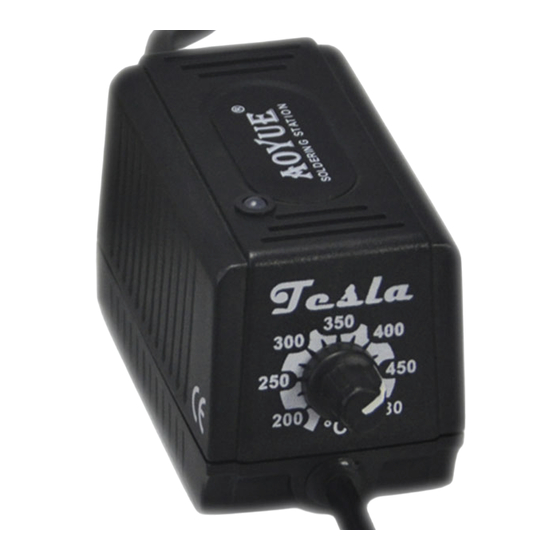

aoyue
®
Tesla
Soldering Station
Thank you for purchasing the Aoyue Tesla
Soldering Station. Please read the manual before
using the unit.
Keep manual in accessible place for future
reference.
AOYUE TONGYI ELECTRONIC EQUIPMENT FACTORY
Jishui Industrial Zone, Nantou, Zhongshan City,
Guangdong Province, P.R.China
http://www.aoyue.com
Advertisement
Related Manuals for aoyue Tesla
Summary of Contents for aoyue Tesla
- Page 1 ® Tesla Soldering Station Thank you for purchasing the Aoyue Tesla Soldering Station. Please read the manual before using the unit. Keep manual in accessible place for future reference. AOYUE TONGYI ELECTRONIC EQUIPMENT FACTORY Jishui Industrial Zone, Nantou, Zhongshan City, Guangdong Province, P.R.China http://www.aoyue.com...
-
Page 2: Table Of Contents
This manual is designed to familiarize and in struct the technician with the proper operation and maintenance of the equipment. The “Care and Safety Precautions” section explains the hazards of using any type of soldering or rework ing device. Please read carefully and observe the guidelines in order to maximize usage and minimize the risk of injury or accidents . ... -
Page 3: Product Description
PRODUCT DESCRIPTION The Aoyue Tesla is a high performance soldering iron. It is equipped with a fast acting PTC ceramic heater suitable for advance soldering needs. The separate tip and heater design offers cost efficiency and easy replacement of tips. The portable and lightweight design of the system save precious desktop space and allows easy packing for occasions when offsite soldering is required. PACKAGE INCLUSION Soldering Iron ... -
Page 4: Safety Precautions
SAFETY PRECAUTIONS CAUTION: Improper usage can cause serious injury to personnel and/ or damage to equipment and work area. For your own safety, please observe the following precautions. ● Check each component after opening the package to make sure everything is in good condition. If there are any suspected dam age, do not use the item and report the issue to your vendor. ● Turn OFF the main power switch and unplug the device from power source when moving the device. ● Do not strike or subject the main unit (and all its components) to physical shock. Use carefully to avoid damage to any part. Never drop or sharply jolt the unit. Contains delicate parts that may break if the unit is dropped. ● Make sure the equipment is always grounded. Always connect power to a grounded receptacle. ● Temperature may reach as high as 480°C when switched ON. Do not use the device near flammable gases, paper and other flammable materials. Do not touch heated parts, which can cause severe burns. Do not touch metallic parts near the tip. ● Disconnect the plug from the power source if the unit will not be used for a long period. Turn off power during breaks, if possible. ● Soldering process produces smoke, use on well ventilated places. ● Do not alter the unit, specifically the internal circuitry, in any man ner. HIGH VOLTAGE present inside the unit. DO NOT attempt to service equipment. ... -
Page 5: Specifications
SPECIFICATION MAIN STATION Voltage Input : available in 110V / 220V Station Dimensions: 51(w) x 59 (h) x 85 (d) mm Weight: 235 grams Power Consumption: 75W Temperature Range: 200°C 480°C Heating Element PTC Ceramic heater PTC ceramic voltage: 110/220 V FUNCTIONS and FEATURES · Closed loop temperature controlled Soldering station. · PTC ceramic heater and removable tip design. · High power heating element for fast heat recovery. · Temperature control knob for easy adjustment. · Portable and lightweight system. ... -
Page 6: Control Panel Guide
CONTROL PANEL GUIDE LED indicator ON/OFF Switch Temperature control knob AC in PLUG OPERATING GUIDELINES REMINDERS: · Make sure the equipment is placed on a flat stable surface and all the heatgenerating components placed on their respective hold ers or stands. · Ensure all function switches are OFF prior plugging to wall outlet. · Ensure all terminal connections are properly secured. A. INITIAL PROCEDURES 1. Insert the power cord into the receptacle at the back of the station. 2. Plug the power cord into a grounded wall socket. The station is protected against electrostatic discharge and must be grounded for full efficiency. ... -
Page 7: Operating Guidelines
OPERATING GUIDELINES 3.Be sure the power switch is OFF before connecting or disconnecting the soldering iron cord. Failure to do so may result in damage to the circuit board. 4.The unit is now ready for use. B. TEMPERATURE CONTROL 1. Turn the power ON. LED indicator will light up indicating system is now turned “On”. 2. To Increase the temperature, turn the Temperature control knob clock wise. To decrease Set temperature, turn the Temperature control knob counter clockwise. 3. The LED indicator lamp will light a RED lamp when the system is heating up the tip to desired temperature. Upon ... -
Page 8: Care And Maintenance
CARE AND MAINTENANCE 1. Tip Temperature : High temperature shortens tip life and may cause thermal shock to components. Always use the lowest possible temperature when soldering. 2. Cleaning : Always clean the soldering tip before use to remove any residual solder or flux adhering to it. 3. After usage: Always clean the tip and coat it with fresh solder after use. This guards against oxidation and pro longs tip life. 4. System Care: Never allow the unit to stay idle at high tem perature for extended periods. Utilize the automated sleep feature to conserve energy, prolong tip and heating ele ment life. If unit will not be used for long periods it is ad vised to power down the unit and unplug from the mains. 5. Inspecting and cleaning the tip: o Set the temperature to 250 C. ◆ When the temperature stabilizes, clean the tip and check its ◆ condition. If the tip is badly worn or deformed, replace it. If the solder plated part of the tip is covered with black ox ◆ ide, apply fresh solder containing flux and clean the tip again. Repeat until all the oxide is removed then coat the tip with fresh solder. Never file the tip to remove oxide. ◆ Remaining oxides such as the yellow discoloration on the tip ◆ shaft can be removed with isopropyl alcohol. ...
