IP CEILING SPEAKER
Thank you for purchasing TOA's IP Ceiling Speaker.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

TABLE OF CONTENTS

9.1. Connections to Control Input and Output Terminals ............................................................ 8
9.2. Removable Terminal Plug Connections .............................................................................. 9
.............................................................................................................................. 10
10.1. System Settings Summary ............................................................................................... 10
10.2. System Requirements ...................................................................................................... 10
10.3. Connection with Browser ................................................................................................. 11
......................................................................................................... 2
.................................................................................................. 4
............................................................................................ 4
................................................................................................... 5
.................................................................................................... 6
............................................................................................ 7
......................................................................................................................... 7
......................................................................................................................... 8
......................................................................................... 12
.............................................................................................. 13
..................................................................................................................... 13
INSTRUCTION MANUAL
................................................................................... 6
IP-A1PC238
..................................... 13

Advertisement

Table of Contents
loading

Related Manuals for Toa IP-A1PC238

Summary of Contents for Toa IP-A1PC238

  • Page 1: Table Of Contents

    INSTRUCTION MANUAL IP CEILING SPEAKER IP-A1PC238 Thank you for purchasing TOA’s IP Ceiling Speaker. Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment. TABLE OF CONTENTS 1. SAFETY PRECAUTIONS ......................2 2. SUMMARY AND FEATURES ....................

  • Page 2: Safety Precautions

    CAUTION Indicates a potentially hazardous situation which, if mishandled, could result in moderate or minor personal injury, and/or property damage. contact your nearest TOA dealer. Make WARNING no further attempt to operate the speaker in this condition as this may cause fire or electric shock.
  • Page 3 Modifications Any modifications made to this device that are not approved by TOA Corporation may void the authority granted to the user by the FCC to operate this equipment.

  • Page 4: Summary And Features

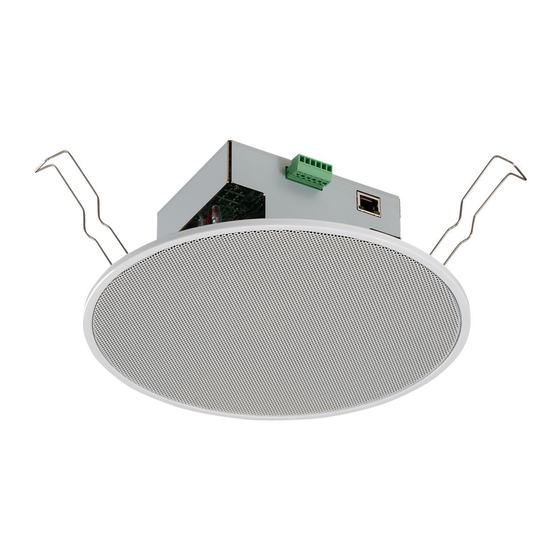

    2. SUMMARY AND FEATURES The IP-A1PC238 IP ceiling speaker is equipped with a built-in power amplifier and sound source memory. It can be connected to and used over a local network. • Power is supplied by way of PoE (IEEE 802.3af) switching hubs.

  • Page 5: Dimensional Drawings

    4. DIMENSIONAL DRAWINGS Unit: mm (in) [Front] [Rear] [Side] ø230 (ø9.06) 121 (4.76) ø200 ± 2 (7.87 ± 0.08) (Mounting Diagram)

  • Page 6: Nomenclature And Functions

    7. 6. HANDLING PRECAUTIONS • Please apply the latest firmware version to this product. The latest version is available at the TOA DATA Library (https://www.toa-products.com/international/). • As this product is IP-based, a slight time lag between actual and broadcast may happen.

  • Page 7: Installation Precautions

    Category 5 or greater and fitted with RJ45 connectors). Power to the speaker is supplied by the PoE switching hub. Compatible switching hubs: IP-A1PC238 (side) Switching hubs conforming to PoE (IEEE802.3af Class 3) specifications Step 3. Hook the speaker mounting spring into the mounting Speaker mounting spring Ceiling hole in the ceiling.

  • Page 8: Connections

    • VMS broadcast in progress output • Multicast broadcast in progress output • Internal sound source broadcast in progress output For settings, please refer to the separate setup manual. The latest version of the setup manual is available on the TOA DATA Library (https://www.toa- products.com/international/).

  • Page 9: Removable Terminal Plug Connections

    9.2. Removable Terminal Plug Connections Please note the following points when making connections to the control input or output terminals using the supplied removable terminal plugs: • Do not tin stripped wire ends with solder. Soldered wire ends will be crushed when the terminal plug screws are tightened, leading to higher contact resistance and potentially resulting in an abnormal rise in the temperature of the connected parts.

  • Page 10: Settings

    System Date and time settings, NTP server settings, Time zone settings For more information, please refer to the separate setup manual. The latest version of the setup manual is available on the TOA DATA Library (https://www.toa- products.com/international/). 10.2. System Requirements...

  • Page 11: Connection With Browser

    Step 2. Enter the username and password, and click the LOGIN button. The Status screen is displayed, enabling a range of settings. Note For details regarding the setting method, please refer to the separate setup manual. The latest version of the setup manual is available on the TOA DATA Library (https://www.toa-products.com/international/).

  • Page 12: Initialization Of Settings

    When initialized with the Reset key, the speaker’s sound source files are left in "Media," not deleted. Initialization to factory defaults, including deletion of sound source files, should be performed using the browser settings menu. IP-A1PC238 Reset key (rear) LAN cable...

  • Page 13: Cautions Regarding The Avc/H.264 Patent License

    12. CAUTIONS REGARDING THE AVC/H.264 PATENT LICENSE TOA’s IP-A1PC238 IP ceiling speaker employs MPEG technology (AVC/H.264 Standard) regarding the handling of image information. TOA Corporation has received approval to use this technology from MPEG LA, LLC, the patent management group.
  • Page 14 Traceability Information for USA Manufacturer: Authorized representative: TOA Corporation TOA Electronics, Inc. 7-2-1, Minatojima-Nakamachi, Chuo-ku, Kobe, Hyogo, 1 Harmon Plaza, Suite 700 Secaucus, Japan New Jersey 07094, URL: https://www.toa.jp/ 133-01-00319-00...
