- Page 1 Operation Manual IP PoE Wall Mount Speaker BS-PE678IP1 Thank you for purchasing TOA IP-1000 series products. Please carefully read the instructions in this manual to ensure long-term and fault-free operation of the equipment. TOA Corporation...
-
Page 2: Safety Precautions
Chapter 1 Safety Precautions... - Page 3 Chapter 1 Safety Precautions Please observe the warnings and safety instructions. After reading this manual, please properly place it for easy access and reference in the future. Warning This sign indicates that potential safety hazards would occur if the equipment is opened for operation and serious injury or death would be caused to non-professionals who do not operate the equipment properly.
- Page 4 (5) Do not open the equipment or transform it. High-voltage parts are installed in the equipment. If the equipment is uncovered or transformed, a fire or electric shock may be caused. All maintenance and internal transformation of the equipment should be performed by professionals.
-
Page 5: Product Description

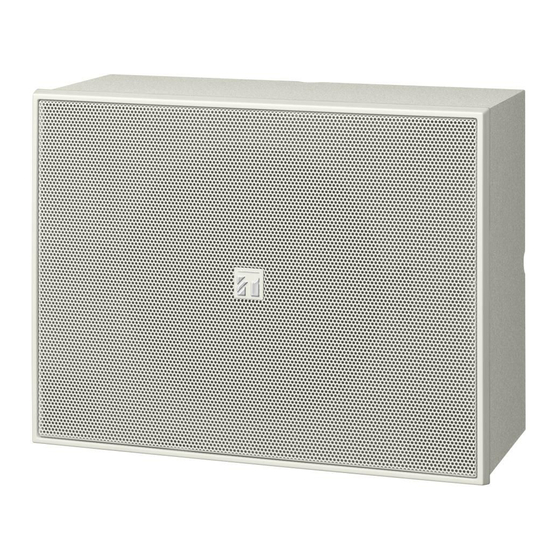

Chapter 2 Product Description... - Page 6 Chapter 2 Product Description 2.1 Overview 2.1 Overview BS-PE678IP1 is an IP PoE wall mount speaker and can receive the broadcast from other terminals or servers supporting the setting of functions through browser. It can detect circuit faults and operating state of the speaker and display them on the server software.
-
Page 7: Terminal Description
Chapter 2 Product Description 2.2 Terminal description Orange Green Power Input ①Power Input connector: DC24V/1A is required, power supply input for network wall speaker. (Note: This equipment supports POE power supply. If the network interface is connected to POE switch, no power supply is needed) "+"... - Page 8 Chapter 3 Wiring...
-
Page 9: Installation Instructions
Chapter 3 Wiring 3.1. Installation instructions Required accessories The required parts are attached as accessories. Fixing screw M4×35 (2 pcs) Step 1 Pull out the mask of BS-PE678IP1. Loosen the two springs to separate the mask from the bottom case. Step 2 Install BS-PE678IP1 with the attached fixing screws(M4*35). - Page 10 Chapter 3 Wiring 3.2 Reference dimensions Reference dimensions (unit: mm)
- Page 11 Chapter 4 System Setup Through Browser...
- Page 12 Chapter 4 System Setup Through Browser 4.1 Access to browser Step 1 Enter the IP address of BS-PE678IP1 (the default IP is 192.168.1.101) in the address field of IE browser and press ENTER. Step 2 Enter user name and password (the defaults are admin) in the login window on the Web page. Note: User name and password are case sensitive.
- Page 13 Chapter 4 System Setup Through Browser 4.2 Net options Terminal IP IP address of BS-PE678IP1 (the default is 192.168.1.101) Subnet mask Used to set the subnet mask (the default is 255.255.255.0). Default gateway Used to set the gateway of BS-PE678IP1 (the default is 192.168.1.1). DNS1 (Optional) Used to set the IP address of preferred DNS server of BS-PE678IP1.
-
Page 14: Server Options
Chapter 4 System Setup Through Browser 4.3 Server Options This must be a unique number in the same system, do not duplicate with any Terminal ID other terminals even for other models. The factory default ID number is 1. The default terminal port number is 2046. Do not modify it without special Local Port circumstances. -
Page 15: Sip Options
Chapter 4 System Setup Through Browser 4.4 SIP options Select for this activation. The SIP server address where the terminal is located, please fill in the IP SIP Server address or domain name of the SIP server correctly. The port should not be modified, except in special cases (default is 5060). -
Page 16: Audio Options
Chapter 4 System Setup Through Browser 4.5 Audio options The total volume of the audio output of the terminal during broadcasting. Broadcast Volume The value is from 0 (smaller) to 15 (louder). This is for stable broadcasting output adjustment. When this value is small, audio latency is small and it’s better for a live paging however if the network is unstable, its audio would be so choppy. -
Page 17: Password Setting
Chapter 4 System Setup Through Browser 4.6 Password Setting Users can modify login account and password in the web management parameters. Original username Confirm the current account name. Original password Confirm the current password. New username Set the new account name, even this isn’t needed, this should be set. New password Set the new password. -
Page 18: Language Setting
Chapter 4 System Setup Through Browser 4.7 Language Setting The language of the web page can be switched between Chinese and English. If the language setting is set to Chinese, the following is a position of “Language Setting”. -
Page 19: Update Firmware
Chapter 4 System Setup Through Browser 4.8 Update firmware Press the "Update" button. Firmware upgrade mode will be entered in 15 seconds. Click "Browse", select the upgrade file provided by the manufacturer, and press "Update" to start firmware update. Note: Do not turn off the power during upgrading the terminal, otherwise it may lead to the failure of the upgrade and the failure of the equipment. -
Page 20: Factory Reset
Chapter 4 System Setup Through Browser 4.9 Factory reset Restore factory settings: All parameters are restored to factory settings. Factory reset... - Page 21 Chapter 4 System Setup Through Browser 4.10 Reboot Users can click the menu "Reboot" to restart BS-PE678IP1.
-
Page 22: System Logs
Chapter 4 System Setup Through Browser 4.11 System logs In the web page, you can browse the log of BS-PE678IP1, and click "Refresh" to reload the log content in the web page. - Page 23 Chapter 5 Appendix...
-
Page 24: Specification
Chapter 5 Appendix 5. Specification BS-PE678IP1 IP PoE wall mount speaker Model No. BS-PE678IP1 Speaker component 6"(16cm), double-cone type Power supply DC24V / 1A or PoE (IEEE 802.3at) Stand-by Power consumption Less than 5W Rated Output Power 2*7W (Maximum Consumption Current 24V/0.65A under DC Conditions) (DC Power Supply) Rated Output Power 2*7W (Maximum Consumption Current 16V/1.35A under PoE Conditions) - Page 25 TOA Corporation 201807...
