- Page 1 User’s Manual IP audio column speaker TZ-P406BIP1/WIP1 Thanks for your purchase of TOA products IP-1000 series. Please read the manual carefully to ensure the machine operating in long time and fault-free. TOA Corporation...
- Page 2 Chapter 1 Safety precaution...
-
Page 3: Chapter 1: Safety Precaution
Chapter 1: safety precaution Please abide by the warning and the relevant safety tips. Please place this manual in convenient place after you reading the guide for future reference. Warning The sign means there is potential safety hazard, when operate wrong may result in death or serious injury. - Page 4 Chapter 2 Products description...
-
Page 5: Chapter 2: Products Description

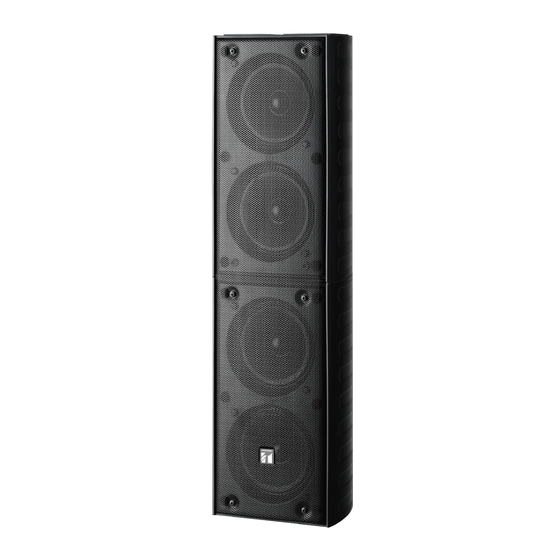

Chapter 2: products description 2.1 Summary 2.1 Summary TZ-P406BIP1/WIP1 is an IP audio column speaker, which can receive broadcast from other terminals or servers, it supports system settings via browser. It comes with a loop detection function to detect the working status of IP column horn speaker and indicate on the server software. -
Page 6: Chapter 2: Product Description
Chapter 2: product description 2.2 Connector description ① Network connector: the specification is the RJ-45,insert the network cable to connect with server, the network interface comes with a dual color (green, orange)indicator light ,the indicator light can show the working status of the IP audio column speaker. Working status Indicator light Network cable not connected... - Page 7 Chapter 3 Wiring...
- Page 8 Chapter 3: wiring 3.1 IP audio column speaker wiring 3.1 Wiring diagram...
- Page 9 Chapter 3: connection 3.2 Installation description 3.2 Installation description Outdoor installation notes The IP audio column speaker must be installed in the vertical direction. The incline angle in accordance with the following picture. Note: please put the reverse input terminal at the below of the loudspeaker. ...
- Page 10 Chapter 3: connection 3.2 Installation description 3.2.1.1 Horizontal and vertical installation The mounting screw and bracket are included in the fittings of the IP audio column speaker. The highest level is 60 degrees, vertical: 15 degrees downward maximum The installation steps, please refer to the following pictures: Step1: Please install the mounting bracket C on the wall.
- Page 11 Chapter 3: connection 3.2 Installation description Step 2: Connecting the screw (M6*12) of mounting bracket A and C, adjust the angle of bracket B and tighten for it. Note: aligning the direction of the bracket B and C as arrow indicated. Step3: Installing the bracket A on the back of the speaker by screw（M5*20）.
- Page 12 3.2 Installation description 3.2.2 Portable installation IP audio column speaker can be installed on the moveable bracket (TOA model ST-16A (optional)) Please refer to the following steps: Step 1: Installing the bracket on the bottom of the speaker with screw (M8*15 screw) Step 2: Installing the speaker bottom bracket on the ST-16A.
- Page 13 Chapter 3: connection 3.3 Reference dimension 3.3: Reference dimension (unit: mm)
- Page 14 Chapter 4 System settings by browser...
- Page 15 Chapter 4: system settings by browser 4.1 Enter into browser 4.1 Entering the browser Step1: Please input: IP address of the speaker (factory defaults is 192.168.1.101),then press Enter. Step 2: Please input the user name and password in the login window of the Web page (the defaults is admin) Note: There is different letter of the use name and password.
-
Page 16: Network Parameters
Chapter 4: system settings by browser 4.2 Network parameters 4.2 Network parameters Identify the unique number of the speaker and it can’t be repeated with Device number other terminals or hosts. IP address IP address of the speaker The defaults port number is 2046, please don’t modify it if not in Device port specially situation. -
Page 17: Audio Parameters
Chapter 4: system settings by browser 4.3 Audio parameters 4.3 Audio parameters Broadcast coding, PCM means no data be compressed, ADPCM Coding mode means packed data (low network data value) The volume of Line input volume audio ine input In order to avoid output of circuit and sound source noise, when the line input audio range is smaller than the value (line input threshold Line input... -
Page 18: Web Management
Chapter 4: system settings by browser 4.4 Web management 4.4 Web management You can modify the account number and password in the Web management parameters. -
Page 19: Restart Device
Chapter 4: system settings by browser 4.5 Restart device 4.5 Restart device User can click the “restart device” to restart the speaker. -
Page 20: Reset To Defaults
Chapter 4: system settings by browser 4.6 Reset to defaults 4.6 Reset to defaults Reset to defaults: all the parameters will reset to defaults. -
Page 21: Firmware Upgrade
Chapter 4: system settings by browser 4.7 Firmware upgrade 4.7 Firmware upgrade Click “firmware upgrade mode”, then enter into the firmware upgrade interface. Click browse in the upgrade firmware interface, please select the correct upgrade files, click on "upgrade", it will automatically restart after completed the upgrade. -
Page 22: System Log
Chapter 4: system settings by browser 4.8 System log 4.8 System log Browser the log of the speaker in the Web page, click “delete all logs”, all logs can be deleted in the Web page. - Page 23 Chapter 5 Appendix...
-
Page 24: Chapter 5: Appendix
Chapter 5: appendix 5.1 Specification 5.1.1 IP audio column speaker TZ-P406BIP1/WIP1 Model number TZ-P406BIP1 TZ-P406WIP1 Loudspeaker assembly 10cm cone type X 4, waterproof Power DC24V / 2.7A Power consumption (static power) 1.85 W 4Ω，40W Load impedance Sound pressure level (SPL) （1m/1w）... - Page 25 TOA Corporation 201611...
