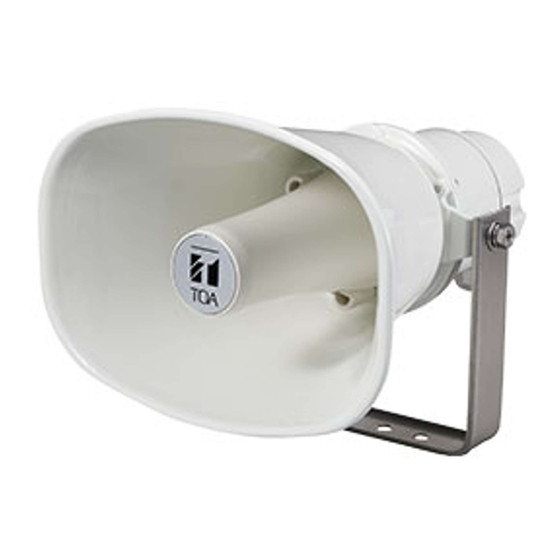

IP HORN SPEAKER
Thank you for purchasing TOA's IP Horn Speaker.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

TABLE OF CONTENTS

7.1. Attaching the Rear Cover ..................................................................................................... 9
8.1. Network Connection ........................................................................................................... 10
8.2. Connections to Control Input and Output Terminals ......................................................... 11
8.3. Removable Terminal Plug Connections ............................................................................ 12
................................................................................................................................ 13
9.1. System Settings Summary ................................................................................................. 13
9.2. System Requirements ........................................................................................................ 13
9.3. Connection with Browser ................................................................................................... 14
Accessories ............................................................................................................................. 18
Optional products .................................................................................................................... 18
......................................................................................................... 2
.................................................................................................. 5
............................................................................................ 5
.................................................................................................... 8
............................................................................................ 8
......................................................................................................................... 9
...................................................................................................................... 10
......................................................................................... 15
.............................................................................................. 16
............................................................................................... 17
................................................................................................................. 18
INSTRUCTION MANUAL
................................................................................... 6
IP-A1SC15
..................................... 16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IP-A1SC15 and is the answer not in the manual?

Questions and answers

Related Manuals for Toa IP-A1SC15

Summary of Contents for Toa IP-A1SC15

  • Page 1: Table Of Contents

    INSTRUCTION MANUAL IP HORN SPEAKER IP-A1SC15 Thank you for purchasing TOA’s IP Horn Speaker. Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment. TABLE OF CONTENTS 1. SAFETY PRECAUTIONS ......................2 2. SUMMARY AND FEATURES ....................

  • Page 2: Safety Precautions

    PoE+ or PoE switching hub in personal injury. and contact your nearest TOA dealer. Make no further attempt to operate the speaker • Use nuts and bolts that are appropriate in this condition as this may cause fire or for the ceiling’s or wall’s structure and...
  • Page 3 The IP-A1SC15 IP horn speaker is capable of delivering extremely high volume sound output. Therefore, close proximity to the speaker over time could present the danger of hearing impairment. Be sure to follow the instructions below when conducting performance tests: •...
  • Page 4 Any modifications made to this device that are not approved by TOA Corporation may void the authority granted to the user by the FCC to operate this equipment. DECLARATION Any modification to the unit, unless expressly approved by TOA Electronics, Inc., could void your authority to operate the equipment. DECLARATION OF CONFORMITY TOA Electronics, Inc.

  • Page 5: Summary And Features

    2. SUMMARY AND FEATURES The IP-A1SC15 IP horn speaker is equipped with a built-in power amplifier and sound source memory. It can be connected to and used over a local network. • Power may be supplied by way of PoE+ or PoE switching hubs.

  • Page 6: Nomenclature And Functions

    4. NOMENCLATURE AND FUNCTIONS [Side] [Rear] (with rear cover removed)] 1. Mounting bracket 5. Control output terminals Used to securely mount the speaker to a wall Allows control of external equipment in or ceiling. synchronization with speaker operation. 2. Rear cover (accessory) 6. Functional ground terminal This weatherproof cover protects the cable If excessive noise is produced when the connection parts from the elements.
  • Page 7 9. Status indicator (orange) 11. Ring gasket Indicates the speaker’s operating status. Prevents water from getting inside the speaker’s rear cover. Speaker Operation Status Indicator System startup Flashing twice 12. Control input terminals Broadcast standby Continuously lit Allow input control signals from Broadcasting Continuously lit connected external equipment to enable output of internal sound source files or System mute* Flashing quickly...

  • Page 8: Handling Precautions

    5. HANDLING PRECAUTIONS • Please apply the latest firmware version to this product. The latest version is available at the TOA DATA Library (https://www.toa-products.com/international/). • As this product is IP-based, a slight time lag between actual and broadcast may happen.

  • Page 9: Installation

    7. INSTALLATION 7.1. Attaching the Rear Cover [Before attachment] Removable terminal plugs (3 pins) Rear cover (accessory) Screws (3 places) Ring gasket Recess Sealing bush* Hole plug* Sealing clamp* Sealing nut* * Attached to the rear cover when shipped from the factory. Notes • To ensure complete weatherproofing, be sure that the following specifications of cable are used for both the LAN cable and the control input and output cable: Cable diameter: ø4.5 to 5.2 mm or ø0.18"...

  • Page 10: Connections

    Step 3. Slide each part over the ends of the LAN cable Rear cover and control cable in the order shown in the figure (accessory) at right. Slot Feed the cable ends through the sealing bush can be more easily done by pressing the cable Sealing bush into the slots in the bush.

  • Page 11: Connections To Control Input And Output Terminals

    • VMS broadcast in progress output • Multicast broadcast in progress output • Internal sound source broadcast in progress output For settings, please refer to the separate setup manual. The latest version of the setup manual is available on the TOA DATA Library (https://www.toa- products.com/international/).

  • Page 12: Removable Terminal Plug Connections

    8.3. Removable Terminal Plug Connections Please note the following points when making connections to the control input or output terminals using the supplied removable terminal plugs: • Do not tin stripped wire ends with solder. Soldered wire ends will be crushed when the terminal plug screws are tightened, leading to higher contact resistance and potentially resulting in an abnormal rise in the temperature of the connected parts.

  • Page 13: Settings

    System Date and time settings, NTP server settings, Time zone settings For more information, please refer to the separate setup manual. The latest version of the setup manual is available on the TOA DATA Library (https://www.toa- products.com/international/). 9.2. System Requirements Connectable system requirements are as follows: Display Resolution: 1366 ×...

  • Page 14: Connection With Browser

    Step 2. Enter the username and password, and click the LOGIN button. The Status screen is displayed, enabling a range of settings. Note For details regarding the setting method, please refer to the separate setup manual. The latest version of the setup manual is available on the TOA DATA Library (https://www.toa-products.com/international/).

  • Page 15: Initialization Of Settings

    10. INITIALIZATION OF SETTINGS Follow the procedure below to return all speaker settings to their default: When initialized with the Reset key, the speaker’s sound source files are left in "Media," not deleted. Initialization to factory defaults, including deletion of sound source files, should be performed using the browser settings menu.

  • Page 16: Cautions Regarding The Avc/H.264 Patent License

    11. CAUTIONS REGARDING THE AVC/H.264 PATENT LICENSE TOA’s IP-A1SC15 IP horn speaker employs MPEG technology (AVC/H.264 Standard) regarding the handling of image information. TOA Corporation has received approval to use this technology from MPEG LA, LLC, the patent management group.

  • Page 17: Dimensional Drawings

    13. DIMENSIONAL DRAWINGS Unit: mm (in) [Front] [Side] 276 (10.87") 222 (8.74") (4.17") Mounting bracket 4.5 (0.18") [Mounting bracket bottom surface] [Rear] Mounting holes 36 (1.42") * Figure is a reference value.

  • Page 18: Specifications

    14. SPECIFICATIONS The specifications of this product are available in TOA DATA Library (https://www.toa-products. com/international/). Scan the QR Code at right with your mobile phone camera to access the WEB site and search for this product number (IP-A1SC15). Note: "QR Code" is a registered trademark of DENSO WAVE INCORPORATED.
