Transport, Installation and Connection

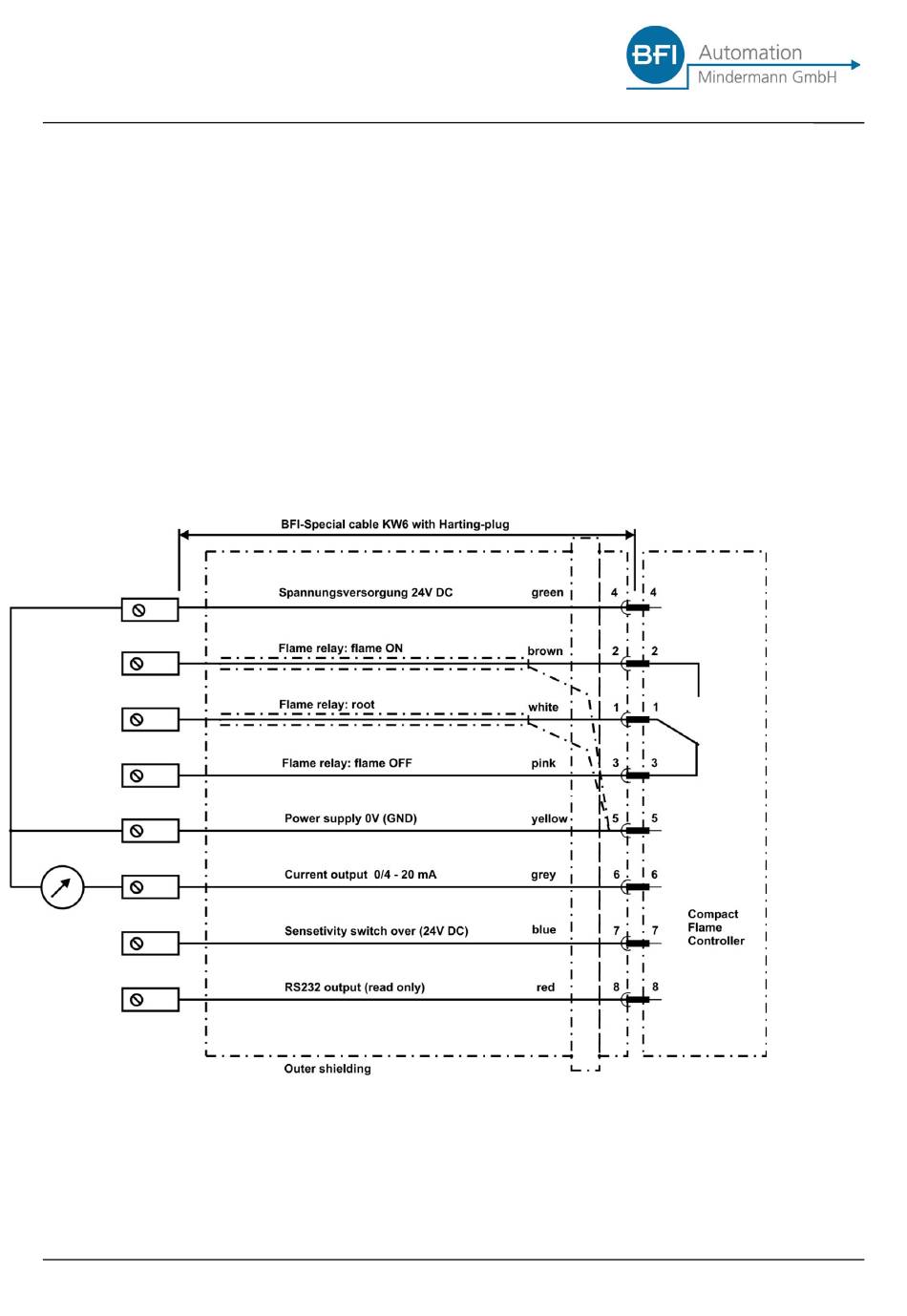

Pin/Terminal
Description
1
Flame relay: Root
2
Flame relay 'Flame ON'
3
Flame relay 'Flame OFF'
4
Power supply +24 V DC
5
Power supply 0V (GND)
6
Current output 0(4)-20 mA
7
Sensitivity switchover channel 2
8
RS232output (read only)
4-12
BFI Special cable KW6
colour
white
brown
pink
green
yellow
gray
blue
red
