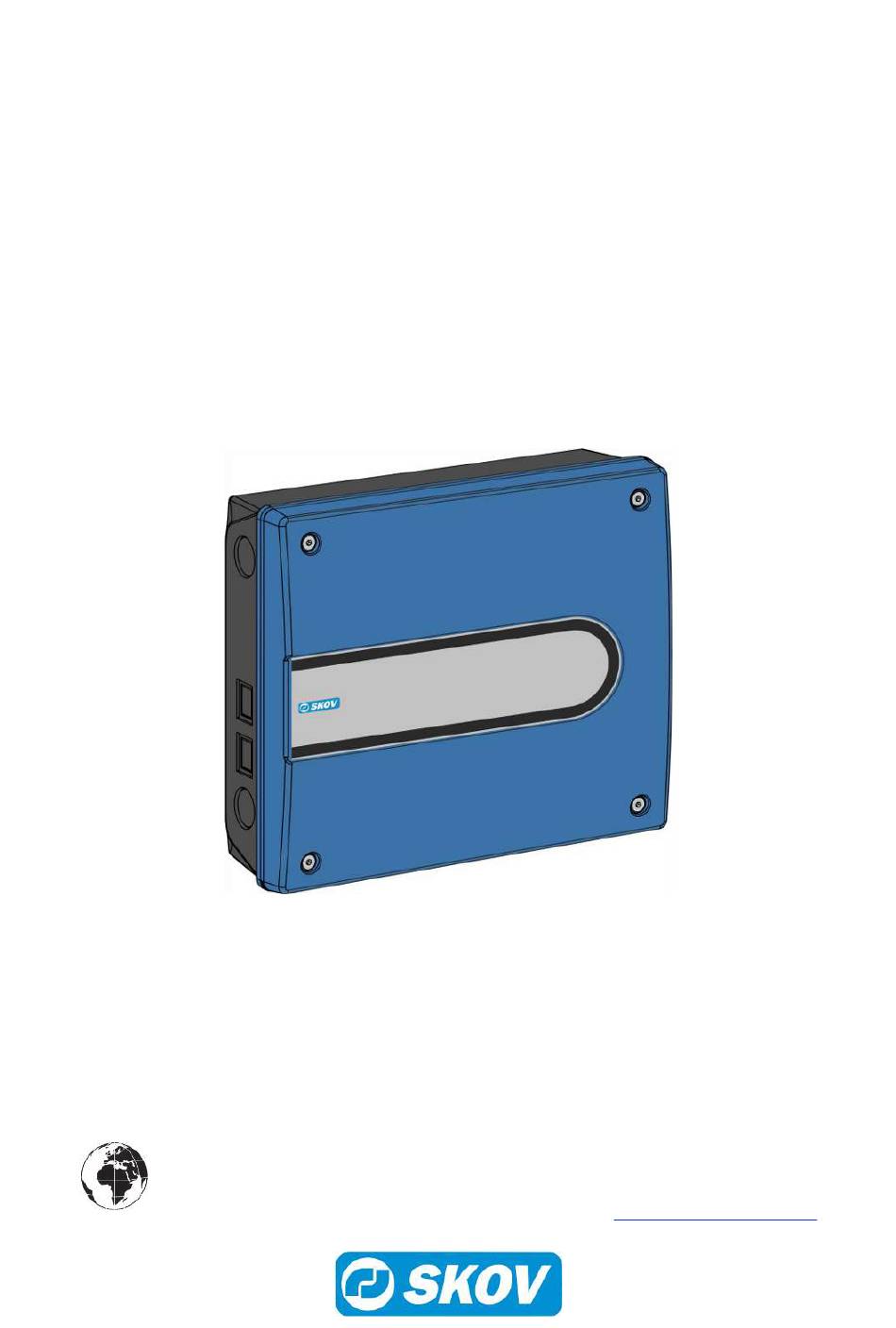

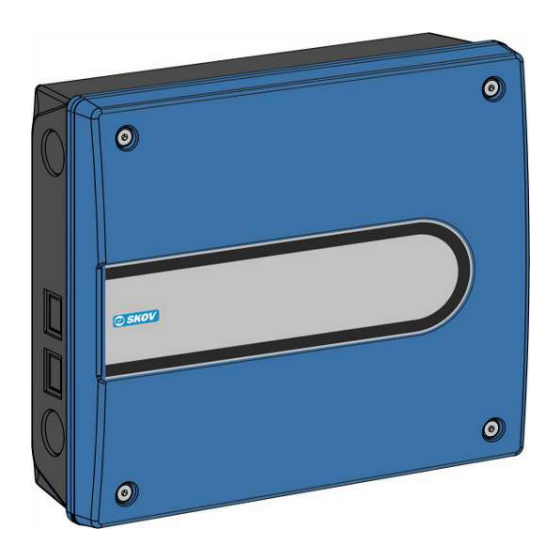

DOL Extension Box
Technical User Guide
English For other language variants of this document we refer to:
Español Para otras variantes del idioma de este documento, visite:
Français Pour les versions dans d'autres langues de ce document veuillez consulter:
http://docs.skov.com/1174
604066 • 2022-03-09
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Skov DOL
Summary of Contents for Skov DOL
- Page 1 DOL Extension Box Technical User Guide English For other language variants of this document we refer to: Español Para otras variantes del idioma de este documento, visite: Français Pour les versions dans d'autres langues de ce document veuillez consulter: http://docs.skov.com/1174...
-
Page 3: Product Description
This User's Guide deals with the installation and connection of: • 136470 DOL extension box, Small 10RL with 1 x IO type 3, 10RL 8AI 8AO • 136471 DOL extension box, Small 20RL with 2 x IO type 3, 10RL 8AI 8AO The structure of the manual follows the required work routines. - Page 4 Item Description Crosshead screwdriver Screwdriver straight slot (2 pcs.) Power drill Hammer Number Description DOL extension box with one or two I/O modules. Rubber sleeve for controller cabinet Chipboard screw 5x80 pan TX25 A2 Rawlplug 8 mm Technical User Guide...
- Page 5 DOL Extension Box Install the extension box so it is not exposed to frost or direct sunlight. Mount the extension box to the left or the right of the controller. Controller Extension box right Extension box left Controller 1. Knock out 2 knock-out pieces in the sides of the box (A) or (AA) and the side of the controller.
- Page 6 DOL Extension Box 3 Installation guide Installation, servicing and troubleshooting of all electrical equipment must be carried out by quali- fied personnel in compliance with the applicable national and international standard EN 60204-1 and any other EU standards that are applicable in Europe.
- Page 7 DOL Extension Box Extension box with 1 x I/O module (136470) 1. Connect the flat cable plug from I/O module 1 in the controller to I/O module 2 in the extension box (A) 2. Set the jumper OFF/ON (C) on the controller I/O module 1 to OFF.
- Page 8 ON = Emergency opening can override relay so inlet opens. OFF = Factory setting. Emergency opening cannot override re- lay. AI = Analog input. DI = Digital input DOL 12= DOL 12 input 0-10 V inputs on the I/O module are set to: Setting Application Placement...
-
Page 9: Technical Data
DOL Extension Box 4 Technical data Electrical V AC Rated voltage 230/240 ± 10% V AC Operating voltage 103.5-264 Frequency 50/60 Max. power consumption I/O module type 3 IO type 3, 10RL 8AI 8AO With jumpers for configuration of inputs. -
Page 10: Dimensioned Sketch
DOL Extension Box 4.1 Dimensioned sketch Technical User Guide... - Page 12 SKOV A/S • Hedelund 4 • Glyngøre • DK-7870 Roslev Tel. +45 72 17 55 55 • www.skov.com • E-mail: skov@skov.dk...
