5.2 Wall Mounting

Parts required:
T80XL - Wall Bracket
Step 1:
Remove all four M8 bolts from the rear of the
loudspeaker.
Step 2:
Remove the front of the bracket from the main
bracket assembly. Attach the rear of the bracket
assembly to the wall making sure all 4 bolts are
fitted.
Take care when mounting the bracket
to the wall, making sure to use the
correct fixing and that the wall can
take the load, for example do not
attach the bracket to a stud wall.
UG10582-2.0 - Cyclone 8 User Guide V2.0
White - IT1115
Black - IT1114

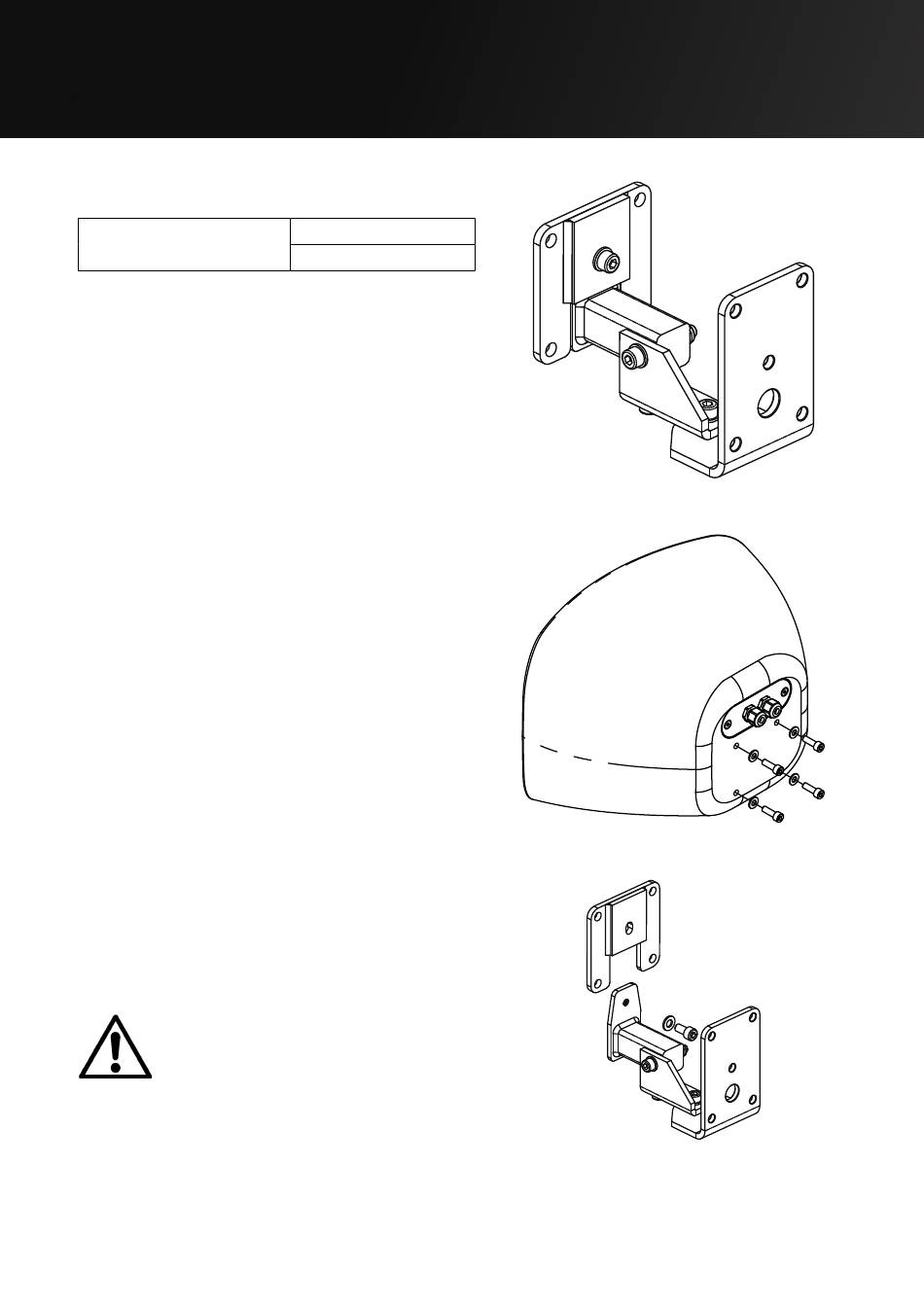

Figure 5.1: T80XL wall mount bracket
Figure 5.2: Cyclone 8 bolt removal
Figure 5.3: Deconstructing the bracket assembly
