4.6 Amplifier loading guidelines
Ensure all amplifier channels are loaded equally. Limiters engage correctly. Cabinets acoustic
principles are the same.
UG10576-2.0 - Nexus Q User Guide V2.0
Bias Q5

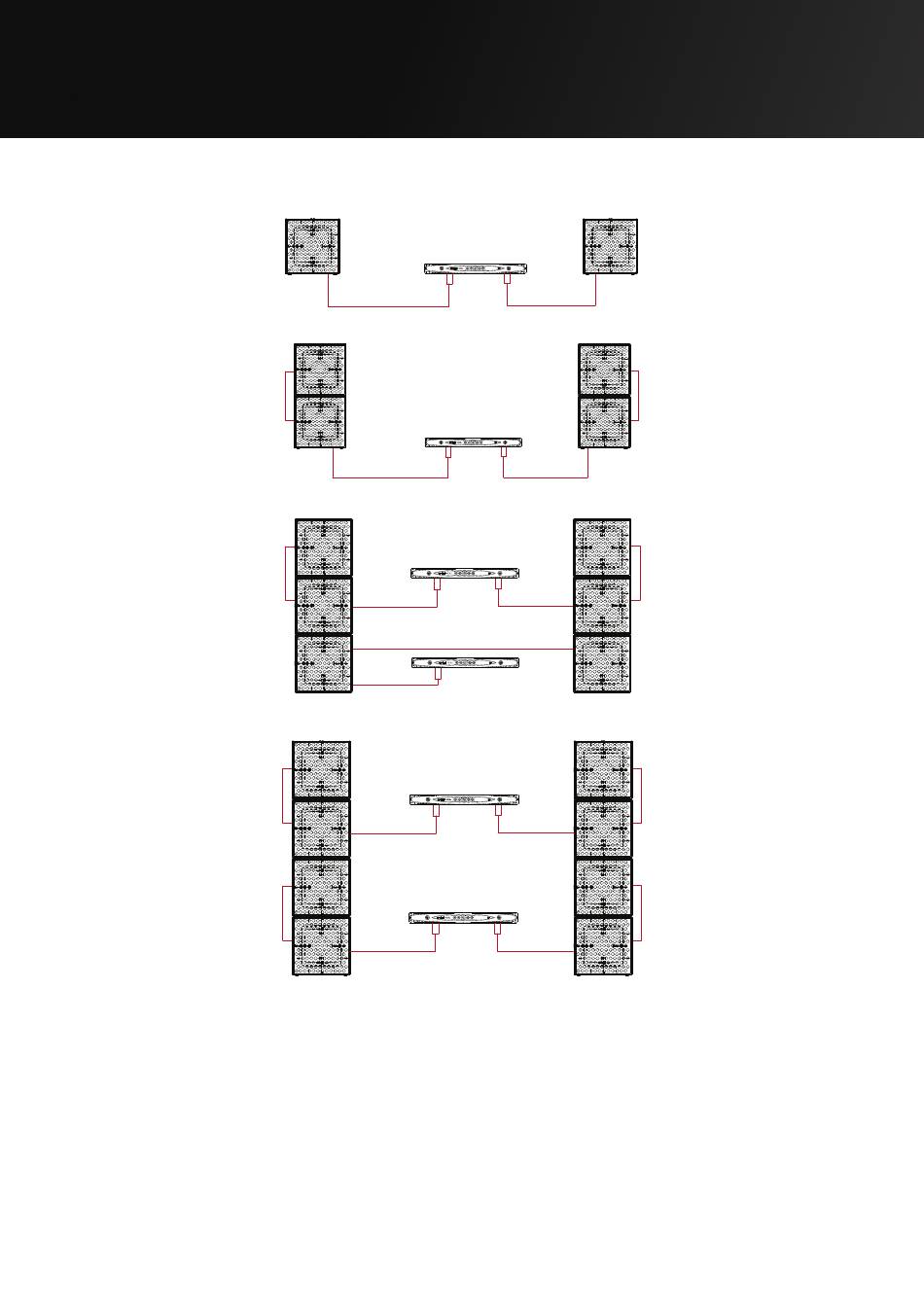

Figure 4.5: 2 x Nexus Q: 4 Ω per channel/1 amplifier
Bias Q5
Figure 4.6: 4 x Nexus Q: 2 Ω per channel/1 amplifier
Bias Q5
Bias Q5
Figure 4.7: 6 x Nexus Q: 2 Ω per channel/2 amplifier
Bias Q5
Bias Q5
Figure 4.8: 8 x Nexus Q: 2 Ω per channel/2 amplifier
