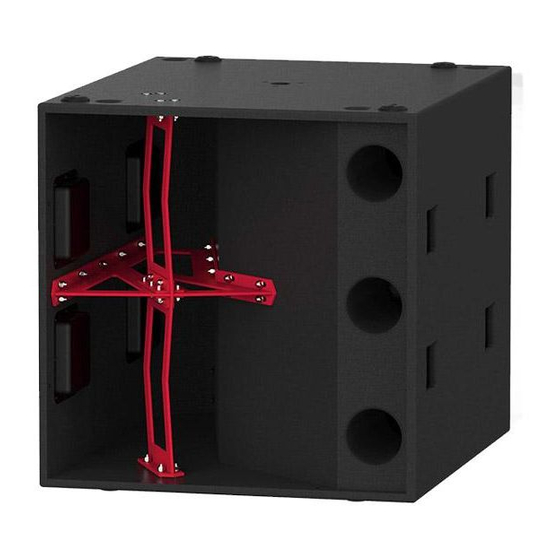

- Page 1 voidacoustics.com Nexus XL Mind-blowing energy, enviable design U S E R G U I D E V 2 . 0...
- Page 2 For the latest online version, visit: www.voidacoustics.com Void Acoustics and the Void logo are registered trademarks of Void Acoustics Research Ltd. in the United Kingdom, USA and other countries; all other Void trademarks are the property of Void Acoustics Research Ltd.
-
Page 3: Table Of Contents
Contents Safety and Regulations Important Safety Instructions Limitations EC Declaration of Conformity UKCA Conformity Warranty Statement WEEE Directive Unpacking and Checking About Welcome Nexus XL Overview Key Features Nexus XL Soecifications Nexus XL Dimensions Cable and Wiring Electrical Safety Cable Considerations for Fixed Installations Impedance Graph Nexus XL Wiring Diagram Bias Q5 speakON™... -
Page 4: Safety And Regulations
Void Acoustics Research Ltd for such as when the power-supply cord or plug is damaged, liquid reprocessing. -
Page 5: Unpacking And Checking
2 Unpacking and Checking All Void Acoustics products are carefully manufactured and thoroughly tested before being despatched. Your dealer will ensure that your Void products are in pristine condition before being forwarded to you but mistakes and accidents can happen. -
Page 6: About
In buying this product, you are now part of the Void family and we hope using it brings you years of satisfaction. This guide will help you both use this product safely and ensure it performs to its full capability. -
Page 7: Nexus Xl Soecifications
3 About 3.4 Nexus XL specifications Frequency response 30 Hz - 150 Hz ±3dB Effciency 104 dB 1W/1m 8 Ω Nominal impedance Power handling 2000 W AES Maximum output 135 dB cont, 141 dB peak Driver configuration 1 x 21” Dispersion Array dependant Connectors... -
Page 8: Cable And Wiring
To avoid electrical hazards please note the following: • Do not access the inside of any electrical equipment. Refer servicing to Void-approved service agents. 4.2 Cable considerations for fixed installations We recommend specifying installation-grade Low Smoke Zero Halogen (LSZH) cables for permanent installations. -
Page 9: Nexus Xl Wiring Diagram
4 Cable and Wiring 4.4 Nexus XL wiring diagram 21” LF Out/Link Figure 4.2: Wiring diagram speakON pins 1+/1- speakON pins 2+/2- LF (21”) Out/link LF link Out/link 4.5 Bias Q5 speakON wiring LF 1+ LF 1- LF 1+ LF 1- Figure 4.3: Bias Q5 Bias Q5 Channel 1... -
Page 10: Amplifier Loading Guidelines
4 Cable and Wiring 4.6 Amplifier loading guidelines Figure 4.4: 2 x Nexus XL: 8 Ω per channel/1 amplifier Figure 4.5: 4 x Nexus XL: 4 Ω per channel/1 amplifier Figure 4.6: 6 x Nexus XL: 8 Ω per channel/2 amplifier Figure 4.7: 8 x Nexus XL: 4 Ω... -
Page 11: Adjustments
5 Adjustments To avoid damage when making adjustments please note the following: • Removing the grille can cause debris to collect within the enclosure, take care to remove anything that may have collected internally • Do not use impact tools. 5.1 Wheel removal Step 1: Remove all four M6 bolts with a 13 mm spanner/... -
Page 12: Grille Removal
5 Adjustments 5.2 Grille removal Step 1: Undo all twelve M6 tab bolts using a 4 mm Allen key, take care NOT to remove the tab bolts as they may become lost within the enclosure. Figure 5.4: Bolt removal Step 2: Remove grille. -
Page 13: Service
Before returning your faulty product for repair, please remember to get an R.A.N. (Return Authorisation Number) from the Void dealer who supplied the system to you. Your dealer will handle the necessary paperwork and repair. Failure to go through this return authorisation procedure could delay the repair of your product. -
Page 14: Appendix
External dimensions of (H) 754 mm x (W) 738 mm x (D) 860 mm (29.7” x 29” x 3.9”). Weight shall be 90 kg (198.4 lbs). The loudspeaker shall be the Void Acoustics Nexus XL. UG10578-2.0 - Nexus XL User Guide V2.0... - Page 15 H E A D O F F I C E Void Acoustics Research Ltd, Unit 15, Dawkins Road Industrial Estate, Poole, Dorset, BH15 4JY United Kingdom Call: +44(0) 1202 666006 Email: info@voidacoustics.com voidacoustics.com Void Acoustics Research Limited is a company registered in England and Wales registration number 07533536...
