Summary of Contents for Avigilon H4A-D1
-

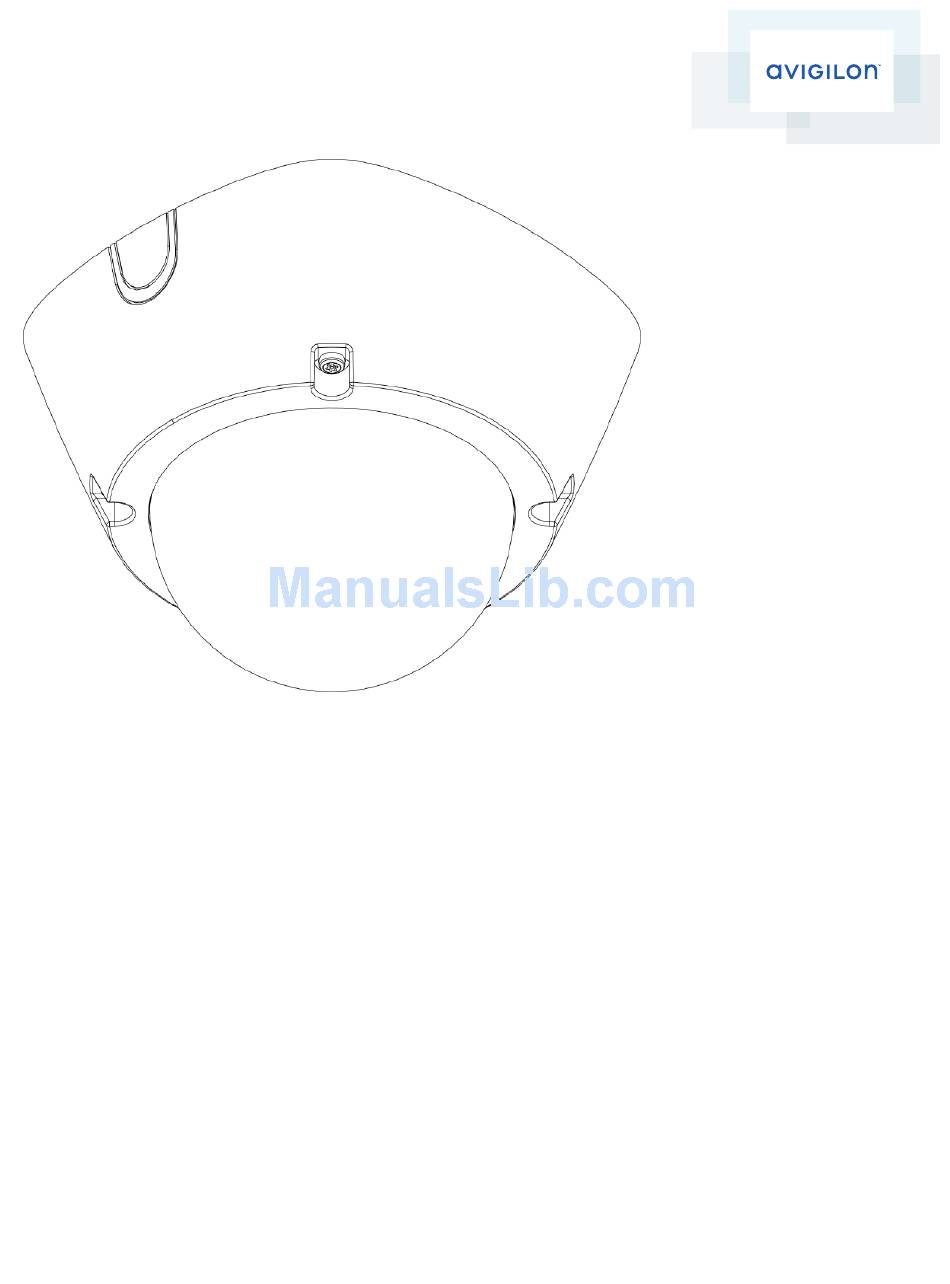

Page 1: Installation Guide
Installation Guide Avigilon™ H4 HD Dome Camera Models: H4A-D1, H4A-D1-IR, H4A-D2... - Page 2 Ethernet (PoE), rated 48 VDC, 7 W min (9 W min. for -IR model). Any external power supply connected to this product may only be connected to another Avigilon product of the same model series. External power connections must be properly insulated.
-
Page 3: Fcc Notice
Consult the dealer or an experienced radio/TV technician for help. Changes or modifications made to this equipment not expressly approved by Avigilon Corporation or parties authorized by Avigilon Corporation could void the user’s authority to operate this equipment. Disposal and Recycling Information When this product has reached the end of its useful life, please dispose of it according to your local environmental laws and guidelines. -
Page 4: Legal Notices
© 2016, Avigilon Corporation. All rights reserved. AVIGILON, the AVIGILON logo, AVIGILON CONTROL CENTER, and ACC are trademarks of Avigilon Corporation. Other product names mentioned herein may be the trademarks of their respective owners. The absence of the symbols ™ and ® in proximity to each trademark in this document is not a disclaimer of ownership of the related trademark. -
Page 5: Table Of Contents
Table of Contents Overview Cover View Bottom View Wall Plate View Base View Front View Rear View IR View Installation Required Tools and Materials Camera Package Contents Installation Steps Removing the Dome Cover Mounting and Aiming Video Analytics Cameras Inserting Cables through the Sealing Grommet Mounting the Dome Camera Mounting the Dome Camera Using the Bottom Cable Entry Hole Mounting the Dome Camera Using the Side Cable Entry Hole... - Page 6 Setting the IP Address Using the ARP/Ping Method Cleaning Dome Bubble Body Specifications Limited Warranty and Technical Support...
-
Page 7: Overview
Overview Cover View 1. Dome cover Vandal proof dome cover. 2. Tamper resistant screws Torx captive screws to fix the dome cover to the base. 3. Sidewall plug Covers the side cable entry hole. Overview... -
Page 8: Bottom View
Bottom View 1. Cable entry hole An entry hole for the cables required for camera operation. 2. Mounting holes Mounting points for the camera. 3. Wall plate mounting screws Screws to attach the camera to the wall plate. Bottom View... -
Page 9: Wall Plate View
Wall Plate View 1. Leveling edge Flat edge for aligning the wall plate to an electrical box. 2. Wall plate mounting points Points for mounting the camera to the wall plate 3. Electrical box mounting holes Holes for mounting the wall plate to an electrical box. The wall plate supports four configurations: A. -
Page 10: Base View
Base View 1. Lanyard Connects to a lanyard hook on the dome cover. Base View... -
Page 11: Front View
Front View 1. Power connector block Accepts a terminal block with either an AC or DC power connection. DC input can be either polarity. Only required when Power over Ethernet is not available. 2. Link LED Indicates if there is an active connection in the Ethernet port. 3. -
Page 12: Rear View
2. SD card slot Accepts an SD card for onboard storage. 3. Micro USB port Accepts a micro USB to USB adapter. Only required when using the Avigilon USB Wifi Adapter. 4. I/O connector block Provides connections to external input/output devices. -
Page 13: Ir View
IR View IR Illuminator Ring Provides scene illumination in the IR spectrum. The IR illuminator ring is not included with all models. IR View... -
Page 14: Installation
No. 2 Phillips screwdriver — for attaching camera to an electrical box or wall T20 Pin-In Torx driver Camera Package Contents Ensure the package contains the following: Avigilon™ H4 HD Dome Camera Mounting template sticker RJ-45 grommet piercing Cap ... -
Page 15: Removing The Dome Cover
Keep the protective covers on the bubble until after the installation is complete. Mounting and Aiming Video Analytics Cameras When installing an Avigilon video analytics camera, follow the listed mounting and aiming recommendations to maximize the camera's analytics capabilities: ... -
Page 16: Mounting The Dome Camera
Mounting the Dome Camera CAUTION — This camera is designed for indoor use only. Mounting the Dome Camera Using the Bottom Cable Entry Hole Perform the following steps if the required cables will be coming out of the mounting surface. Use this procedure on surfaces that can easily be cut, such as drywall, and when the cables should be kept out of sight. -
Page 17: Connecting Cables
3. Insert the sealing grommet with the required cables pulled through into the cable entry hole on the bottom of the camera. For more information on using the sealing grommet, see Inserting Cables through the Sealing Grommet on page 9 4. Mount the camera onto the wall plate using the wall plate mounting screws Connecting Cables Refer to the diagrams in the Overview section for the location of the different connectors. -
Page 18: (Optional) Using The Usb Wifi Adapter
For more information about configuring the camera from the mobile web interface see Avigilon USB Wifi Adapter System User Guide. NOTE: The camera will reserve the 10.11.22.32/28 subnet for internal use while the USB Wifi Adapter is plugged in. -
Page 19: (Optional) Configuring Sd Card Storage
4. Rotate the azimuth control ring to set the image to the correct angle. 5. In the camera web browser interface or the Avigilon Control Center software, adjust the camera’s Image and Display settings. You can set the zoom position, focus, and change the image rotation. -
Page 20: Zooming And Focusing The Dome Camera
In the camera web browser interface or the Avigilon Control Center software, use the camera’s Image and Display settings to zoom and focus the camera. a. Use the zoom buttons to zoom the camera in or out. -
Page 21: For More Information
If the camera is connected to the Avigilon Control Center, you can use the client software to configure the camera. For more information, see the Avigilon Control Center Client User Guide. If the camera is connected to a third-party network management system, you can configure the camera's specialty features in the camera's web browser interface. -
Page 22: Cable Connections
Cable Connections Connecting External Power NOTE: Do not perform this procedure if Power over Ethernet (POE) is used. If PoE is not available, the camera needs to be powered through the removable power connector block. Refer to the diagrams in this guide for the location of the power connector block. The power consumption information is listed in the product specifications. -
Page 23: Connecting To Microphones, Speakers And Video Monitors
Figure 1: Example application. 1. Ground 2. Input — To activate, connect the Input to the Ground pin. To deactivate, leave disconnected or apply between 3-15 V. 3. Output — When active, Output is internally connected with the Ground pin. Circuit is open when inactive. Maximum load is 25 VDC, 120 mA. - Page 24 Figure 2: Mini-jack audio video connector 1. Audio IN 2. Composite Video OUT 3. GND 4. Audio OUT Connecting to Microphones, Speakers and Video Monitors...
-
Page 25: Led Indicators
LED Indicators Once connected to the network, the Connection Status LED will display the progress in connecting to the Network Video Management software. The following table describes what the LEDs indicate: Connection Status Connection State Description One short flash every Obtaining IP Address Attempting to obtain an IP address. -
Page 26: Resetting To Factory Default Settings
Resetting to Factory Default Settings If the camera no longer functions as expected, you can choose to reset the camera to its factory default settings. Use the firmware revert button to reset the camera. The firmware revert button is shown in the following diagram: If you have video recorded to the SD card, be aware that resetting the camera will not affect the recorded video. -
Page 27: Setting The Ip Address Using The Arp/Ping Method
NOTE: The ARP/Ping Method will not work if the Disable setting static IP address through ARP/Ping method check box is selected in the camera's web browser interface. For more information, see the Avigilon™ High Definition H.264 Web Interface User Guide. -
Page 28: Cleaning
Cleaning Dome Bubble If the video image becomes blurry or smudged in areas, it may be because the dome bubble requires cleaning. To clean the dome bubble: Use hand soap or a non-abrasive detergent to wash off dirt or finger prints ... -
Page 29: Specifications
Camera Audio Input/Output Line level input and output, A/V mini-jack (3.5 mm) Video Output NTSC/PAL, A/V mini-jack (3.5 mm) H4A-D1: (1 – 3 MP models) 3-9 mm, F1.3, P-iris (5 – 8 MP models) 4.3-8 mm, F1.8, P-iris... - Page 30 VDC: 12 V +/- 10%, 7 W min (9 W min with -IR option) Power Source VAC: 24 V +/- 10%, 10 VA min (13 VA min with -IR option) PoE: IEEE802.3af Class 3 compliant Power Connector 2-pin terminal block RTC Backup Battery 3V manganese lithium Environmental...
-
Page 31: Limited Warranty And Technical Support
Limited Warranty and Technical Support Avigilon warrants to the original consumer purchaser that this product will be free of defects in material and workmanship for a period of 3 years from date of purchase. The manufacturer’s liability hereunder is limited to replacement of the product, repair of the product or replacement of the product with repaired product at the discretion of the manufacturer.
