Instructions and maintenance

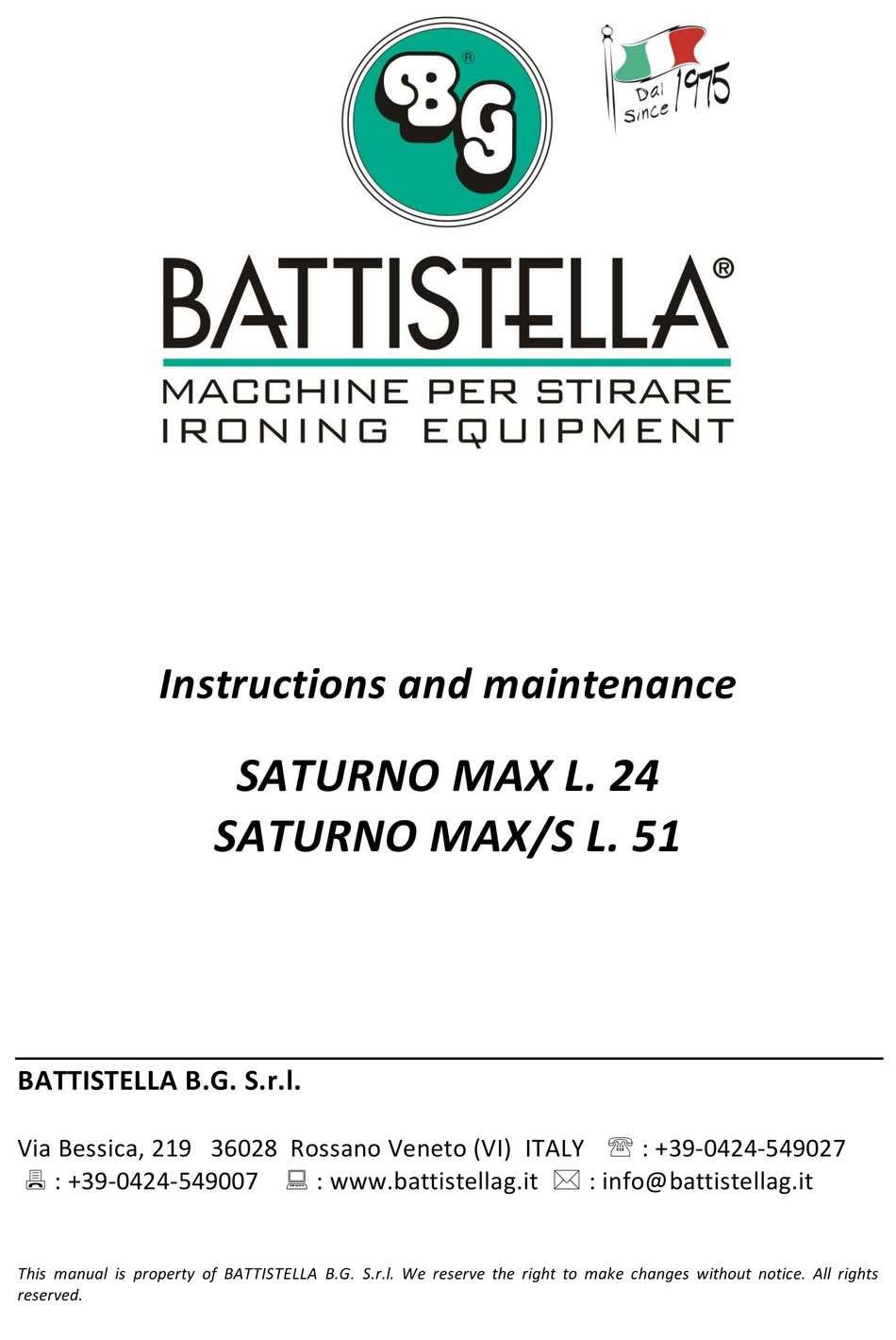

SATURNO MAX L. 24
SATURNO MAX/S L. 51
BATTISTELLA B.G. S.r.l.
Via Bessica, 219 36028 Rossano Veneto (VI) ITALY : +39-0424-549027
: +39-0424-549007 : www.battistellag.it : info@battistellag.it
This manual is property of BATTISTELLA B.G. S.r.l. We reserve the right to make changes without notice. All rights
reserved.
Advertisement
Related Manuals for battistella SATURNO MAX L.24
Summary of Contents for battistella SATURNO MAX L.24
- Page 1 Via Bessica, 219 36028 Rossano Veneto (VI) ITALY : +39-0424-549027 : +39-0424-549007 : www.battistellag.it : info@battistellag.it This manual is property of BATTISTELLA B.G. S.r.l. We reserve the right to make changes without notice. All rights reserved.
-
Page 2: Specifications

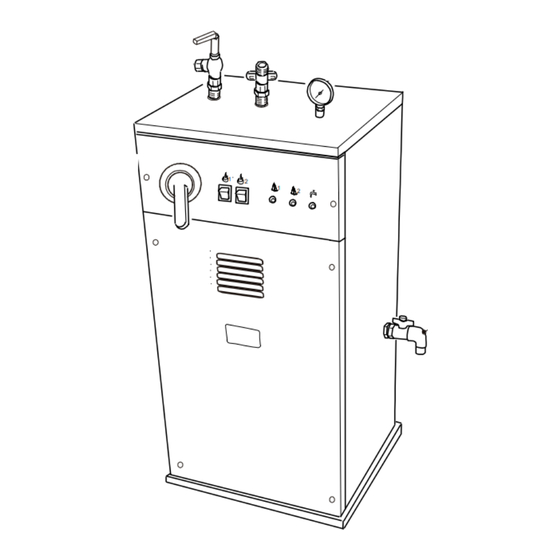

INSTRUCTIONS AND MAINTENANCE SATURNO MAX L 24 – SATURNO MAX/S L 51 Read these directions carefully before operating. Don’t use the machine differently from the following description. 1. SPECIFICATIONS MODEL: SATURNO MAX L 24 SATURNO MAX/S L 51 POWER SUPPLY: 400 V +NEUTRAL–50Hz 400 V +NEUTRAL–50Hz TOTAL INSTALLED POWER:... - Page 3 2. IMPORTANT SWITCH WITH FUSES OR MAGNETO- Before installing THERMIC SWITCH SATURNO MAX, necessary to set up the PLUG following facilities: 1. a water connection (tap with hose SLUICE VALVE holder); rubber SAFETY tube which must MANOMETER VALVE have pressure capacity of at least 10 ATM will connect the SATURNO MAX to...
-
Page 4: Connection And Starting
1. Open the box containing SATURNO MAX from the upper side marked as ALTO take instructions manual and read carefully. 2. It is recommended to lay the machine flat and in such a position so as to allow a smooth operation and a perfect maintenance. 4. -
Page 5: Ordinary Maintenance
Make sure the water filter is not obstructed because of dirt waste (fig. 4A). The lamps of heating element 1 and 2 are always on, but the boiler does not reach steam operating pressure: Make sure the main switch for power supply is on. If the problem persists: disconnect the plug and make sure the voltage is on and the power supply cable is connected to the steam generator correctly;... - Page 6 Fig. 4A Fig. 4B 8. POSSIBLE FAILURES The manometer marks pressure in the boiler even if the machine is off and cold: Check the level control and the water inlet valve. The pump lamp is on and the pump is activated, but the boiler does not get water: Make sure the tube for water inlet in the boiler is not ob structed by limestone, check the water inlet filter (fig.
- Page 7 4. make sure that during cold season tubes connecting SATURNO MAX to water supply do not freeze. 10. ELECTRICAL RISKS The following situations are considered dangerous for the operator: the earth protector switch is activated when turning on the switches, using SATURNO MAX during thunderstorms, loss of water or steam from the inner parts of SATURNO MAX.
- Page 8 (included, without any limitation, consequential damages due to loss or no profit, cutback or any other economical loss) deriving from the use of a BATTISTELLA machine, even in case the Company had been previously informed of such kind of possibility.
Need help?
Do you have a question about the SATURNO MAX L.24 and is the answer not in the manual?
Questions and answers

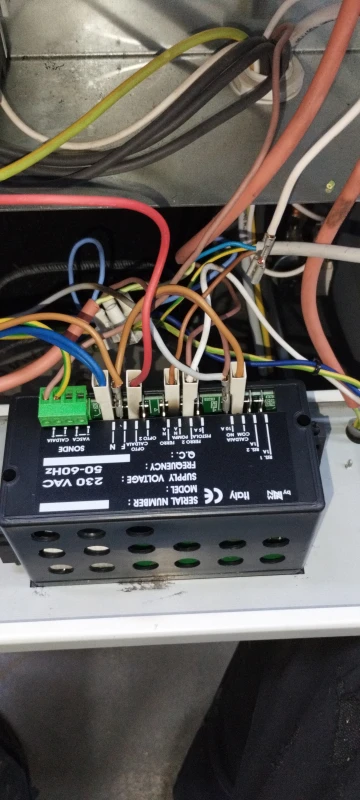

Как правельно подключить пульт управления?
