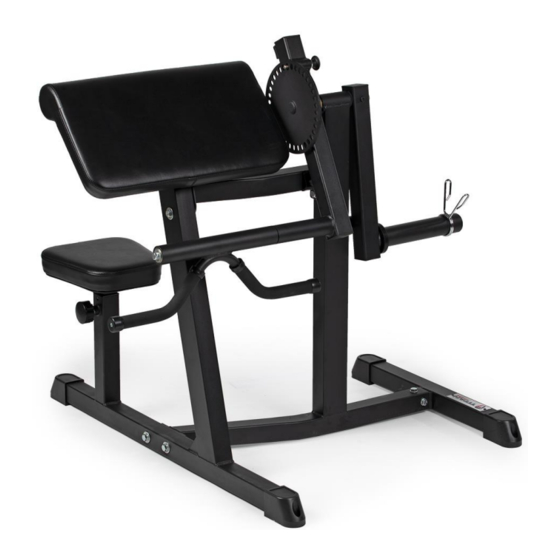

- Page 1 BICEP TRICEP CURL MACHINE BTMCN 400789 Operator’s Manual Read the Operator’s Manual entirely. When you see this symbol, the subsequent instructions and warnings are serious follow without exception. Your life and the lives of others depend on it!
- Page 2 PARTS DIAGRAM / EXPLODED VIEW...
-
Page 3: Rubber Cushion
DESCRIPTION DESCRIPTION MAIN FRAME (24) RUBBER CUSHION UPRIGHT FRAME (25) KNOB CONNECT FRAME (26) HOLLOW SLEEVE SEAT CUSHION FRAME (27) FOOT MAT SWING FRAME (28) END CAPΦ48*2 CAM FRAME (29) END CAP □40*2 ROTARY HANDLE FRAME (30) END CAP □50*3 BASE FRAME (31) BEARING 61805ZZ... - Page 4 ASSEMBLY INSTRUCTIONS STEP 1 Connect Main Frame (1), Upright Frame (2), Connect Frame (3) and Base Frame (8), using Flat Washer (32, 33), Spring Washer (34), Nut M10 (35), and Hex Bolt (36, 37, 43).
- Page 5 ASSEMBLY INSTRUCTIONS STEP 2 Assemble the Fixing Plate (10) on Main Frame (1), using Flat Washer (33), Nut M10 (35), and Hex Bolt M10*25 (36).
- Page 6 ASSEMBLY INSTRUCTIONS STEP 3 Fix Seat Cushion (9) on Seat Cushion Frame (4), using Flat Washer (33) and Hex Bolt M10*25 (36), then insert the Seat Cushion Frame (4) into the Main Frame (1). Fix Arm Cushion (11) on the Fixing plate (10), using Flat Washer (33) and Hex Bolt (36).
- Page 7 ACKNOWLEDGEMENT OF RISK AND RELEASE OF LIABILITY The use of any equipment, including this one, involves the potential risk of injury. Apart from any warranty claim that might be presented for a claimed defect in material or workmanship of the product, you accept and assume full responsibility for any and all injuries, damages (both economic and non-economic), and losses of any type, which may occur, and you fully and forever release and discharge Titan, its insurers, employees, officers, directors, associates, and agents from any and all claims, demands, damages,...
- Page 8 NEED HELP? CONTACT US FIRST. 1-888-410-1503 info@titan.fitness www.titan.fitness © 2021 Titan Brands...
