Snap Server 14000
Removing the SCSI and Ethernet Cards from the Old Motherboard Tray
Assembly

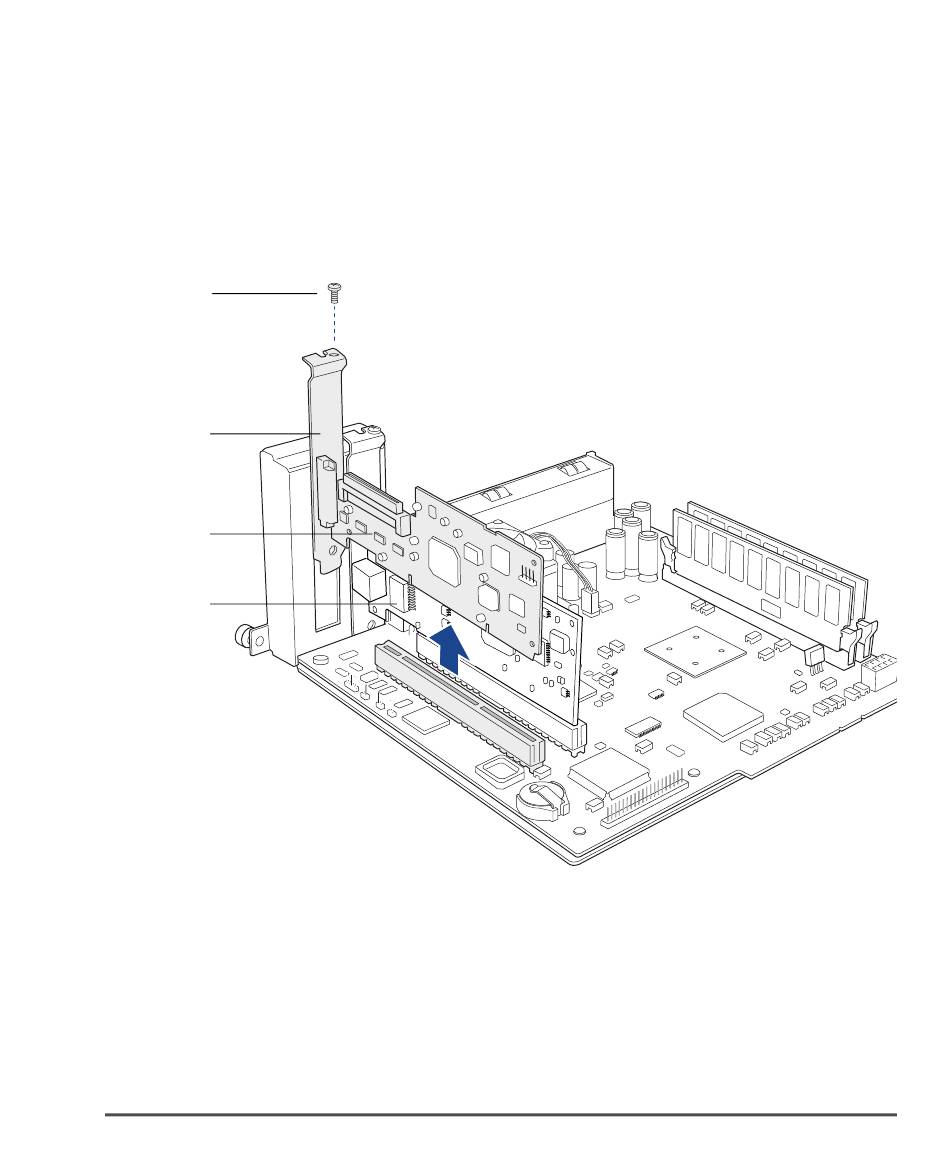

Unscrew the top screw that attaches the SCSI card bracket to the motherboard
1
tray.
Set the screw aside in a safe place. You use it later to attach the SCSI card bracket
to the new motherboard tray assembly.
Top screw
Bracket
SCSI card
Ethernet card
(inner slot)
Remove the SCSI card.
2
Repeat steps 1 and 2 to remove the Ethernet card from the inner slot.
3
