The Snap Server® 14000 Motherboard Tray Assembly

Shutting Down the Server

Shut down the server.
1
Shut down the server before you make any repairs. Improper shutdown may
Caution
lead to loss of data or physical harm.
Turn off the power modules.
2
Make sure the switch on each power module is in the off position.
Disconnect the AC power cords from the back of the server.
3
Disconnect the SCSI and Ethernet connectors.
4

Removing the Motherboard Tray Assembly

At the back of the server, loosen the 2 thumbscrews on either side of the
1
motherboard tray assembly.
Pull the motherboard tray assembly out of the server.
2
Place the motherboard tray assembly on a grounded, padded surface.
3
2
Copyright © 2009, Overland Storage, Inc. All rights reserved. Information in this document is subject to change without notice and does
not represent a commitment on the part of Overland Storage or any of its subsidiaries.
Snap Server 14000

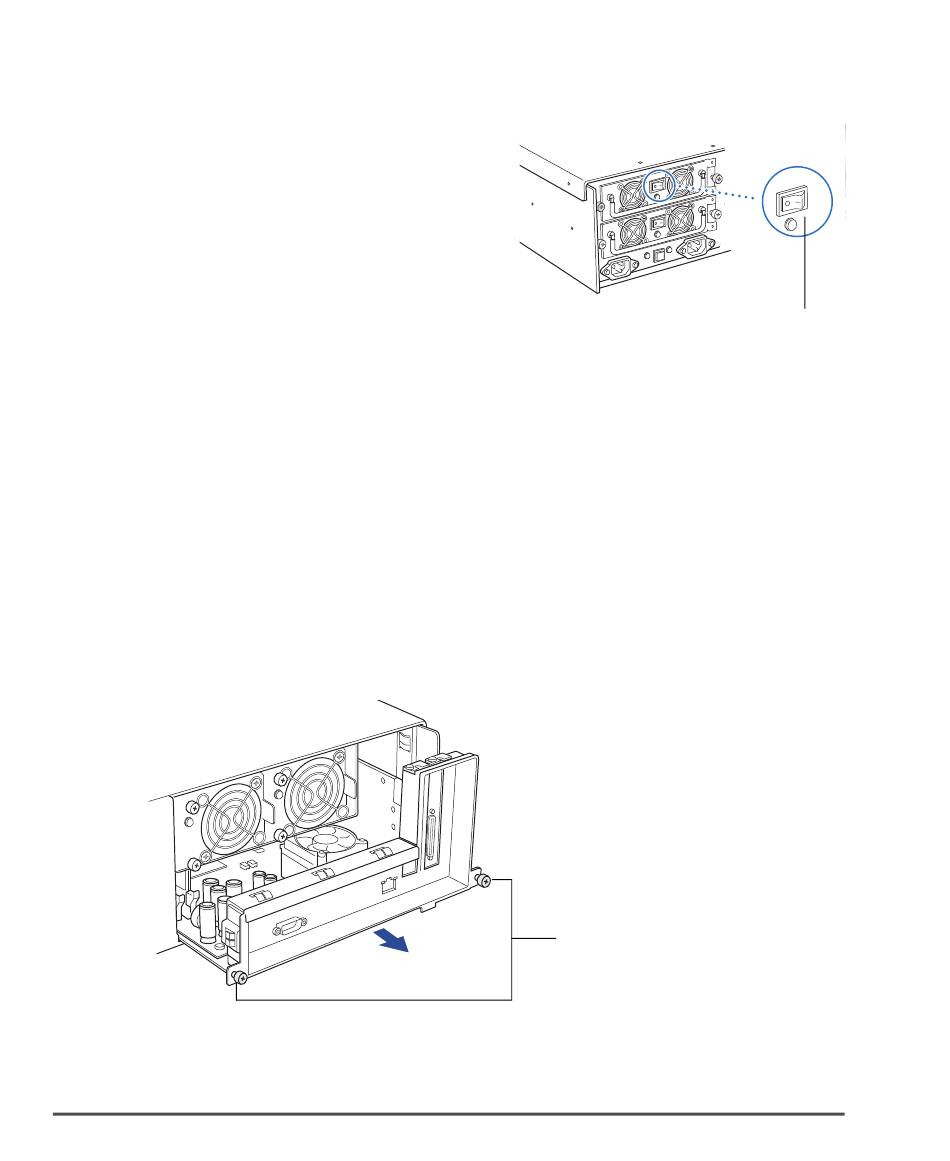

Power module on/off
switch in off position
Thumbscrews on the
motherboard tray assembly
