Overview

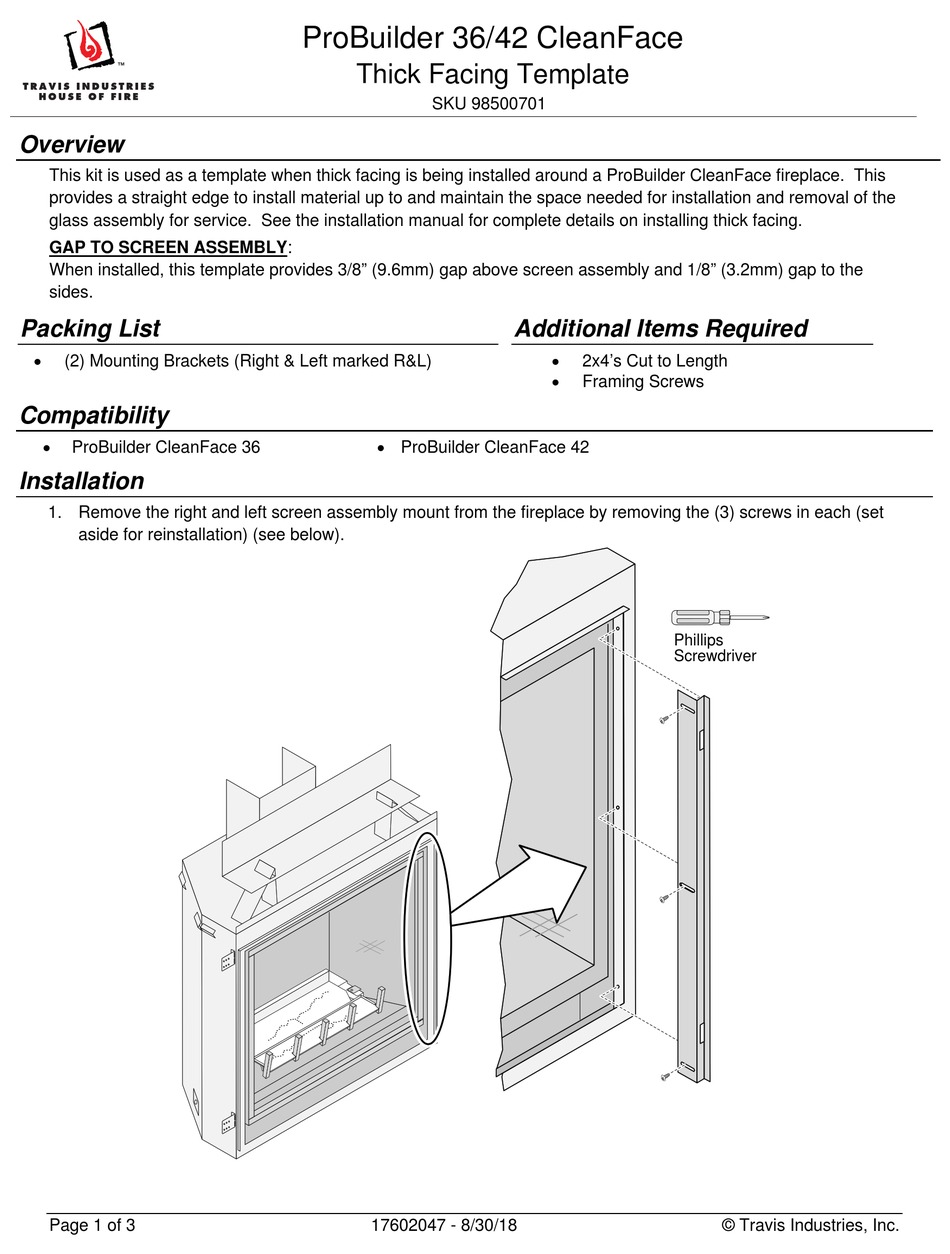

This kit is used as a template when thick facing is being installed around a ProBuilder CleanFace fireplace. This
provides a straight edge to install material up to and maintain the space needed for installation and removal of the
glass assembly for service. See the installation manual for complete details on installing thick facing.
GAP TO SCREEN ASSEMBLY:
When installed, this template provides 3/8" (9.6mm) gap above screen assembly and 1/8" (3.2mm) gap to the
sides.
Packing List
(2) Mounting Brackets (Right & Left marked R&L)
Compatibility
ProBuilder CleanFace 36
Installation
1. Remove the right and left screen assembly mount from the fireplace by removing the (3) screws in each (set
aside for reinstallation) (see below).
Page 1 of 3
ProBuilder 36/42 CleanFace
Thick Facing Template
SKU 98500701
ProBuilder CleanFace 42
17602047 - 8/30/18
Additional Items Required
2x4's Cut to Length
Framing Screws
Phillips
Screwdriver
© Travis Industries, Inc.
Advertisement
Table of Contents
Related Manuals for Travis Industries 98500701
Summary of Contents for Travis Industries 98500701
- Page 1 ProBuilder CleanFace 36 Installation 1. Remove the right and left screen assembly mount from the fireplace by removing the (3) screws in each (set aside for reinstallation) (see below). Phillips Screwdriver Page 1 of 3 17602047 - 8/30/18 © Travis Industries, Inc.
- Page 2 5. Reinstall the right and left screen assembly mount. Secure them to the fireplace using the same Philips head screws. 6. Proceed with the installation as detailed in the appliance installation instructions. Page 2 of 3 17602047 - 8/30/18 © Travis Industries, Inc.
- Page 3 (see picture below). This allows for the required clearance to remove and reinstall the screen assembly for maintenance. Backing Material (1/2” or less) installs to the top tile stop and to the plates on the side of brackets. Non‐combustible facing thicker than 1‐1/2” installs to the top and sides of the template brackets Page 3 of 3 17602047 - 8/30/18 © Travis Industries, Inc.
