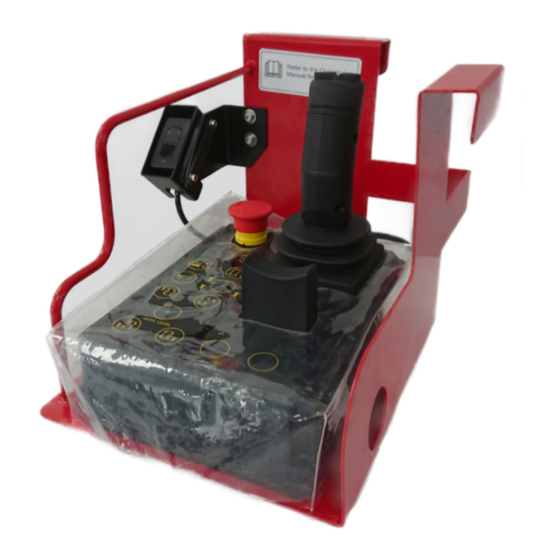

eqss OverWatch 6253 Installation Manual

Operator detection system
Hide thumbs Also See for OverWatch 6253:
Table of Contents

Advertisement

Quick Links

Download this manual

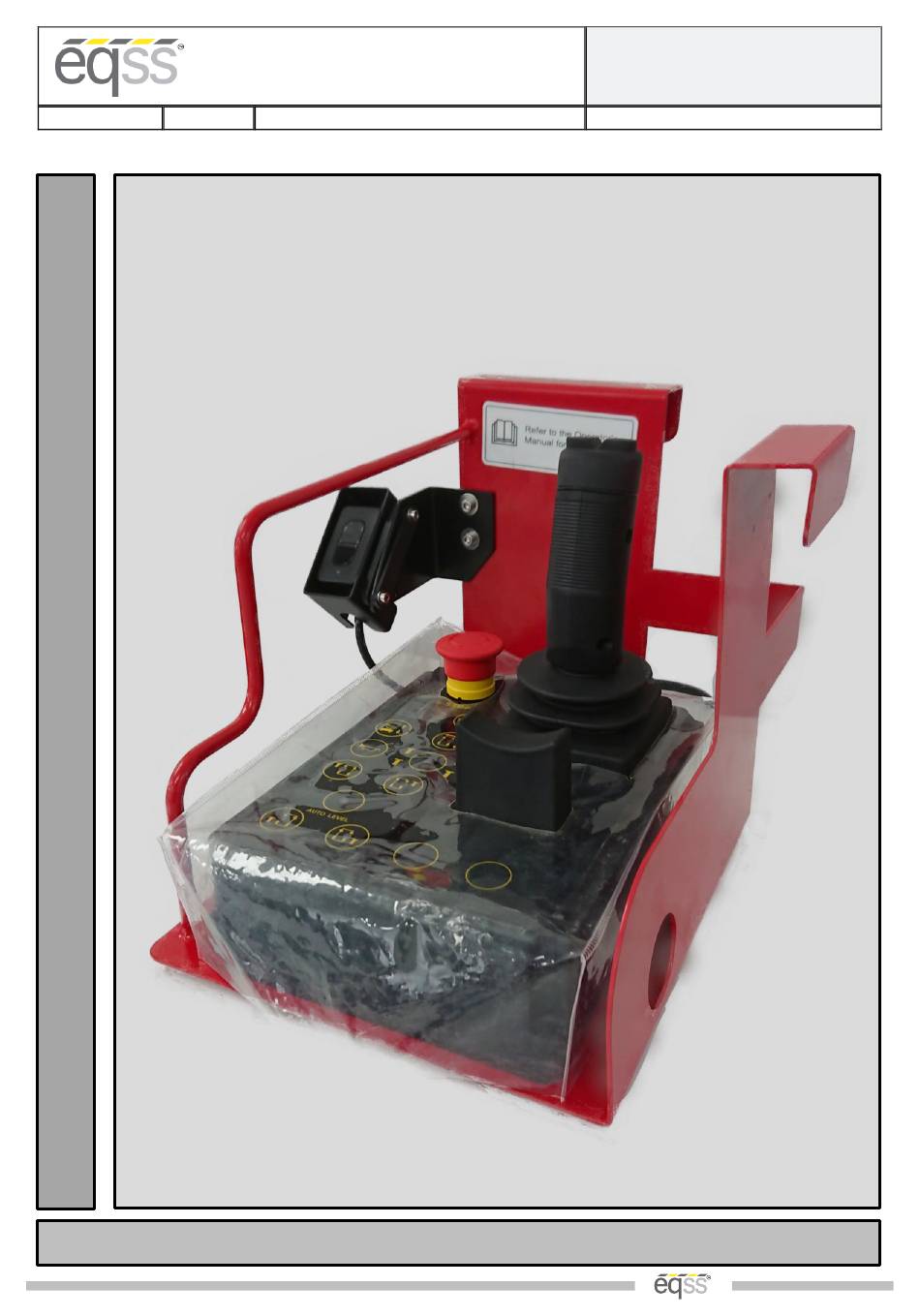

REV 1.2
14/4/2022
EQSS Model6253 – OverWatch™
I
Swift TSxxE
N
S
T
A
L
L
M
A
N
U
A
L
Failure to follow this installation manual will void warranty
EQUIPMENT SAFETY SYSTEMS
75 Naxos Way, Keysborough 3173 Victoria Australia
P: +61 3 8770 6555 E: support@eqss.com.au
Model6253 OverWatch™ Installation Manual
Swift TSxxE
Installation Manual
Document # DO001434
|1 of
26|

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OverWatch 6253 and is the answer not in the manual?

Questions and answers

Related Manuals for eqss OverWatch 6253

Summary of Contents for eqss OverWatch 6253

  • Page 1 EQUIPMENT SAFETY SYSTEMS Swift TSxxE 75 Naxos Way, Keysborough 3173 Victoria Australia Installation Manual P: +61 3 8770 6555 E: support@eqss.com.au REV 1.2 14/4/2022 Model6253 OverWatch™ Installation Manual Document # DO001434 EQSS Model6253 – OverWatch™ Swift TSxxE Failure to follow this installation manual will void warranty...
  • Page 2 EQUIPMENT SAFETY SYSTEMS Swift TSxxE 75 Naxos Way, Keysborough 3173 Victoria Australia Installation Manual P: +61 3 8770 6555 E: support@eqss.com.au REV 1.2 14/4/2022 Model6253 OverWatch™ Installation Manual Document # DO001434 AUTHORS: AUTHORISED BY: CHECKED BY: Lee Underwood Kieren Grogan...
  • Page 3 EQUIPMENT SAFETY SYSTEMS Swift TSxxE 75 Naxos Way, Keysborough 3173 Victoria Australia Installation Manual P: +61 3 8770 6555 E: support@eqss.com.au REV 1.2 14/4/2022 Model6253 OverWatch™ Installation Manual Document # DO001434 Important Information Information contained in this publication regarding this device’s applications and the like, is provided only for your convenience and may be superseded by updates.

  • Page 4: Table Of Contents

    EQUIPMENT SAFETY SYSTEMS Swift TSxxE 75 Naxos Way, Keysborough 3173 Victoria Australia Installation Manual P: +61 3 8770 6555 E: support@eqss.com.au REV 1.2 14/4/2022 Model6253 OverWatch™ Installation Manual Document # DO001434 Table of Contents Installation Instructions ..............................5 Operator Sensor ................................5 Control Module ................................

  • Page 5: Installation Instructions

    EQUIPMENT SAFETY SYSTEMS Swift TSxxE 75 Naxos Way, Keysborough 3173 Victoria Australia Installation Manual P: +61 3 8770 6555 E: support@eqss.com.au REV 1.2 14/4/2022 Model6253 OverWatch™ Installation Manual Document # DO001434 Installation Instructions If any decals are damaged during the installation process or if any decals are obstructed following the installation, they should be replaced accordingly.
  • Page 6 EQUIPMENT SAFETY SYSTEMS Swift TSxxE 75 Naxos Way, Keysborough 3173 Victoria Australia Installation Manual P: +61 3 8770 6555 E: support@eqss.com.au REV 1.2 14/4/2022 Model6253 OverWatch™ Installation Manual Document # DO001434 Drill two 5.2mm holes as shown in the diagram.
  • Page 7 EQUIPMENT SAFETY SYSTEMS Swift TSxxE 75 Naxos Way, Keysborough 3173 Victoria Australia Installation Manual P: +61 3 8770 6555 E: support@eqss.com.au REV 1.2 14/4/2022 Model6253 OverWatch™ Installation Manual Document # DO001434 Mount the operator sensor bracket in the located position using the supplied M5 nuts, bolts, and washers.

  • Page 8: Control Module

    EQUIPMENT SAFETY SYSTEMS Swift TSxxE 75 Naxos Way, Keysborough 3173 Victoria Australia Installation Manual P: +61 3 8770 6555 E: support@eqss.com.au REV 1.2 14/4/2022 Model6253 OverWatch™ Installation Manual Document # DO001434 Operator sensor installation is complete Control Module Step Description...
  • Page 9 EQUIPMENT SAFETY SYSTEMS Swift TSxxE 75 Naxos Way, Keysborough 3173 Victoria Australia Installation Manual P: +61 3 8770 6555 E: support@eqss.com.au REV 1.2 14/4/2022 Model6253 OverWatch™ Installation Manual Document # DO001434 Disconnect the 14-pin connector from the PCB. Note that there is a clip on the side of the connector that holding it in.
  • Page 10 EQUIPMENT SAFETY SYSTEMS Swift TSxxE 75 Naxos Way, Keysborough 3173 Victoria Australia Installation Manual P: +61 3 8770 6555 E: support@eqss.com.au REV 1.2 14/4/2022 Model6253 OverWatch™ Installation Manual Document # DO001434 Connect the 14-pin female connector from the OverWatch™ harness...
  • Page 11 EQUIPMENT SAFETY SYSTEMS Swift TSxxE 75 Naxos Way, Keysborough 3173 Victoria Australia Installation Manual P: +61 3 8770 6555 E: support@eqss.com.au REV 1.2 14/4/2022 Model6253 OverWatch™ Installation Manual Document # DO001434 Remove the PCB coating around the “ELEVATE” pin highlighted in white with a sharp object to allow solder to flow.
  • Page 12 EQUIPMENT SAFETY SYSTEMS Swift TSxxE 75 Naxos Way, Keysborough 3173 Victoria Australia Installation Manual P: +61 3 8770 6555 E: support@eqss.com.au REV 1.2 14/4/2022 Model6253 OverWatch™ Installation Manual Document # DO001434 Install the red wire form the OverWatch™ harness to the screw terminal of the E-stop labelled “1”.
  • Page 13 EQUIPMENT SAFETY SYSTEMS Swift TSxxE 75 Naxos Way, Keysborough 3173 Victoria Australia Installation Manual P: +61 3 8770 6555 E: support@eqss.com.au REV 1.2 14/4/2022 Model6253 OverWatch™ Installation Manual Document # DO001434 Thread the cable of the laser module through the...
  • Page 14 EQUIPMENT SAFETY SYSTEMS Swift TSxxE 75 Naxos Way, Keysborough 3173 Victoria Australia Installation Manual P: +61 3 8770 6555 E: support@eqss.com.au REV 1.2 14/4/2022 Model6253 OverWatch™ Installation Manual Document # DO001434 Position the cut-out for the speaker on the right- hand side.
  • Page 15 EQUIPMENT SAFETY SYSTEMS Swift TSxxE 75 Naxos Way, Keysborough 3173 Victoria Australia Installation Manual P: +61 3 8770 6555 E: support@eqss.com.au REV 1.2 14/4/2022 Model6253 OverWatch™ Installation Manual Document # DO001434 Connect the 8-pin connector from the operator sensor module and the 12-pin connector from the OverWatch™...
  • Page 16 EQUIPMENT SAFETY SYSTEMS Swift TSxxE 75 Naxos Way, Keysborough 3173 Victoria Australia Installation Manual P: +61 3 8770 6555 E: support@eqss.com.au REV 1.2 14/4/2022 Model6253 OverWatch™ Installation Manual Document # DO001434 Push the excess cable from the sensor back in the unit and tighten the cable gland.

  • Page 17: Post Installation Configuration

    EQUIPMENT SAFETY SYSTEMS Swift TSxxE 75 Naxos Way, Keysborough 3173 Victoria Australia Installation Manual P: +61 3 8770 6555 E: support@eqss.com.au REV 1.2 14/4/2022 Model6253 OverWatch™ Installation Manual Document # DO001434 Post Installation Configuration Overview After the OverWatch™ has been installed it must be configured with the parameters to suit the machine. Follow the instructions below to configure the OverWatch™.

  • Page 18: Machine Model Selection

    EQUIPMENT SAFETY SYSTEMS Swift TSxxE 75 Naxos Way, Keysborough 3173 Victoria Australia Installation Manual P: +61 3 8770 6555 E: support@eqss.com.au REV 1.2 14/4/2022 Model6253 OverWatch™ Installation Manual Document # DO001434 Machine Model Selection Follow the instructions below to configure the OverWatch™.

  • Page 19: Installation Test

    EQUIPMENT SAFETY SYSTEMS Swift TSxxE 75 Naxos Way, Keysborough 3173 Victoria Australia Installation Manual P: +61 3 8770 6555 E: support@eqss.com.au REV 1.2 14/4/2022 Model6253 OverWatch™ Installation Manual Document # DO001434 Installation Test After the model configuration has been set or updated an Installation Test must be performed. This will ensure the installation has been correctly performed and the OverWatch™...

  • Page 20: Set Date And Time

    EQUIPMENT SAFETY SYSTEMS Swift TSxxE 75 Naxos Way, Keysborough 3173 Victoria Australia Installation Manual P: +61 3 8770 6555 E: support@eqss.com.au REV 1.2 14/4/2022 Model6253 OverWatch™ Installation Manual Document # DO001434 Set Date and Time Date and time should be set accordingly. The date and time can be set on the log page. This page allows adjustment of the system’s real time clock and calendar if required.

  • Page 21: Change Model Configuration

    To reconfigure the OverWatch™ for a different model requires an authorisation password to be supplied by a service manager. The authorisation password is generated from the EQSS website. The EQSS website requires a login username and password. If you are a service manager and don’t have a username and password, contact EQSS to register.

  • Page 22: System Settings

    EQUIPMENT SAFETY SYSTEMS Swift TSxxE 75 Naxos Way, Keysborough 3173 Victoria Australia Installation Manual P: +61 3 8770 6555 E: support@eqss.com.au REV 1.2 14/4/2022 Model6253 OverWatch™ Installation Manual Document # DO001434 System Settings Default Settings See the sections below for details on each of the Skyjack SJII RT OverWatch™ system default settings.
  • Page 23 EQUIPMENT SAFETY SYSTEMS Swift TSxxE 75 Naxos Way, Keysborough 3173 Victoria Australia Installation Manual P: +61 3 8770 6555 E: support@eqss.com.au REV 1.2 14/4/2022 Model6253 OverWatch™ Installation Manual Document # DO001434 Setting Name Description Default For the drive ADC input, a reading above this indicates adc_drive_threshold the EWP is in drive mode.

  • Page 24: Polarity And Input Style

    EQUIPMENT SAFETY SYSTEMS Swift TSxxE 75 Naxos Way, Keysborough 3173 Victoria Australia Installation Manual P: +61 3 8770 6555 E: support@eqss.com.au REV 1.2 14/4/2022 Model6253 OverWatch™ Installation Manual Document # DO001434 Setting Name Description Default The number of times the trigger needs to be pressed wifi_on_click_count after startup to enter Wi-Fi mode.

  • Page 25: Bypass

    EQUIPMENT SAFETY SYSTEMS Swift TSxxE 75 Naxos Way, Keysborough 3173 Victoria Australia Installation Manual P: +61 3 8770 6555 E: support@eqss.com.au REV 1.2 14/4/2022 Model6253 OverWatch™ Installation Manual Document # DO001434 Bypass Setting Name Description test_cutout_state Test channel enabled for primary cutout...

  • Page 26: As002166 Plug And Play Harness Drawing

    EQUIPMENT SAFETY SYSTEMS Swift TSxxE 75 Naxos Way, Keysborough 3173 Victoria Australia Installation Manual P: +61 3 8770 6555 E: support@eqss.com.au REV 1.2 14/4/2022 Model6253 OverWatch™ Installation Manual Document # DO001434 AS002166 Plug and Play Harness Drawing |26 of...
