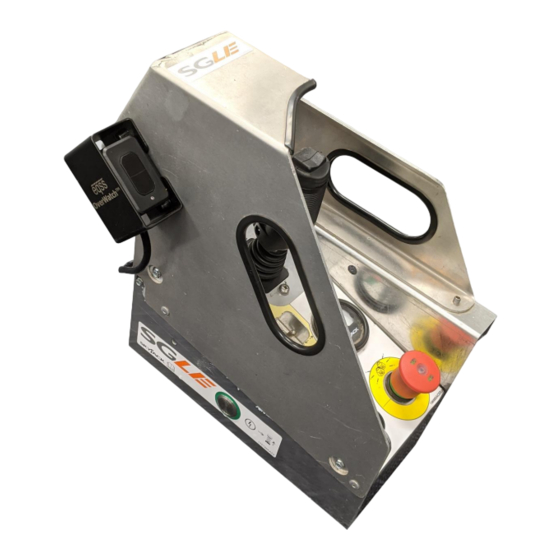

Skyjack mid-size rt scissors silver control box
Hide thumbs Also See for OverWatch 6253:
Table of Contents

Advertisement

Quick Links

Download this manual

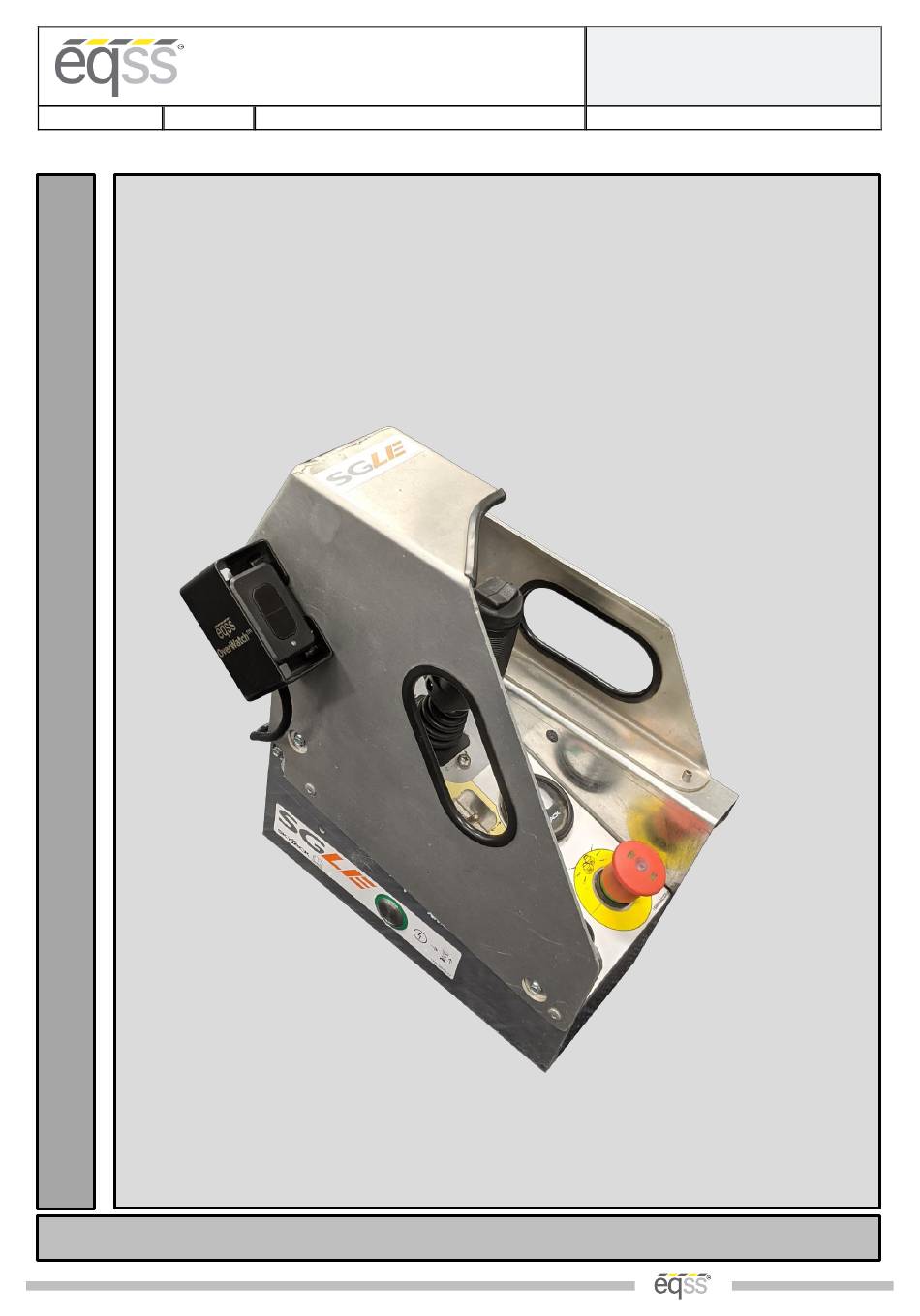

REV 1.3
22/03/2021
EQSS Model6253 – OverWatch™
I
Skyjack Mid-Size RT Scissors
N
Silver Control Box
S
T
A
L
L
M
A
N
U
A
L
Failure to follow this installation manual will void warranty
EQUIPMENT SAFETY SYSTEMS
75 Naxos Way, Keysborough 3173 Victoria Australia
P: +61 3 8770 6555 E: support@eqss.com.au
Model6253 OverWatch™ Installation Manual
Skyjack Mid-Size RT Scissors
Silver Control Box
Installation Manual
Document # DO001300
|1 of
22|
