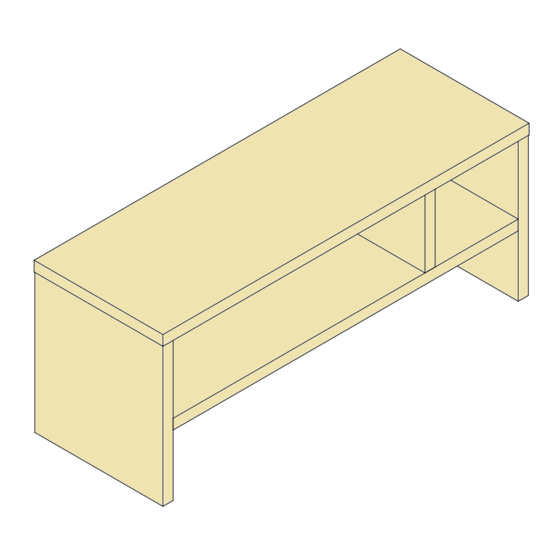

OSCAR TV UNIT
Assembly lnstructions - Please keep for future reference
Dimensions
Width - 108cm
Depth - 38 cm
Height - 44 cm
Important - Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 0345 6400 800
395/3604
426/9098
402/3533
395/6319
Issue 1-16-04-15
Advertisement
Related Manuals for HOME RETAIL GROUP OSCAR 395/3604
Summary of Contents for HOME RETAIL GROUP OSCAR 395/3604
- Page 1 OSCAR TV UNIT Assembly lnstructions - Please keep for future reference 395/3604 426/9098 402/3533 395/6319 Dimensions Width - 108cm Depth - 38 cm Height - 44 cm Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 0345 6400 800 Issue 1-16-04-15...
- Page 2 Safety and Care Advice Check you have all the Assemble the item as close We do not recommend the components and tools listed on to its final position (in the same pages 2 and 3. room) as possible. use of power Remove all fittings from the drill/drivers for Assemble on a soft level...
-
Page 3: Components - Parts
Components - Parts lf you have damaged or missing components. call the Customer Helpline: 0345 6400 800 underside underside Top x 1 shelf x1 (108x38x3cm) (101.8x37.6x3cm) inside Side panel x 2 Divider x 1 (41x37.8x3cm) (37.6x20x3cm) - Page 4 Components - Fittings 0345 6400 800 Metal dowel x 10 Locking nut x 10 Wooden dowel x 12 EVA pad x 4 Sticker x 8 40mm Wood screw x 2 Tools required Phillips screwdriver Ruler/tape measure 100 105 110 115 120 125 130 135 140 145 150 (Not supplied) R uler - Use this ruler to help correctly identify the screws 95 100 105 110 115 120 125 130 135 140 145 150 155 160 165 170...
- Page 5 Assembly Instructions Preparing panels Place divider and shelf flat onto the floor with the fixing holes facing up. Insert wood dowels into panels shown. underside Preparing side panels Place side panels flat on the floor with the fixing holes facing up. Screw metal dowels into panels as shown.
- Page 6 Assembly Instructions Assembling divider With help, assemble divider to shelf using screw underside Assembling side panel Carefully locate one side panel into position. Insert locking nuts into the holes on the underside of shelf Turn locking nuts clockwise to secure. underside...
- Page 7 Assembly Instructions Assembling side panel Repeat Step 4 to assemble the other side panel as shown. Preparing top Place top flat on the floor with the fixing holes facing up. Screw metal dowels into top as shown. Note: Screw metal underside dowels as far as shown.
- Page 8 Warning: The unit is heavy lift with care. If you need help or have damaged or missing parts, call the Customer Helpline: 0345 6400 800 Home Retail Group. 489-499 Avebury Boulevard. Saxon Gate West. Central Milton Keynes. MK9 2NW...
