User's Manual

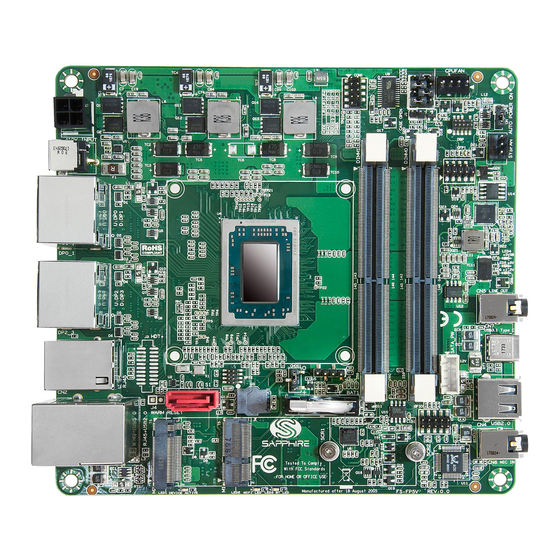

AMD FP6 SOC SFF Mainboard
FS-FP6
TRADEMARK
All products and company names are trademarks or registered
trademarks of their respective holders.
These specifications are subject to change without notice.
Manual Revision 1.0
November 17, 2021

Advertisement

Table of Contents
loading

Related Manuals for Sapphire Audio FS-FP6

Summary of Contents for Sapphire Audio FS-FP6

  • Page 1 User’s Manual AMD FP6 SOC SFF Mainboard FS-FP6 TRADEMARK All products and company names are trademarks or registered trademarks of their respective holders. These specifications are subject to change without notice. Manual Revision 1.0 November 17, 2021...
  • Page 2 Federal Communications Commission (FCC) Statement This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 3 Waste Electrical and Electronic Equipment (WEEE) Statement To protect the global environment, this product must be sent to separate collection facilities for recovery and recycling. DISPOSAL Do not dispose of this product as unsorted municipal waste. Collect such waste separately for special treatment. Manufacturer Sapphire Technology Limited Unit 1909-1919, 19/F., Tower 2 Grand Central Plaza...

  • Page 4: Table Of Contents

    Table of Contents Chapter 1 Introduction ................1 1-1 Mainboard Specifications ..............1 1-2 Mainboard Layout ................4 1-3 Mainboard Dimension ..............6 Chapter 2 Installaion ................8 2-1 Installing System Memory ............... 8 Memory Configuration ..............8 Memory Installation ................. 8 2-2 Installing Expansion Cards .............
  • Page 5 Trusted Computing ................ 23 ACPI Settings ................25 F81803 Super IO Configuration ............ 26 Hardware Monitor ................27 RTC Wake Settings ............... 29 CPU Configuration ................ 30 SATA Configuration ............... 31 PCI Subsystem Settings ..............32 USB Configuration ................ 33 Network Stack Configuration ............

  • Page 6: Chapter 1 Introduction

    Chapter 1 Introduction 1-1 Mainboard Specifications ®  AMD V2000 series APU for FP6 package with Zen 2 core Graphics ®  AMD Radeon Vega graphics series  Supports four independent displays with DisplayPort Port Supported resolution DisplayPort 1.4 3840x2160@60Hz System Memory ...
  • Page 7 SATA Ports  One SATA3 port with 6Gb/s data transfer rate  Supports AHCI (Advanced Host Controller Interface) Onboard LAN ®  Two Gigabit Ethernet from Realtek RTL8111H Gigabit controller Onboard TPM  Supports TPM2.0 from Infineon SLB9670 Onboard Audio ...
  • Page 8  1 x COM header, 2.00mm pitch  1 x GPIO header, 2.00mm pitch  1 x Case Open header, 2.54mm pitch  1 x SMBus header, 2.54mm pitch  1 x SPI header, 1.27mm pitch  1 x USB2.0 4-pin header, 2.54mm pitch ...

  • Page 9: Mainboard Layout

    1-2 Mainboard Layout The following figure shows the location of components on the mainboard. See page 5 for component description. Note: Picture is for reference only, actual board may be slightly different. See next page for details. ~ 4 ~...
  • Page 10 Item Component description Item Component description AMD FP6 APU GPIO Header, 2.00mm pitch DDR4 SO-DIMM *2 Front Panel Header, 2.00mm pitch M.2 E-Key slot for Wifi/BT card COM Header, 2.00mm pitch M.2 M-key for SSD device USB2.0 Header, 2.54mm pitch 4-pin 12V ATX Power CPU Fan Header, 2.54mm pitch (Note)

  • Page 11: Mainboard Dimension

    1-3 Mainboard Dimension PCB size: 147.3 x 139.7mm ~ 6 ~...
  • Page 12 Cooler size: 98 x 71 x 36.5 mm (For V2748 / V2546) Cooler size: 60 x 60 x 36.9 mm (For V2718 / V2516) ~ 7 ~...

  • Page 13: Chapter 2 Installaion

    Chapter 2 Installation 2-1 Installing System Memory This mainboard has two 260-pin SO-DIMM (ECC/Non ECC) sockets for DDR4 memory.  Supports 4GB, 8GB, 16GB and 32GB DDR4 SO-DIMMs up to maximum 64GB.  Supports 1.2v DDR4-2133/2400/2666/2933/3200 DIMMs with dual channel architecture.

  • Page 14: Installing Expansion Cards

    2-2 Installing Expansion Cards The mainboard provides One M.2 Slot E-key with 2230 type with PCIe x1 and USB2.0 for Wifi/BT One M.2 Slot M-key with 2242/2280 storage type with PCIe x4 for SSD M.2 M-key for M.2 SSD LED1: device When the M.2 SSD device is functional, this Green...

  • Page 15: M-Key Slot

    M.2 M-Key Slot To install the M.2 SSD device (type 2242/2280): Please note: for different modules type, need to use corresponding standoff or screw to fasten them. If have a M.2 wifi/bluetooth card (2230), need to install the M.2 2230 first. ...
  • Page 16  Use M.2 2242 only: 1. Remove screw and leave the standoff on nut. 2. Align the notch on the M.2 2242 edge connector with the tab in the slot. Split to Plug the M.2 2242 firmly into the slot at a 20-degree angle, and until it clicks into place.
  • Page 17 Removing Device Caution device  Remove the M.2 wifi/bluetooth card or M.2 SSD at a 20-degree angle. device Please DO NOT pull up the M.2 wifi/bluetooth card or M.2 SSD to avoid  damage to the M.2 slot. ~ 12 ~...

  • Page 18: Connecting Cables And Jumper Settings

    2-3 Connecting Cables and Jumper Settings This section takes you through all the necessary connections on the mainboard. Front Panel Header The front panel header (CFP, 2.00mm pitch) on this motherboard is used to connect the front panel switches and LEDs. PWR_LED Attach the front panel power LED cable to these two pins of the connector.

  • Page 19: Sata3 Connector

    4-pin 12V ATX Power Connector The PW1 power connector is used to provide power to the system. Align the power plug to the connector and press firmly until seated. Definition Note: There are two ways to source power to the board: DC jack or 4-pin ATX power connector.

  • Page 20: Com Header

    COM Header The Serial port header (COM1, 2.00mm pitch) can provide one serial port via an optional COM port cable. Definition Note: The pin definition of header and standard DB9 male pin out is different. Empty GPIO Header There is a GPIO (General-purpose input/output) header (2.00mm pitch) on the motherboard.

  • Page 21: Smbus Header

    SMBus Header This is a SMBus interface header (2.54mm pitch). Definition +3.3V Standby SMBus CLOCK SMBUS DATA SPI Header The SPI header (1.27mm pitch) is for SPI signal interface. Definition Definition SOLD Fan Headers There are two headers (CPUFAN and SYSFAN, 2.54mm pitch) on the motherboard.

  • Page 22: Rs422/Rs232/Rs485 Mode Select Jumper

    RS422/RS232/RS485 Mode Select Jumper You can use JP1/JP2/JP3 (2.54mm pitch) to select among RS-232/485/422 modes for COM1 port. The default setting is RS-232 Mode RS422 RS232 (Default) RS485 Slew Speed Select Jumper Adjustable Slew Rate for Minimize EMI Error. A slew rate control pin configures driver outputs for either high data rate or slew-controlled data rates.

  • Page 23: Clear Cmos Jumper

    Clear CMOS Jumper This mainboard contains a jumper (CMOS1, 2.54mm pitch) that can clear CMOS data. If the CMOS data becomes corrupted or you forgot the supervisor or user password, clear the CMOS data to reconfigure the system back to the default values stored in the ROM BIOS.

  • Page 24: Led Status Indicators

    2-4 LED Status Indicators This mainboard provides three LEDs to indicate the system’s status.  STANDBY LED (LED4, Blue): When the System is in Standby Mode, this LED is on. This LED will remain on as long as the motherboard is receiving constant power.

  • Page 25: Chapter 3 Configuring The Bios

    Chapter 3 Configuring the BIOS This chapter provides information on the BIOS Setup program and allows you to configure the system for optimum use. 3-1 Select Boot Device Select Boot Device Menu allows you to set the first boot device without entering BIOS Setup.
  • Page 26 Users are welcome to download the latest BIOS version from our official website. Control Keys Please check the following table for the function description of each Control key. Control Key(s) Function Description  /  Moves cursor left or right to select screens ...

  • Page 27: Main Menu

    3-3 Main Menu When entering the Aptio Setup Utility, the main menu screen appears. This main menu includes the system overview and displays the basic system configuration, such as BIOS information, memory size and system date/time. Aptio Setup Utility - Copyright (C) 2021 American Megatrends, Inc. Setup Main Advanced...

  • Page 28: Advanced Menu

    3-4 Advanced Menu The Advanced menu items allow you to change the settings for the CPU, USB and other system devices. Press <Enter> to display the configuration options. Aptio Setup Utility - Copyright (C) 2021 American Megatrends, Inc. Setup Main Chipset Security Boot...
  • Page 29 Security Device Support Enables or disables BIOS support for security device. O.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available. When enabled, the related items will appear. Options: Enabled, Disabled. SHA-1 PCR Bank Enable or disable SHA-1 PCR Bank.

  • Page 30: Acpi Settings

    ACPI Settings Aptio Setup Utility - Copyright (C) 2021 American Megatrends, Inc. Setup Advanced ACPI Settings Enables or Disables System ability to Hibernate (OS/S4 Enable Hibernation [Enabled] Sleep State). This option may ACPI Sleep State [S3 (Suspend to RAM)] not be effective with some APU ACPI Shutdown Temperature [Disabled] operating systems.

  • Page 31: F81803 Super Io Configuration

    F81803 Super IO Configuration Aptio Setup Utility - Copyright (C) 2021 American Megatrends, Inc. Setup Advanced F81803 Super IO Configuration Set Parameters of Serial Port 1 (COMA) Super IO Chip F81803 Serial Port 1 Configuration : Select Screen  Select Item Enter: Select +/-: Change Opt.

  • Page 32: Hardware Monitor

    Hardware Monitor Aptio Setup Utility - Copyright (C) 2021 American Megatrends, Inc. Setup Advanced PC Health Status APU Fan Stopped Working Prompt [Disabled] SmartFan Configuration APU Temperature : +42 System Temperature : +34 APUFAN Speed : 2803 RPM : Select Screen ...
  • Page 33 Smart Fan Configuration Aptio Setup Utility - Copyright (C) 2021 American Megatrends, Inc. Setup Advanced SmartFan Configuration Fan Mode Setting APUFan Mode Setting [SmartFan] Highest Fan Speed In Percentage 1st Temperature Threshold ( 2nd Fan Speed In Percentage : Select Screen ...

  • Page 34: Rtc Wake Settings

    RTC Wake Settings Aptio Setup Utility - Copyright (C) 2021 American Megatrends, Inc. Setup Advanced Enable or disable System wake Wake system at specific Time [Disabled] on alarm event. When enabled, System will wake on the Wake System duration after [Disabled] hr::min::sec specified.

  • Page 35: Cpu Configuration

    CPU Configuration Aptio Setup Utility - Copyright (C) 2021 American Megatrends, Inc. Setup Advanced CPU Configuration Enable/disable the generation of ACPI_PPC, _PSS, and _PCT Module Version: RenoirCpu 08 objects. AGESA Version: RenoirPI 1004 PSS Support [Enabled] PPC Adjustment [PState 0] NX Mode [Enabled] : Select Screen...

  • Page 36: Sata Configuration

    CPU Information Displays current processor information. Aptio Setup Utility - Copyright (C) 2021 American Megatrends, Inc. Setup Advanced Socket0: AMD Ryzen Embedded V2748 with Radeon Graphics 8 Core(s) Running @ 2954 MHz 1218 mV Processor Family: 17h Processor Model: 60h-6Fh CPUID: 00860F01 Current Speed:2900 MHZ Min Speed:1400 MHZ...

  • Page 37: Pci Subsystem Settings

    PCI Subsystem Settings Aptio Setup Utility - Copyright (C) 2021 American Megatrends, Inc. Setup Advanced AMI PCI Driver Version: A5.01.19 If system has SR-IOV capable PCIe Devices, this option PCI Settings Common for all Devices: Enables or Disables Single Root SR-IOV Support [Disabled] IO Virtualization Support.

  • Page 38: Usb Configuration

    USB Configuration Aptio Setup Utility - Copyright (C) 2021 American Megatrends, Inc. Setup Advanced USB Configuration Enables Legacy USB support. USB Module Version AUTO option disables legacy support if no USB devices are USB controllers: connected. DISABLED option 2 XHCIs will keep USB devices available USB Devices: only for EFI applications.

  • Page 39: Network Stack Configuration

    controller. ‘Auto’ uses default values: for a Root port it is 100ms, for a Hub port the delay is taken from Hub descriptor. Options: Auto, Manual. Device power-up delay in seconds This item is used to set a wait time in seconds for device power-up delay. Options: 1 ~ 40.

  • Page 40: Csm Configuration

    Ipv6 PXE boot option will not be available. Options: Enabled, Disabled. Ipv6 HTTP Support This item is used to enable or disable the Ipv6 HTTP boot support. If disabled, Ipv6 HTTP boot option will not be available. Options: Enabled, Disabled. PXE boot wait time This item is used to set a wait time in seconds for PXE boot.
  • Page 41 Upon Request: GA20 can be disabled using BIOS services. Always: Do not allow disabling GA20. Option ROM Message Sets display mode for Option ROM. Force BIOS: To force to a BIOS-compatible output. This will show the option ROM messages. Keep Current: To keep the current video mode. This will suppress option ROM messages.

  • Page 42: Nvme Configuration

    NVMe Configuration Aptio Setup Utility - Copyright (C) 2021 American Megatrends, Inc. Setup Advanced NVMe Configuration Samsung SSD 970 EV0 Plus 250GB : Select Screen  Select Item Enter: Select +/-: Change Opt. General Help Previous Values F3/F9: Optimized Defaults F4/F10:Save and Exit ESC: Exit...
  • Page 43 M.2 E-Key Socket (PCIE x1) Allows you to enable or disable the M.2 E-Key Socket. Options: Disabled, Enabled. M.2 M-Key Socket (PCIE x4) Allows you to enable or disable the M.2 M-Key Socket. Options: Disabled, Enabled. HD Audio Azalia Device Allows you to enable or disable the onboard High Definition Audio controller.

  • Page 44: Amd Cbs

    AMD CBS Aptio Setup Utility - Copyright (C) 2021 American Megatrends, Inc. Setup Advanced AMD CBS CPU Common Options CPU Common Options UMC Common Options NBIO Common Options FCH Common Options : Select Screen  Select Item Enter: Select +/-: Change Opt.
  • Page 45 UMC Common Options DDR4 Common Options DRAM Timing Configuration Aptio Setup Utility - Copyright (C) 2021 American Megatrends, Inc. Setup Advanced DRAM Timing Configuration I Accept WARNING - DAMAGE CAUSED BY USE OF YOUR AMD PROCESSOR OUTSIDE OF SPECIFICATION OR IN EXCESS OF FACTORY SETTINGS ARE NOT COVERED UNDER YOUR AMD PRODUCT WARRANTY AND MAY NOT BE CONVERED BY YOUR SYSTEM...
  • Page 46 Common RAS ECC Configuration DRAM ECC Symbol Size Use this option to select the DRAM ECC Symbol Size. Options: x4, x8, Auto. DRAM ECC Enable Use this option to enable/disable DRAM ECC. Auto will set ECC to enable. Options: Enabled, Disabled, Auto. DRAM UECC Retry Use this option to enable/disable DRAM UECC Retry.
  • Page 47 display resolution. Options: 1920x1080 and below, 2560x1600, 3840x2160, Auto. UMA Version Allows you to select the UMA version. Options: Legacy, Non-Legacy, Hybrid Secure, Auto. Audio Configuration DP/HDMI Audio Allows you to enable or disable the Integrated HD Audio Controller. Options: Disabled, Enabled, Auto SMU Common Options System Configuration This item allows you to select the System Configuration.

  • Page 48: Amd Pbs

    AMD PBS Aptio Setup Utility - Copyright (C) 2021 American Megatrends, Inc. Setup Advanced AMD Firmware Version Show all of AMD Firmware Version : Select Screen  Select Item Enter: Select +/-: Change Opt. General Help Previous Values F3/F9: Optimized Defaults F4/F10:Save and Exit ESC: Exit...

  • Page 49: Chipset Menu

    3-5 Chipset Menu The chipset menu items allow you to change the advanced chipset settings. Press <Enter> to display the sub-menu. Aptio Setup Utility - Copyright (C) 2021 American Megatrends, Inc. Setup Main Advanced Security Boot Save & Exit Chipset South Bridge Parameters South Bridge North Bridge...

  • Page 50: North Bridge

    USB Port (CN3 USB2.0 - Down) / USB Port (CN3 USB2.0 - Up) Allows you to enable or disable USB ports. Options: Enabled, Disabled. North Bridge Aptio Setup Utility - Copyright (C) 2021 American Megatrends, Inc. Setup Chipset North Bridge Configuration View Information related to Socket 0 Memory Information...

  • Page 51: Security Menu

    3-6 Security Menu The Security menu allows you to change the system security settings. Aptio Setup Utility - Copyright (C) 2021 American Megatrends, Inc. Setup Main Advanced Chipset Boot Save & Exit Security Password Description Set Administrator Password. If ONLY the Administrator’s password is set, then this only limits access to Setup and is only asked for when entering Setup.
  • Page 52 To set a password, enter it twice and acknowledge by pressing Return. The password must be 1 to 12 characters long. Clear HDD password, please follow these steps: Select Set User Password, and enter original HDD Password. 2. To Clear Password, please input “Enter”. 3.

  • Page 53: Boot Menu

    3-7 Boot Menu The Boot menu is used to configure the boot settings and the boot priority. Aptio Setup Utility - Copyright (C) 2021 American Megatrends, Inc. Setup Main Advanced Chipset Security Save & Exit Boot Boot Configuration Number of seconds to wait for Setup Prompt Timeout setup activation key.

  • Page 54: Save & Exit Menu

    3-8 Save & Exit Menu The Save & Exit menu allows you to load the optimal default values for BIOS, and save or discard your changes to the BIOS items. Aptio Setup Utility - Copyright (C) 2021 American Megatrends, Inc. Setup Main Advanced...

  • Page 55: Chapter 4 Driver Installation

    Chapter 4 Driver Installation After the operating system has been installed, you need to install drivers for this mainboard. The support DVD that came with the motherboard contains necessary drivers and useful utilities that enhance the motherboard features. 4-1 Driver Install Insert the bundled driver DVD into your optical drive and the main menu will be displayed on your PC screen.
