CommScope SYSTIMAX 100BASE-T Instructions

®
SYSTIMAX Solutions

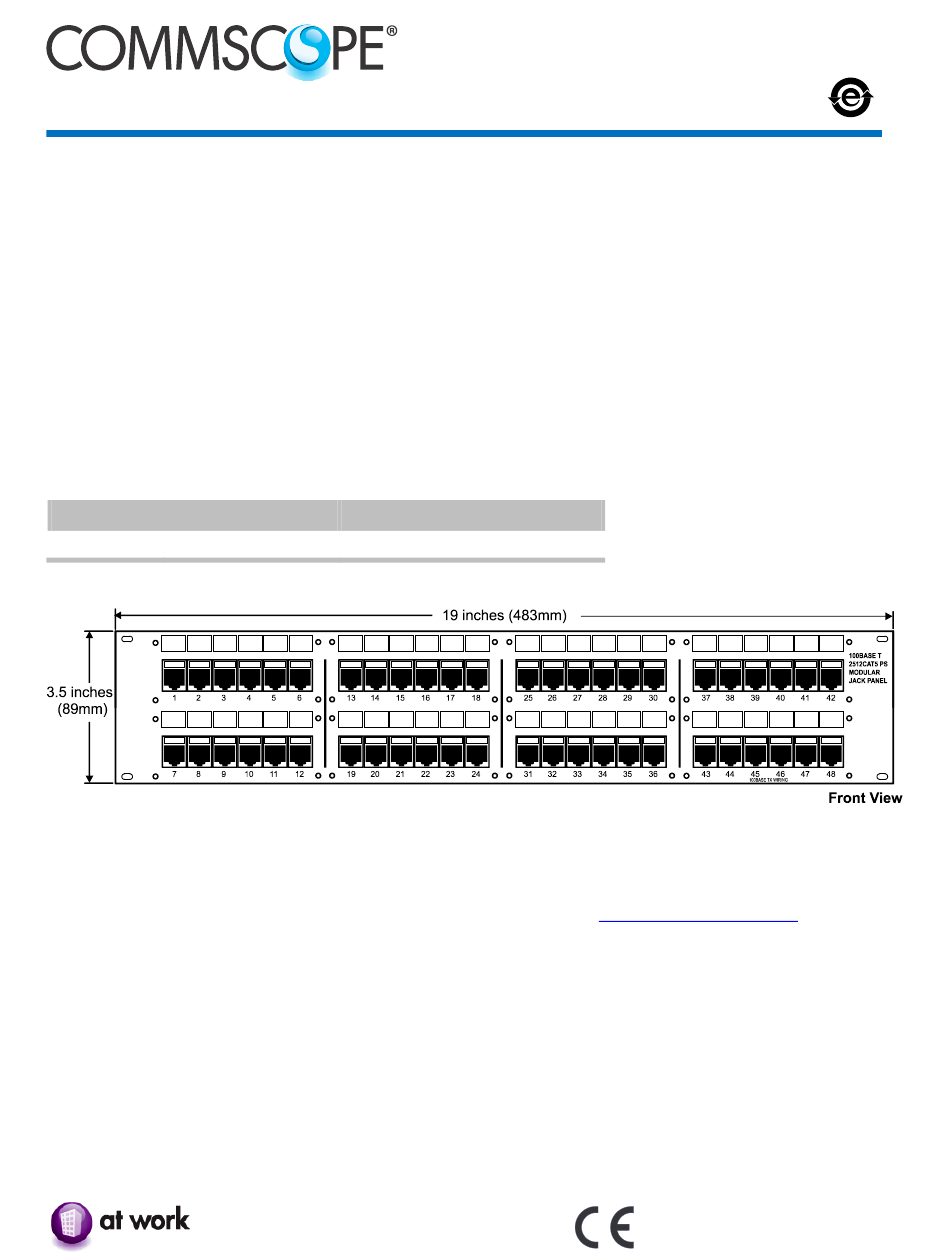

100BASE-T Modular Panel Instructions

General

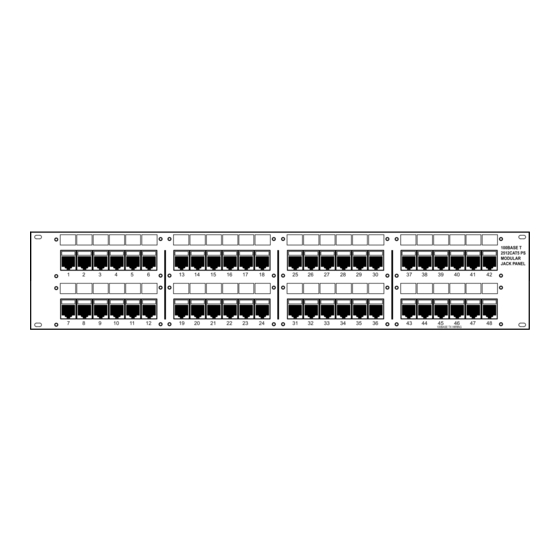

The front panel is equipped with 48 8-pin modular jacks designed to accommodate modular plug-ended jumper
cords. The pin and pair assignments for the modular jacks are shown on the next page.
The rear of the panel is equipped with four RJ-21 type 50-pin jacks, designed to accommodate cables
terminated in the corresponding plug. Two screws are provided with the 180 (525-CP) and the 110 (525-AP)
connectors to secure each individual plug to the panel. The 90 (525-PA) connector is not recommended for this
application. The diagram on the next page shows which pin in the connector serves which modular jack position
(port) on the front of the panel.
Ordering information is listed below:
Material ID Part No.
108236167 2512CAT5PS2-48
How to Contact Us
•
To find out more about CommScope
•
For technical assistance:
-
Within the United States, contact your local account representative or technical support at
1-800-344-0223. Outside the United States, contact your local account representative or
Authorized Business Partner.
-
Within the United States, report any missing/damaged parts or any other issues to
CommScope Customer Claims at 1-866-539-2795. Outside the United States, contact your
local account representative or Authorized Business Partner.
www.commscope.com
100BASE-T modular panel
®
products, visit us on the web at
© 2012 CommScope, Inc. All rights reserved
Description
http://www.commscope.com/
Instruction Sheet 848114575
Issue 8, December 2012
