CommScope NETCONNECT 1479542-1 Instruction Sheet

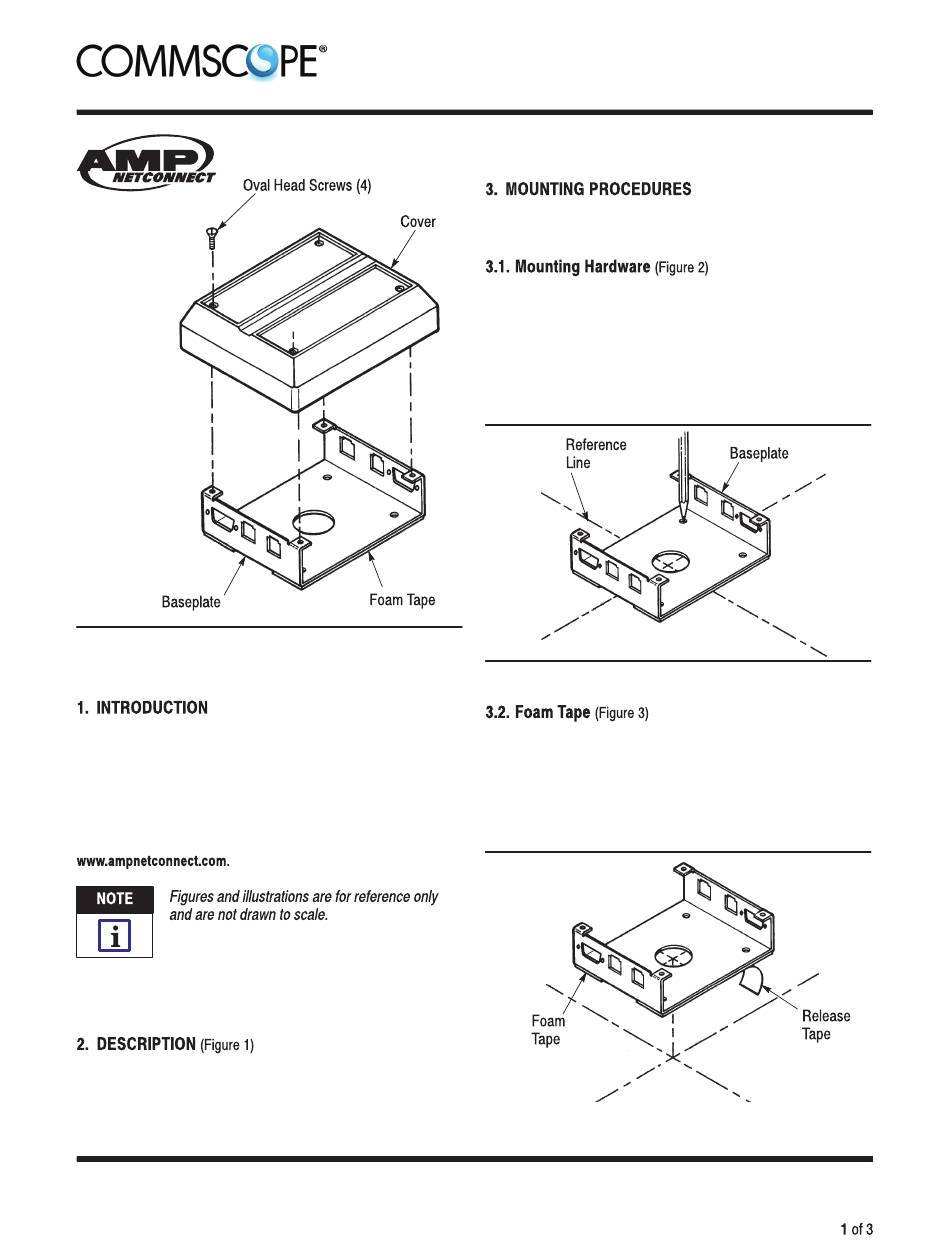

Figure 1
This instruction sheet provides installation procedures
for NETCONNECT Undercarpet Multimedia Dual
Data Kit 1479542–1.
To obtain information on NETCONNECT products,
call Product Information at the number at the bottom
of this page, or visit the NETCONNECT website at
Reason for revision is given in Section 3, REVISION
SUMMARY.
The NETCONNECT Undercarpet Multimedia Dual
Data Kit consists of a cover, a baseplate, and four
oval–head screws to use when mounting the cover.
Foam tape is attacked to the underside of the
To obtain information CommScope® products, visit our website at
http://www.commscope.com/SupportCenter/TechnicalSupport.aspx
NETCONNECT® Undercarpet
Multimedia Dual Data
Kit 1479542-1
baseplate. This kit can be used for undercarpet
applications and underfloor duct systems.
The baseplate can be mounted using one of two
methods (mounting hardware/foam tape).
If using mounting hardware (customer supplied),
proceed as follows:
1. Center baseplate on reference line and mark
hole locations.
2. Drill holes to accept mounting hardware.
3. Vacuum debris. Insert hardware.
If using foam tape, proceed as follows:
1. Vacuum debris.
2. Peel back the release paper on the tape.
3. Position baseplate in desired location. Press
firmly to secure.
