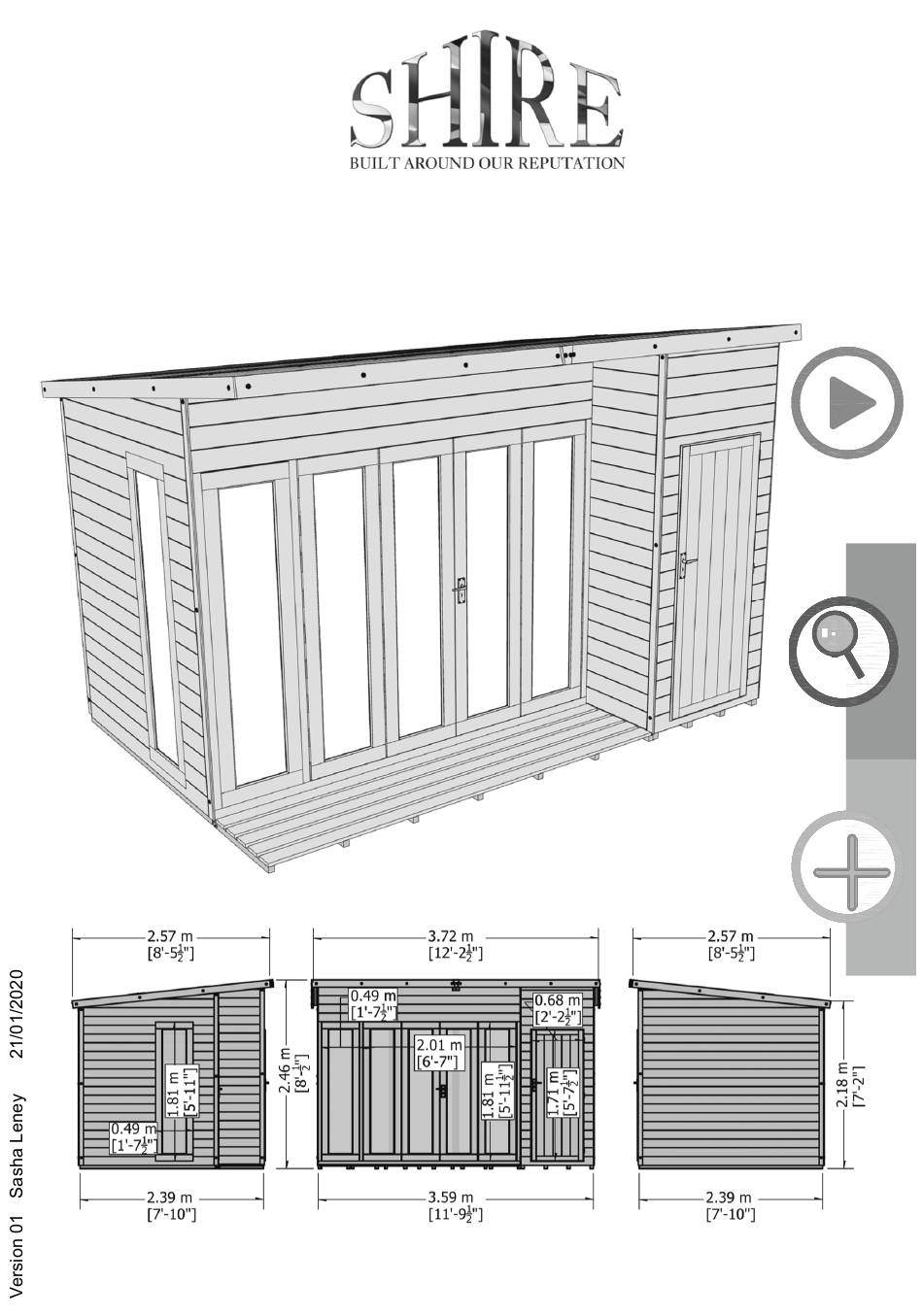

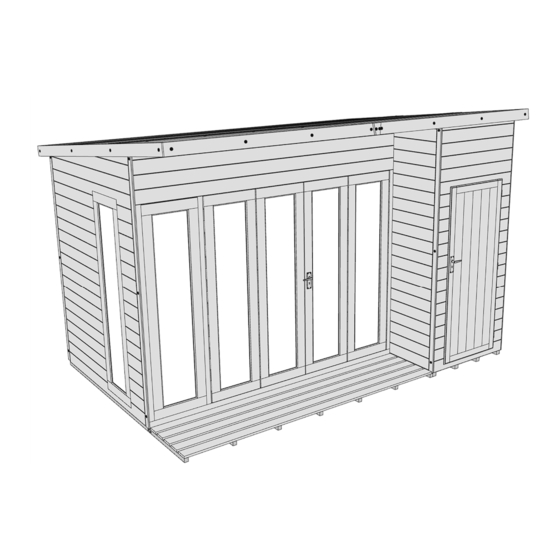

- Page 1 Mass: 487.7 kg © 12x8 Aster 2020 These instructions are for your safety. Please read through them thoroughly before use. PLEASE KEEP THIS LEAFLET FOR FUTURE REFERENCE...
-
Page 2: Table Of Contents
Let’s get started... Important information... Safety Preparation of base Warranty Care, maintenance & Recycling In more detail... Parts List Fascia & Nail List Detailed Technical Drawing 08-09 Hardware Chart Before you start Assembly Instructions 12-22 For a copy of the instructions or a copy in another language please send an email or write to the address below. -
Page 3: Safety
Safety Check that you have noted all the following instructions: We advise the use of non slip protective gloves throughout the assembly process. We advise the use of steel capped protective footwear throughout the assembly process. We advise that you use a helper to hold the glass in position whilst you nail the beading in place. -
Page 4: Preparation Of Base
Base and Warranty Preparation of base... We recommend that the base onto which your building will stand should be at least 75mm larger in each direction than the total floor size of the building. Actual floor area of the building: 3590mm x 2390mm ... -
Page 5: Care, Maintenance & Recycling
Care, Maintenance and Recycling The 5 golden rules of care: Ensure your base is level and firm. Ensure the building is not sitting directly on the ground using damp proof membrane or the optional timber base. Ensure every piece of timber and surface, especially that is hidden upon assembly, is treated with a top quality wood preservative at least twice (before assembly). -
Page 6: Parts List
Description Stacked Parts List (part No ) - Qty... -
Page 7: Fascia & Nail List
Description Stacked, Fascia and Nail Bag Parts List (part No ) - Qty... -
Page 10: Hardware Chart
Nail bag contents Description (part No ) - Qty Hardware Chart Scale 1:1 Building Photographs 13mm 13mm Felt Nail (A0023) x 145 It will be greatly appreciated if you could forward images of your completed building to - sales@shiregb.co.uk. 16mm Panel pin (A0024) x 108 40mm Round Head Nail (A0025) x 50... -
Page 11: Before You Start
Before you start... Things to check before you start: Ensure your base is ready – See page 4. Check all parts as listed in the parts lists. Read the instructions fully before starting work. Follow all the health and safety guidelines. When you see the drill icon Only ever drill through the first piece of framework which will be a... -
Page 12: Assembly Instructions
Assembly instructions: These instructions are for your safety. Please read through them thoroughly before use. Treat all the parts before assembly – see page 5! GB-IE The “Panel Layout” is showing you how to position the panels. The Pent Panels FIT INSIDE THE DOOR AND PLAIN PANELS! NOTE Some holes drilled for... - Page 13 Drill the Verandah Floor (A2164) as shown below. Fix to the Shed Floor with 60mm Screws (A0035). GB-IE Then fix with the Joining Plate 62x15 (A2182) with 2x 25mm Screws (A0032) on the opposite side, so it is secure to the Floor Panel. Verandah Floor (A2164)x01 Joining Plate 62x15...
- Page 14 Drill the LH Plain Panel (A2166) and the RH Plain Pent (A5602) as shown below. Make sure that the GB-IE bottom two holes in the back panel are in line with the floor bearers when drilling. Place the Plain Panel into the corner of the floor and push the Pent up to it and fix with 60mm Screws (A0035).
- Page 15 Drill the RH Plain Panel (A2166) so that the bottom holes are inline with the floor bearers and fix to the GB-IE other back panel with 2x 60mm Screws (A0035). Note: Make sure the side holes are drilled at and angle. RH Plain Panel (A2166)x01 60mm Screws...
- Page 16 Drill the Partition Pent (A5605) as shown below. GB-IE Fix with 6x 60mm Screws (A0035) using the pilot holes drilled to create the shed compartment, making sure the framework is facing inwards. Partition Pent (A5605)x01 60mm Screws (A0035)x06 Drill the LH Window Pent (A5603) as shown below. Fix to the Plain Panel using 3x 60mm GB-IE Screws (A0035).
- Page 17 Open the doors in the Bi-Fold Door Panel (A5607) and drill as shown below, making sure the GB-IE bottom holes are inline with the floor bearers. Then screw to your building using the pilot holes in the Door and Window Pent. NOTE Some holes drilled for...
- Page 18 Drill the LH Roof Panel (A5615) as shown below. Place onto the left hand side of your building with the GB-IE drill side facing in the middle. Place on the RH Roof Panel (A5615) and fix with 60mm Screws (A0035) using the pilot holes drilled.
- Page 19 Make sure your building is square and true. GB-IE Fix the walls into the floor with 60mm Screws (A0035) using the pilot holes drilled previously. 60mm Screws (A0035)x16 Fix the three Coverstrips 12x56x2130(A2180) to the back of your building with 3x 40mm Nails (A0025) GB-IE in each.
- Page 20 3 Strips of 3.8M Felt (A2175) have been supplied. GB-IE Fit the first piece of felt so that there is an even overhang front and back. Pull tight and secure with 13mm Felt Nails (A0023) approximately 100mm apart. Repeat with the middle strip of felt as below. 3.8M Felt Strip (A2175)x02 13mm...
- Page 21 GB-IE Continue with the last piece of 3.8M Felt (A2175). Make sure there is an even overhang front and back and secure with 13mm Felt Nails (A0023). Tidying the corner 3.8M Felt Strip (A2175)x01 13mm 13mm Felt Nails (A0023)x50 Fix the two Fascia 19x95x2591 (A5619) to the sides of the building using 4x40mm Nails (A0025) in GB-IE each.
- Page 22 GLASS HANDLE WITH CARE, DANGER OF CUTTING. USE SAFETY EQUIMENT. GB-IE Using gloves, carefully fit the Acrylic (A2192) within the frames. Then fit the 1636 Beading (A2193) and 321 Beading (A2194) with 6x16mm Panel Pins (A0024) per long side and 3 per short side. 322x1632 Acrylic (A2192)x06 1636 Beading...
