Shire Alderney Apex Assembly

BUI BUILT AROUND OUR REPUTATION T AROUND OUR REPUTATION

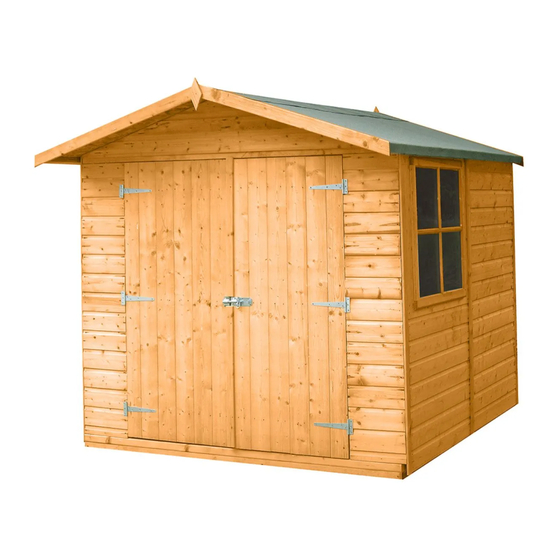

Completed Alderney Apex

Tools Required

Posidrive screwdriver (electric is best)
●
Drill, 6mm drill bit and 8mm drill bit
●
Hammer
●
Sandpaper (to smooth any rough edges)
●
Cutting knife
●
Tape measure
●
Step ladder
●
Ruler
●
Pencil
●
Saw
●

IMPORTANT!

PLEASE READ PRIOR TO ASSEMBLY OF
THE BUILDING
EVERY PRECAUTION IS TAKEN TO
ENSURE THAT YOUR BUILDING HAS NO
ELEMENT INCORRECTLY PLACED OR
POSSIBLY HAZARDOUS, HOWEVER
PRIOR TO USE PLEASE CHECK ALL
SURFACES FOR THE FOLLOWING:
1 RAISED GRAIN, SPLINTERS: sand
down timber to smooth finish
2 NAIL/SCREW/PIN HEADS PROUD: tap
home to be flush with surface of timber
3 DAMAGED SCREW HEADS
RESULTING IN SHARP SPLINTERS OF
METAL: replace
4 SHARP ENDS OF NAILS/ SCREWS/
PINS PROTRUDING THROUGH THE
PANEL: remove and reposition.
5 ENSURE ALL PARTS ARE SECURED
AGAINST REASONABLE FORCE:
remove and refit
6 ENSURE THERE ARE NO LOOSE
PARTS: remove and refit/discard
WE RECOMMEND THAT PROTECTIVE
GLOVES BE WORN THROUGHOUT
PLEASE NOTE
Wood is a natural product and is therefore
prone to changes in appearance, including
some warping, movement and splitting,
particularly during unusual climatic conditions
(long hot or wet spells of weather). As a natural
occurrence this is not covered by a guarantee.
Assembly of Alderney Apex
Thank you and congratulations on the purchase of your Shire Garden Building. We believe
that this product will give you many years of excellent service. This is a natural product
manufactured to a high standard therefore if you have any queries or experience any
difficulties then please contact our customer service hotline on 01945 465295.

Preparation of Base

We recommend that the base onto which your building will stand should be at least
75mm larger in each direction than the total floor size of the building.
Actual floor area of the building: 1980 x 2050mm
Total height clearance: 2140mm
The chosen position in your garden for the siting of the building should be excavated to
a depth of 75mm to allow a base of sand, on to which paving slabs can be evenly laid -
THEY MUST BE LEVEL AND FIRM.

Treatment/Care of your Garden Building

Treat with a suitable decorative wood finish immediately. We recommend that all timber
pieces be treated again prior to assembly and again within 3 months of assembly. We
further recommend that all pieces are treated again at least annually or as frequently as
the instructions on the product used recommends.
We would suggest that all wall panels be treated in an upside-down position to allow the
finish/treatment to ingress into the tongue and groove jointing.
We would also remind you that you would rarely (if ever) be able to re-treat the
underside of the floor following assembly. We strongly recommend that the underside of
the floor is treated an absolute minimum of twice (not including pre-treatment).
K1
K
B3
B4
L1
B1
E
D
D1

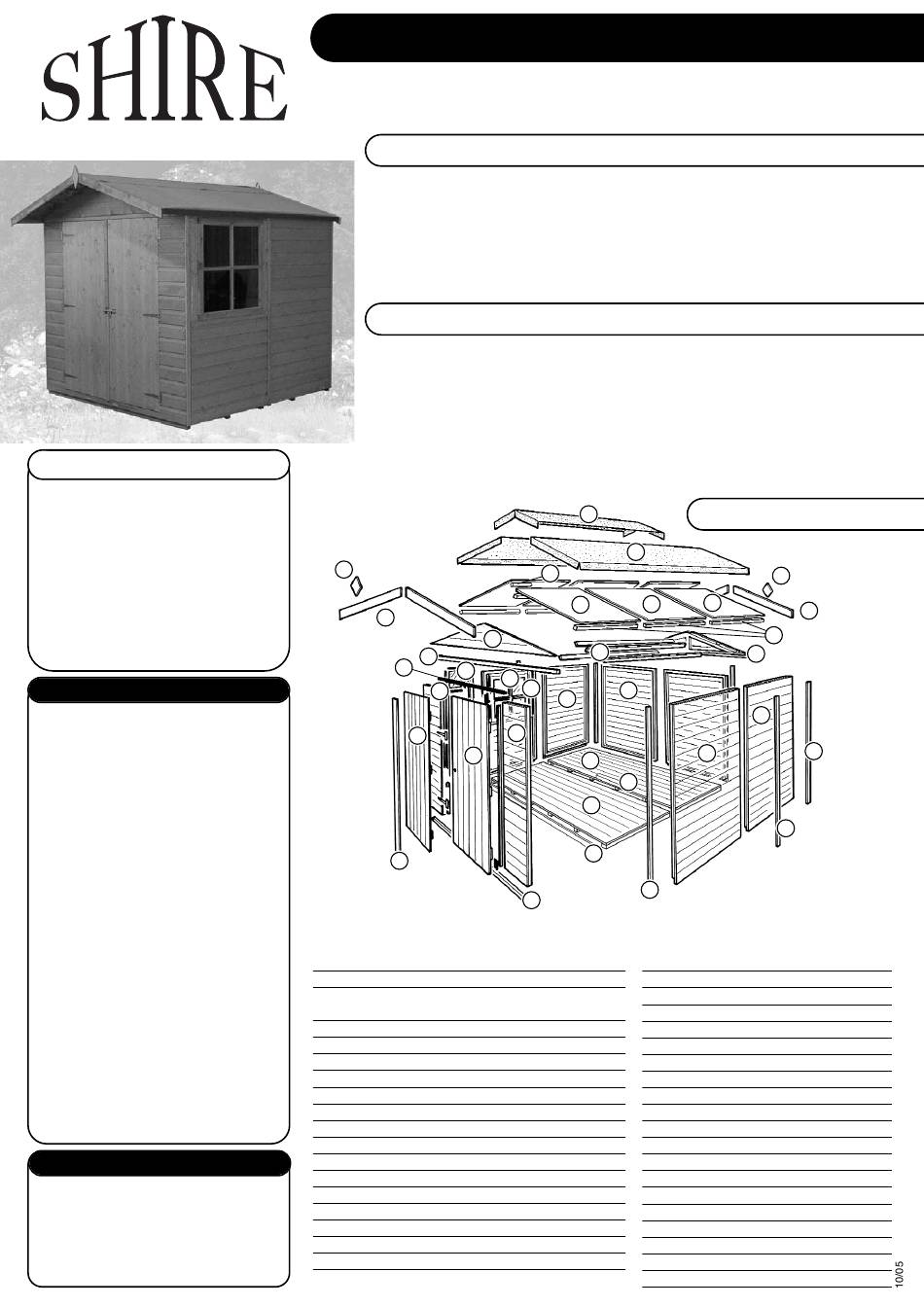

PLEASE LAY OUT PARTS AND CHECK OFF AGAINST CHECK LIST BELOW:
QTY DESCRIPTION
2 Floor panels
2 Framework 34x46x1980 mm (floor edge)
5 Framework 34x46x345 mm
(between floor joists)
5 Large Plain Side Panels
2 Small Plain Panels (wings)
2 Framework 44x44x1980
3 Door Stop Strips
1 Window Panel
1 Window frame insert
1 RH Door
1 Door cover strip
1 LH Door
2 Gable Sections
4 Roof bearers 34x34x2070 mm
6 Roof panels
6 Roof edge framework
2 Roof short bearers
7 Coverstrips
J
J
H3
H
H
F
G
C1
C
B
B
B1
A
A2
A
A1
I
B3
QTY DESCRIPTION
A 1 Roll felt 5 mtr long x 1 mtr wide
A1 1 Roll felt 2.5 mtr long x 0.5 mtr wide J
4 Plain facia
A2 2 Diamonds
B
4 Panes Glazing material
B1
16 Beading
B3
2 Window hinges
B4
1 Casement stays
C
2 Casement stay pins
C1 6 Door hinges
D 2 Bolts
D1 1 Padbolt & Housing
E 73 25 mm screws
F 60 60 mm screws
G 2 80 mm screws
H 182 40 mm nails
H2
8 10 mm screws
H3
2 60 mm nails
I
130 Felt nails
32 Panel pins
©

Parts List

K1
H
K
H2
F
B
I
B
I
K1
L1
J
K
L
